Tractor · 1976Unverified

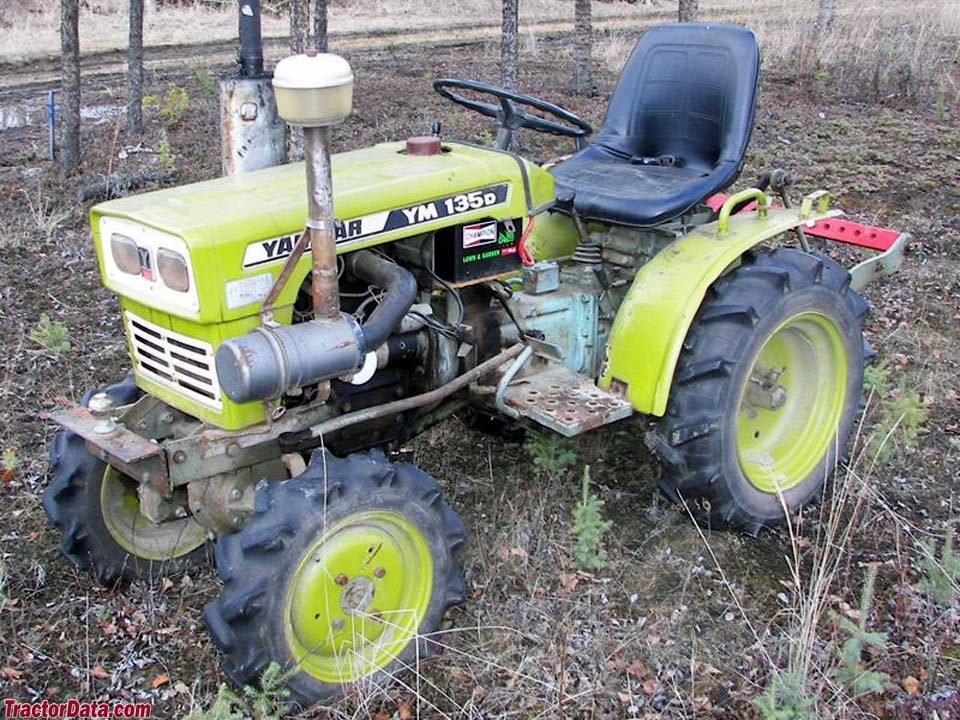

Yanmar YM135
Yanmar YM135 — Sub-Compact Utility tractor · 13 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
13 hp
Weight
991 to 1090 pounds
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Sub-Compact Utility tractorReference
Original price was $4,400 in 1979Reference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Manual steeringReference
Mechanical drum brakesReference
Open operator station.Reference
Variants
YM1352WDReference
YM135D4WDReference
Engine
Yanmar 0.6L 2-cyl dieselReference
Engine9.7 kWReference
Yanmar 2T73AReference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement0.6 LReference
Bore/Stroke73 x 75 mmReference
Power9.7 kWReference
Compression23:1Reference
Rated RPM2700Reference
Torque34.3 NmReference
Torque RPM2400Reference
Starter volts12Reference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
PTO & Hydraulics
Typeopen centerReference
Pump flow14.4 lpmReference
Rear TypeIReference
Rear lift548 kgReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2540Reference
Engine RPM770@2540Reference
Front PTOindependentReference
ClutchelectricReference
Dimensions
2WD Wheelbase116 cmReference
4WD Wheelbase124 cmReference
Weight991 to 1090 poundsReference
Front tire4.50-10Reference
2WD Rear tire7-16Reference
Weight322 kgReference
2WD Standard tires (ag)Front: 4.50-10. Rear: 7-16Reference
4WD Standard tires (ag)Front: 5-12. Rear: 7-16Reference
Lawn/turf front20x8.00-10Reference
Lawn/turf rear27x8.50-15Reference
2WD Length232 cmReference
4WD Length236 cmReference
Width89 cmReference
2WD Weight449 kgReference
4WD Weight494 kgReference
Ground clearance24 cmReference
2WD Front tread67 cmReference
4WD Front tread74 cmReference
Rear tread59 to 80 cmReference
Steering wheel113 cmReference
Yanmar YM135 attachments
45" mid-mount mower deckReference
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
45" mid-mount mower deckReference
Front-end loaderReference
BackhoeReference
45" Mower deck
Typemid-mount Yanmar YMM-45Reference
Type2-blade with hydraulic liftReference
Cutting width114 cmReference
Overall width137 cmReference
Cut height2 to 12 cmReference
Yanmar YBH-650 Backhoe
Backhoe typeYanmar YBH-650 BackhoeReference
Transport height154 cmReference
Bucket width22 cmReference
Bucket width33 cmReference
Bucket width40 cmReference
Bucket width48 cmReference
Digging depth185 cmReference
Reach from pivot254 cmReference
Loading height152 cmReference
Swing Arc180°Reference
Bucket force1088 kgReference
Yanmar YM135 Height
2WD Hood95 cmReference
4WD Hood99 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
