Tractor · 1979Unverified

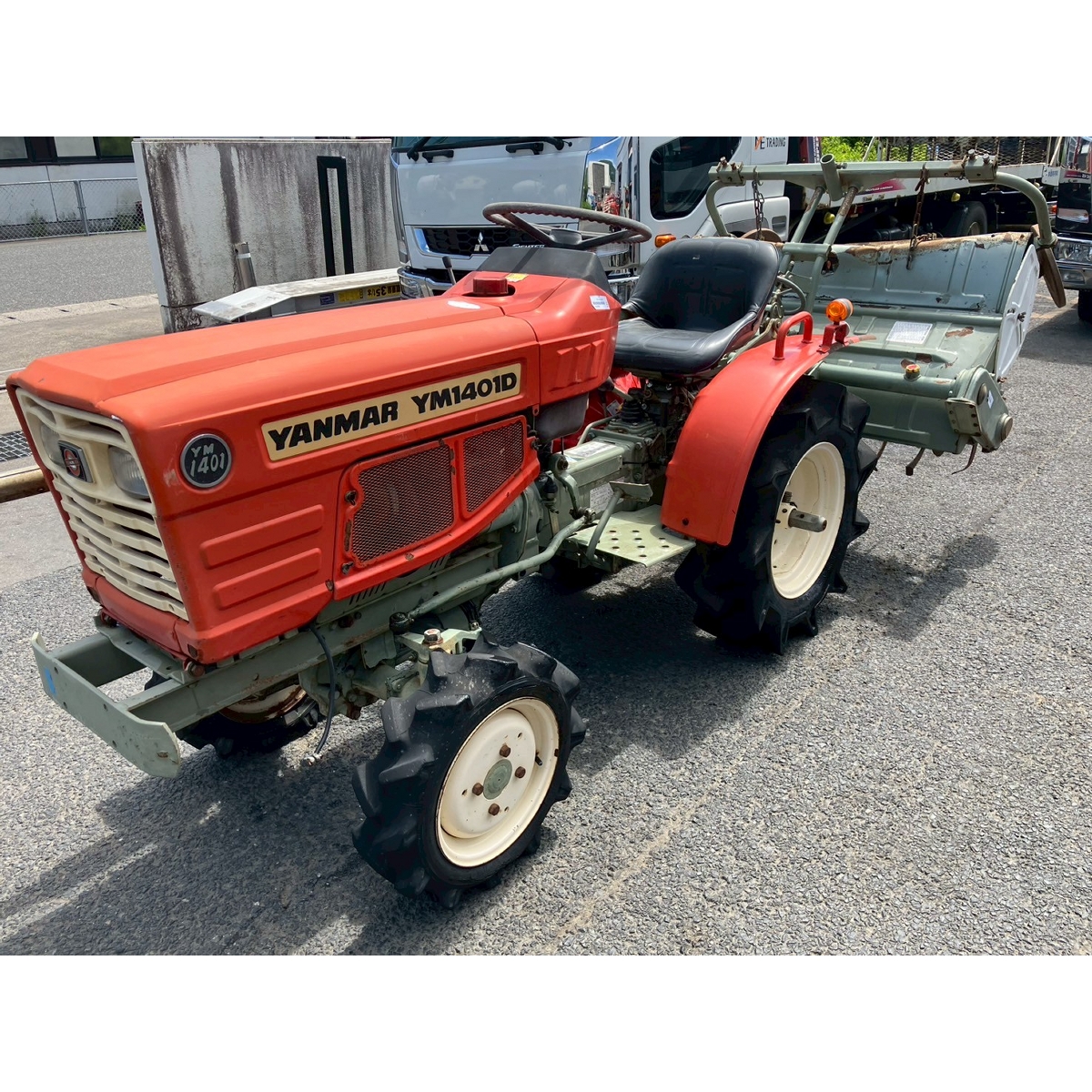

Yanmar YM1401
Yanmar YM1401 — Compact Utility tractor · 14 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
14 hp
Weight
1080 to 1168 pounds
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
YM14012WDReference
YM1401D4WDReference
Engine
Yanmar 0.9L 3-cyl dieselReference
Engine10.3 kWReference
Yanmar 3T72SBReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement0.9 LReference
Bore/Stroke72 x 72 mmReference
Power10.3 kWReference
Rated RPM2400Reference
Starter volts12Reference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
Clutchdry discReference
PTO & Hydraulics
Rear PTO Type540 (1.375)Reference
Engine RPM520@2400Reference
Engine RPM862@2400Reference
Engine RPM1300@2400Reference
Dimensions
Wheelbase125 cmReference
Weight1080 to 1168 poundsReference
Front tire4.50-10Reference
2WD Rear tire8-16Reference
2WD Standard tires (ag)Front: 4.50-10. Rear: 8-16Reference
4WD Standard tires (ag)Front: 5-12. Rear: 8-16Reference
Length215 cmReference
Width97 cmReference
2WD Height174 cmReference
4WD Height176 cmReference
2WD Weight489 kgReference
4WD Weight529 kgReference
2WD Ground clearance30 cmReference
4WD Ground clearance24 cmReference
2WD Front tread72 cmReference
4WD Front tread74 cmReference
Rear tread72 to 88 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH45Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
