Tractor · 1984Unverified

Yanmar YM147

Name: Yanmar YM147
Brand: Yanmar

Yanmar YM147 — Sub-Compact Utility tractor · 11 hp. Reference specifications; pending source verification.

The Yanmar YM147 is a tractor model with a rated power of 11 hp, placing it at the lighter end of its class. It was manufactured from 1984 to 1992 and features a 2-cylinder diesel liquid-cooled engine. The tractor has a four-wheel drive system with a powershift transmission and an operating weight of 1111 to 1204 pounds. It is suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

11 hp

Weight

1111 to 1204 pounds

Catalogue coverage

Variants represented

Richest spec table

63 rows

Recorded power

11 hp

Recorded weight

503 kg

Transmissions

6-speed two-speed power shift

Production years

1984-1992

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerYanmarReference

Sub-Compact Utility tractorReference

Original price was $7,500 in 1992Reference

Two- or four-wheel driveReference

Mechanical shoe brakesReference

Open operator station. Two-post ROPS available.Reference

Variants

YM1402WD gear shiftReference

YM140D4WD gear shiftReference

YM1472WD power shiftReference

YM147D4WD power shiftReference

Engine

Yanmar 0.6L 2-cyl dieselReference

Fuel tank15.9 LReference

Engine10.4 kWReference

Yanmar 2T75UAReference

dieselReference

2-cylinderReference

liquid-cooledReference

Displacement0.6 LReference

Bore/Stroke75 x 72 mmReference

Power10.4 kWReference

Rated RPM2600Reference

Starter volts12Reference

Transmission

6-speed two-speed power shiftReference

Typetwo-speed power shiftReference

Gears6 forward and 3 reverseReference

Clutchdry discReference

Two power shift gears, plus reverse, in three ranges.Reference

PTO & Hydraulics

PTO (claimed)8.1 kWReference

Typeopen centerReference

Pump flow12.9 lpmReference

Rear TypeIReference

Rear lift (at ends)400 kgReference

Rear lift (at 24"/610mm)350 kgReference

Rear PTOtransmissionReference

Clutchoverrunning clutchReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@2356Reference

Front PTOindependentReference

ClutchelectricReference

Dimensions

Wheelbase134 cmReference

Weight1111 to 1204 poundsReference

Front tire4.00x12Reference

2WD Rear tire8x16Reference

2WD Standard tires (ag)Front: 4.00x12. Rear: 8x16Reference

2WD Standard tires (ag)Front: 6.9x9. Rear: 8.3x16Reference

4WD Standard tires (ag)Front: 5x12. Rear: 8x16Reference

4WD Standard tires (ag)Front: 5x12. Rear: 8.3x16Reference

Lawn/turf front20.5x8-10Reference

Lawn/turf rear29x12.00-15Reference

Length247 cmReference

2WD Width97 cmReference

4WD Width99 cmReference

2WD Height (steering wheel)122 cmReference

4WD Height (steering wheel)123 cmReference

2WD Weight503 kgReference

4WD Weight546 kgReference

Clearance (drawbar)19 cmReference

2WD Front tread81 cmReference

4WD Front tread81 cmReference

Rear tread74/80/85 cmReference

Yanmar YM147 attachments

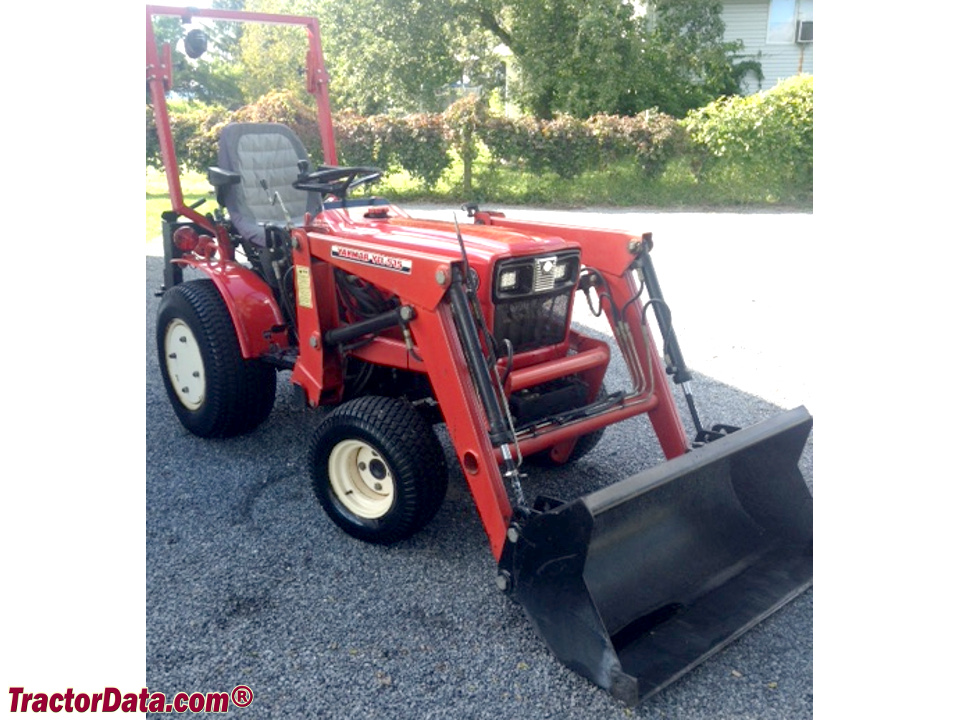

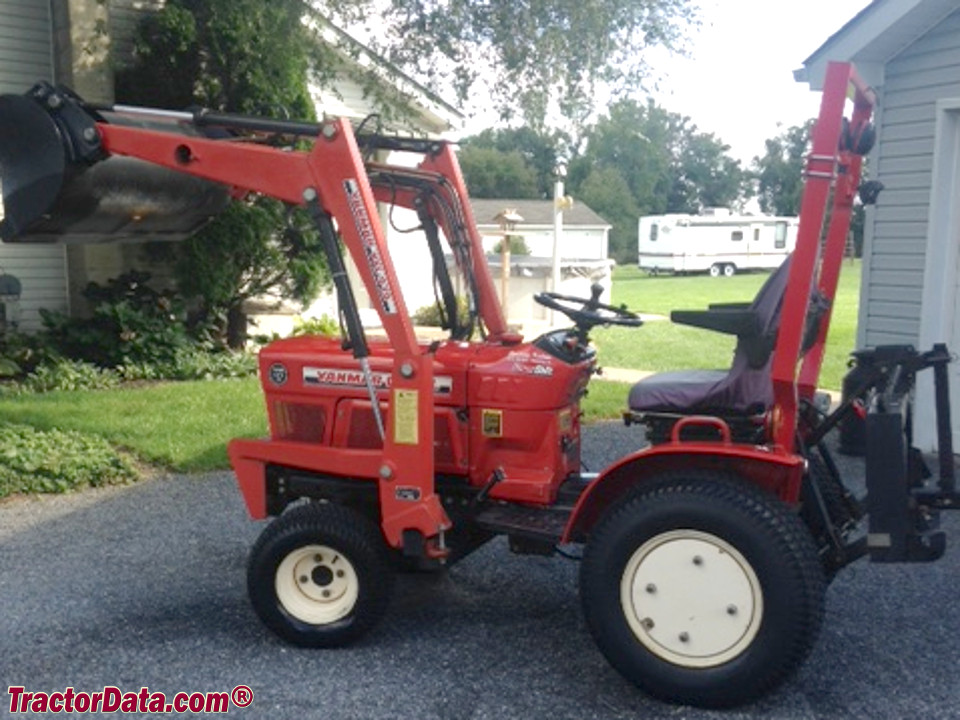

front-end loaderReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
