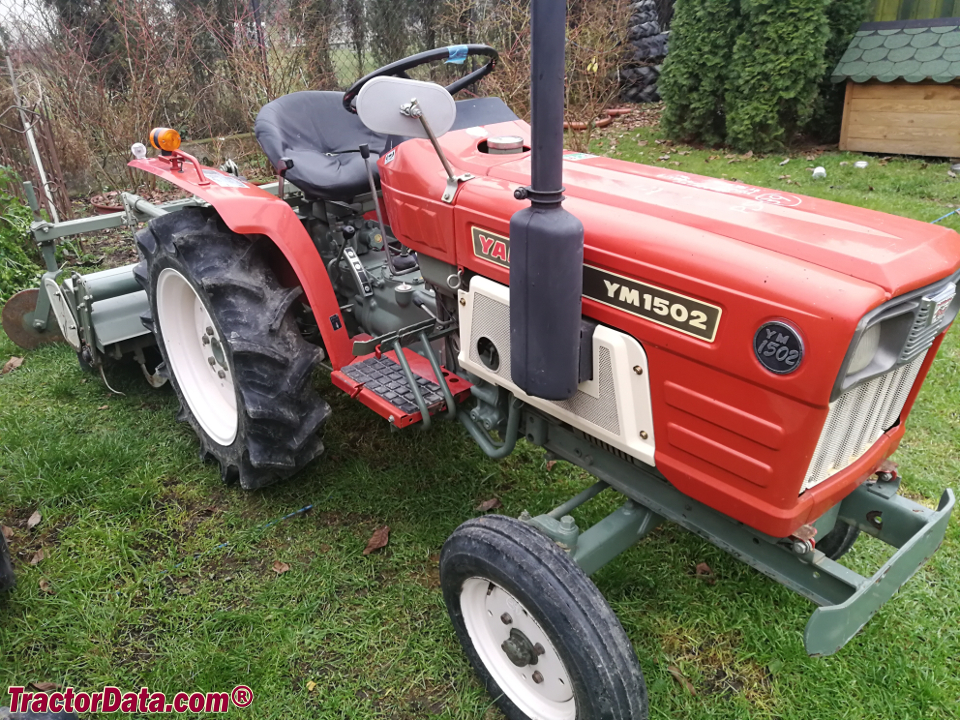

The Yanmar YM1502 is a tractor with a rated power output of 15 hp, categorised at the lighter end of its class. It was manufactured between 1981 and 1983. Specifications include a 3-cylinder diesel liquid-cooled engine and four-wheel drive. The tractor has an operating weight of 703 kg and is suitable for operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
15 hp
Weight
703 kg
Catalogue coverage
Variants represented
2
Richest spec table
24 rows
Recorded power
15 hp
Recorded weight
703 kg
Transmissions
gear
Production years
1981-1983
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
YM15022WDReference
YM1502D4WDReference
Engine
Yanmar 0.9L 3-cyl dieselReference
Engine11.2 kWReference
Yanmar 3T72SAReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement0.9 LReference
Bore/Stroke72 x 72 mmReference
Power11.2 kWReference
Starter volts12Reference
Transmission
gearReference
TypegearReference
Dimensions
Weight703 kgReference
Length256 cmReference
Width106 cmReference
Height177 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
