Tractor · 1976Unverified

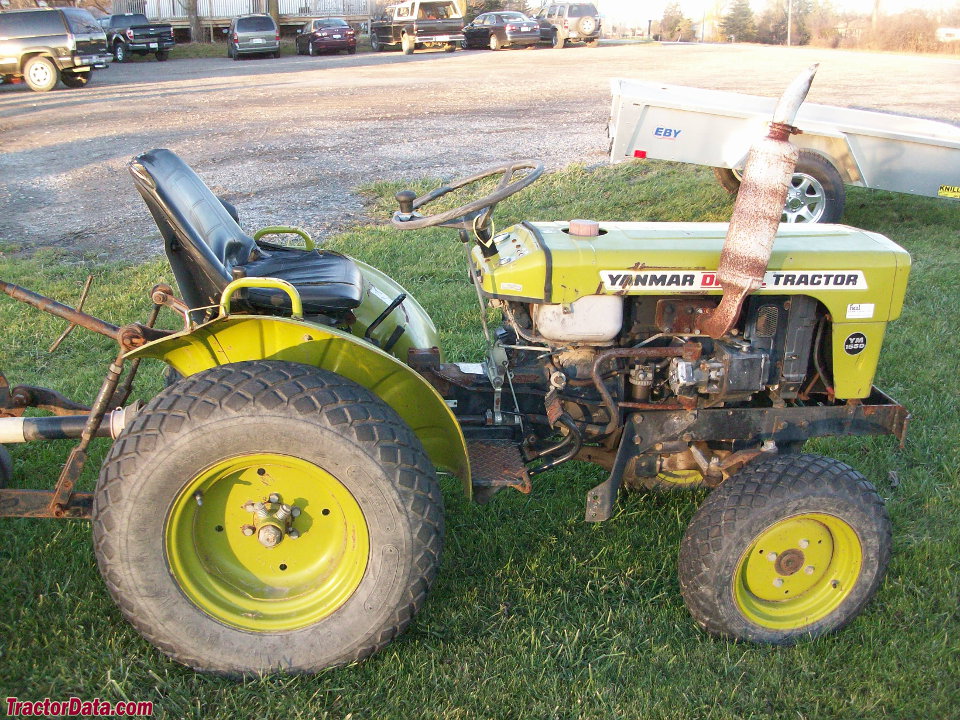

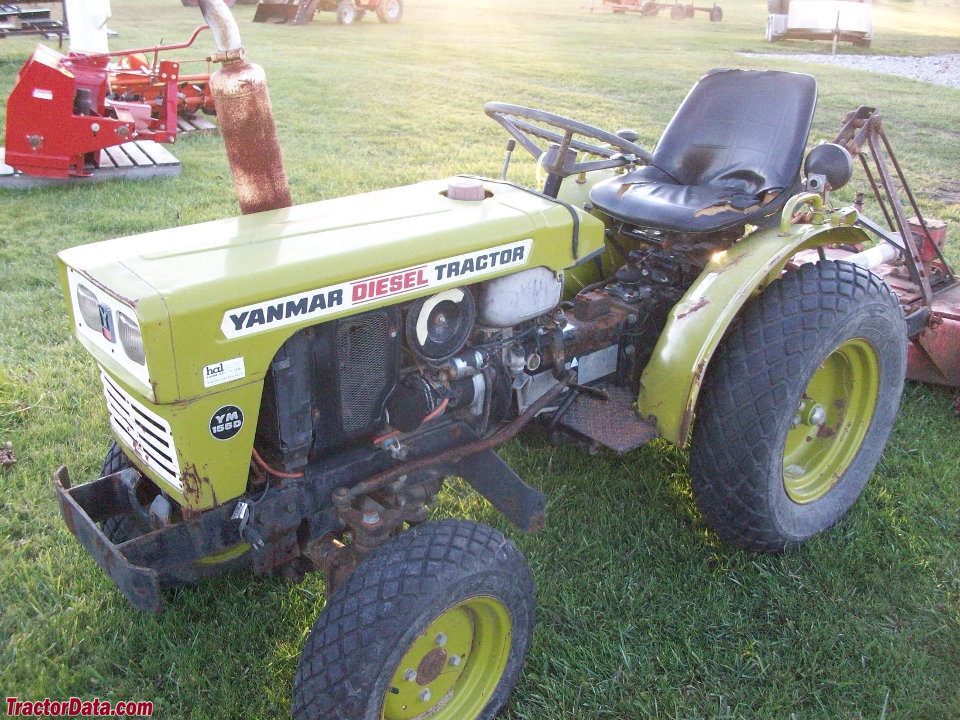

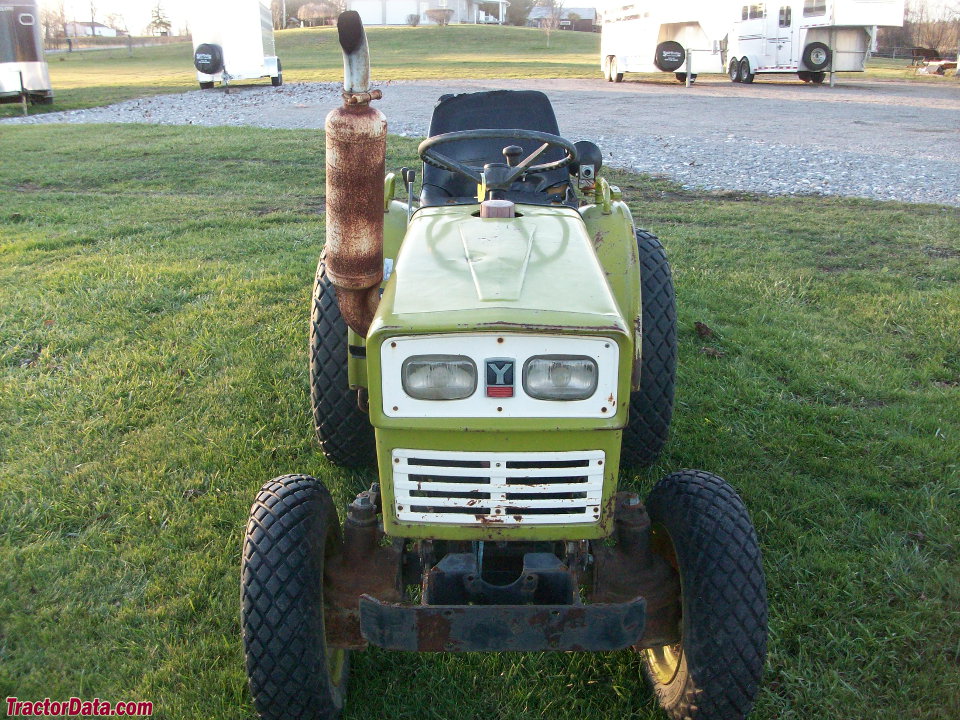

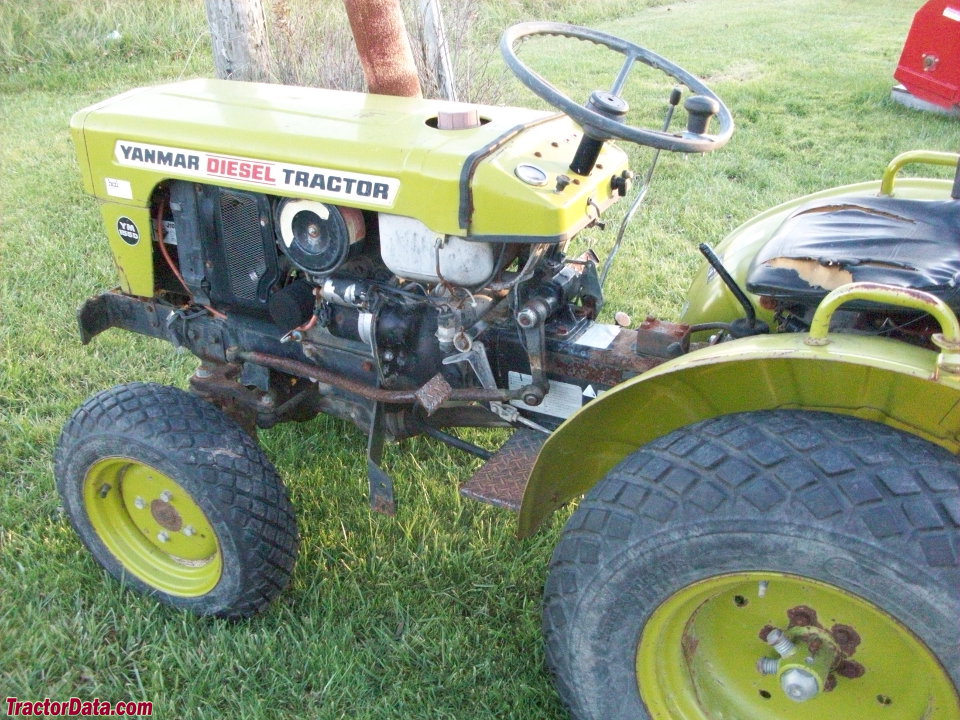

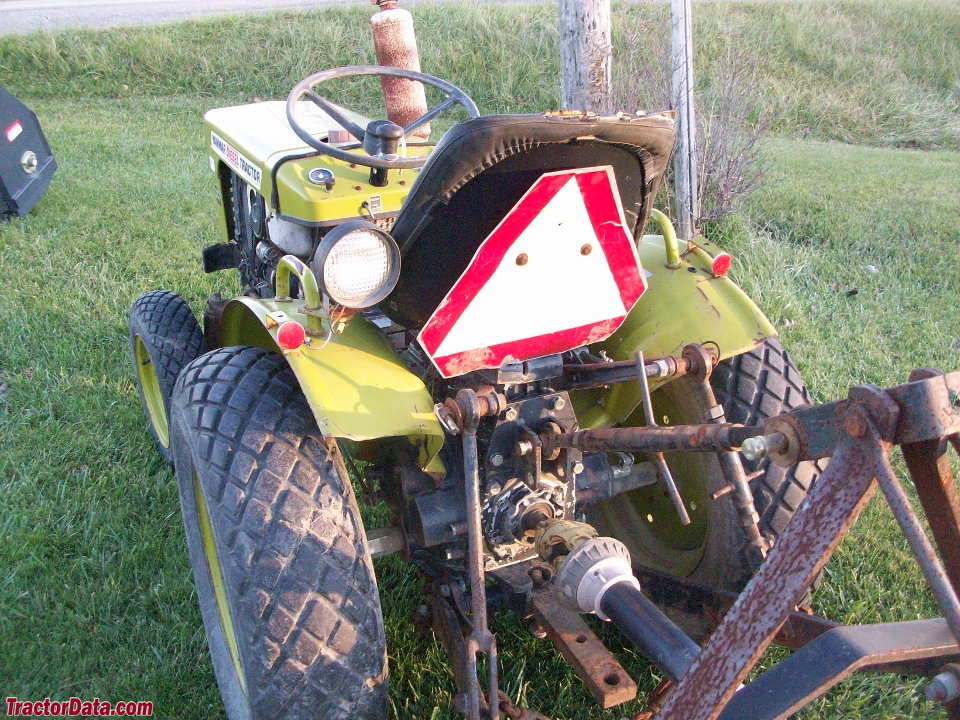

Yanmar YM155
Yanmar YM155 — Sub-Compact Utility tractor · 15 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
15 hp
Weight
1057 to 1145 pounds
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Sub-Compact Utility tractorReference
Original price was $5,000 in 1979Reference
Two- or four-wheel driveReference
Differential lockmechanical rearReference

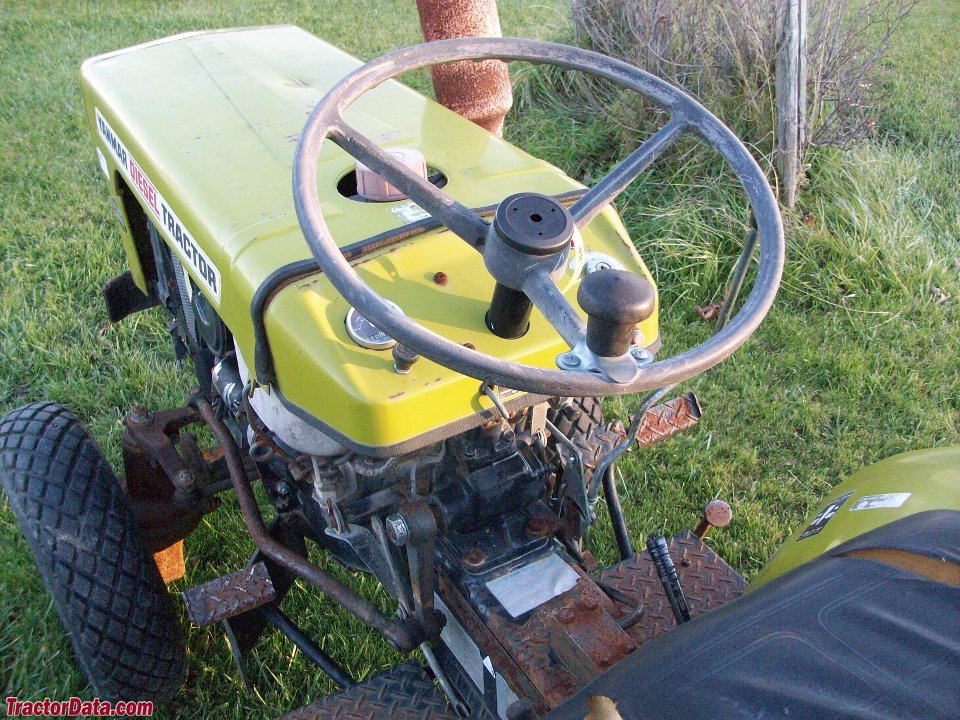

Manual steeringReference
Mechanical drum brakesReference
Open operator station.Reference
Variants
YM1552WDReference
YM155D4WDReference
Engine
Yanmar 0.7L 2-cyl dieselReference
Fuel tank15.1 LReference
Engine11.2 kWReference
Yanmar 2TR13AReference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement0.7 LReference
Bore/Stroke75 x 75 mmReference
Power11.2 kWReference
Compression23:1Reference
Rated RPM2700Reference
Torque39.2 NmReference
Torque RPM2200Reference
Firing order1-2Reference
Starter volts12Reference
Oil capacity2.0 LReference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
Clutch180mm dry discReference
PTO & Hydraulics
Typeopen centerReference
Pump flow14.4 lpmReference
Rear TypeIReference
Rear lift548 kgReference
ClutchoverrunningReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2540Reference
Engine RPM770@2540Reference
Dimensions
Wheelbase123 cmReference
Weight1057 to 1145 poundsReference
Front tire4.50-10Reference
2WD Rear tire8-16Reference
Weight322 kgReference
2WD Standard tires (ag)Front: 4.50-10. Rear: 8-16Reference
4WD Standard tires (ag)Front: 5-12. Rear: 8-16Reference
Ag rear8-16Reference
Length251 cmReference
Width95 cmReference
Height (steering wheel)116 cmReference
Height (hood)107 cmReference
2WD Weight479 kgReference
4WD Weight519 kgReference
Ground clearance26 cmReference
2WD Front tread72 cmReference
4WD Front tread74 cmReference
Rear tread70 to 85 cmReference
Yanmar YM155 attachments
45" mid-mount mower deckReference
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Battery volts12Reference
Questions
I purchased a YFL-575 loader from a 155D and I'm having trouble finding and sort of schematics or even pictures to help me figure out how/where to connect the hydraulic lines. Assuming you did not get a loader with a separate pump (driven off the front PTO) then Yanmar intended for the B440 selector valve to be installed. The hydraulics are installed in series from the diverter block to the selector valve. You could use the loader or hitch, but not both.Reference
Attachment overview
45" mid-mount mower deckReference
Front-end loaderReference
BackhoeReference
45" Mower deck
Typemid-mount Yanmar YMM-45Reference
Type2-blade with hydraulic liftReference
Cutting width114 cmReference
Overall width137 cmReference
Cut height2 to 12 cmReference
Yanmar YBH-650 Backhoe
Backhoe typeYanmar YBH-650 BackhoeReference
Transport height154 cmReference
Bucket width22 cmReference
Bucket width33 cmReference
Bucket width40 cmReference
Bucket width48 cmReference
Digging depth185 cmReference
Reach from pivot254 cmReference
Loading height152 cmReference
Swing Arc180°Reference
Bucket force1088 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
