Tractor · 1975Unverified

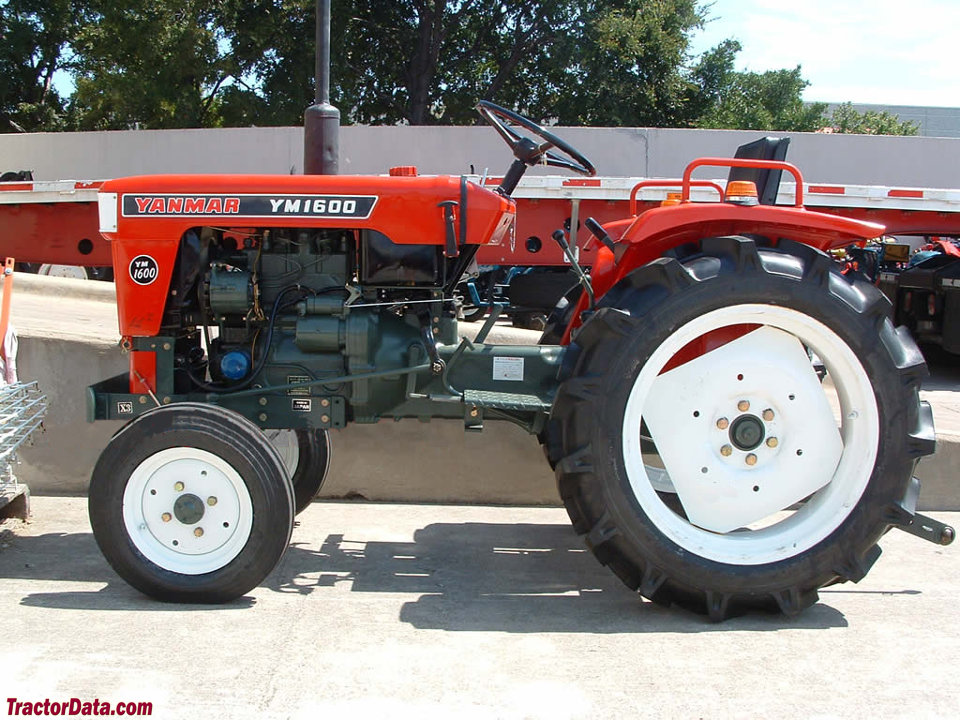

Yanmar YM1600
Yanmar YM1600 — Compact Utility tractor · 16 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
16 hp
Weight
699 kg
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Two-wheel driveReference
Open operator station.Reference
Engine
Yanmar 1.0L 2-cyl dieselReference
Engine11.8 kWReference
Yanmar 2TR16Reference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Bore/Stroke85 x 90 mmReference
Power11.8 kWReference
Rated RPM2300Reference
Starter volts12Reference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 2 reverseReference
PTO & Hydraulics
Rear PTO Type563/700/1208Reference
Dimensions
Wheelbase141 cmReference
Weight699 kgReference
Front tire4.00-12Reference
Rear tire8.3/8-24Reference
Ag front4.00-12Reference
Ag rear8.3/8-24Reference
Length226 cmReference
Width108 cmReference
Height184 cmReference
Ground clearance33 cmReference
Front tread84 cmReference
Rear tread88 to 100 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH75Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
