Tractor · 1979Unverified

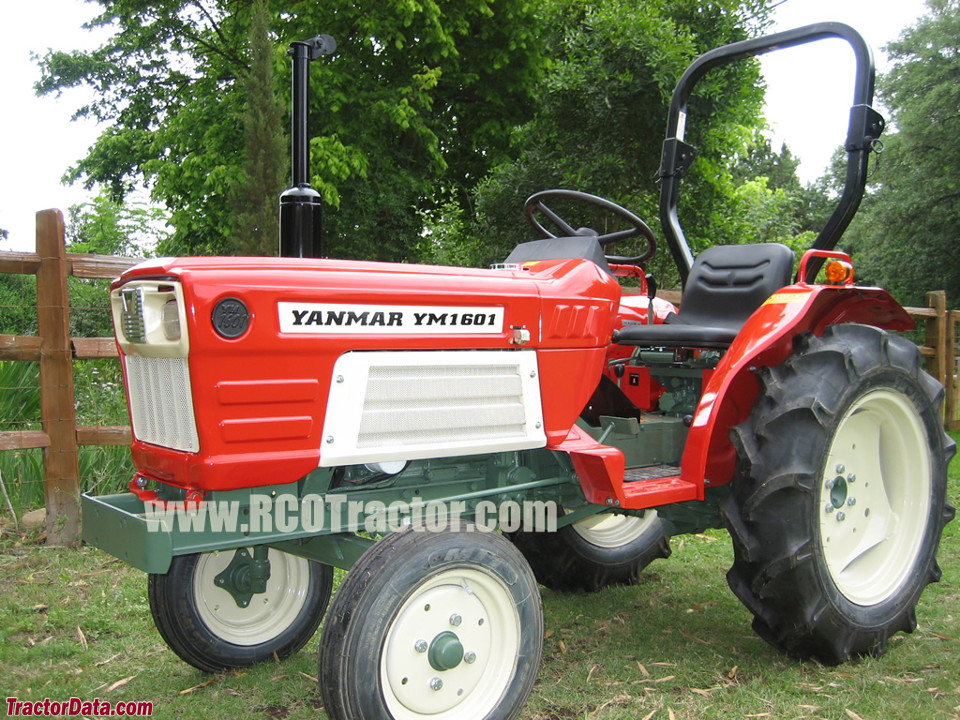

Yanmar YM1601
Yanmar YM1601 — Compact Utility tractor · 16 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
16 hp
Weight
1477 to 1565 pounds
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Two-wheel driveReference
Open operator station.Reference
Variants
YM16012WD gearReference
YM1601D4WD gearReference
YM16102WD power shiftReference

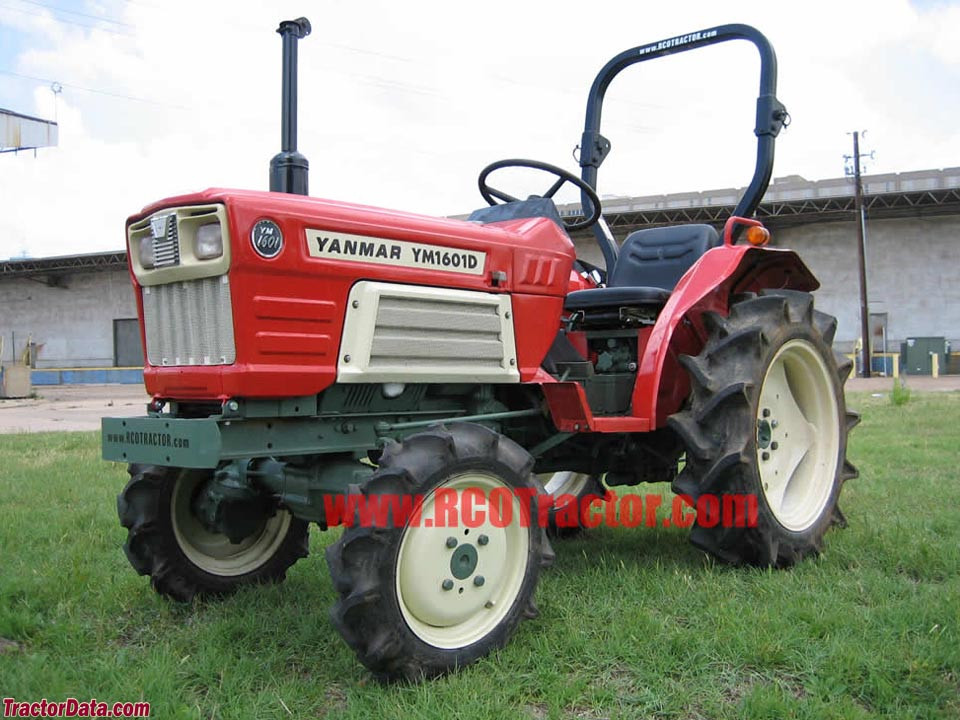

YM1610D4WD power shiftReference
Engine
Yanmar 1.0L 3-cyl dieselReference
Fuel tank20.4 LReference
Engine11.9 kWReference
Yanmar 3T75UReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Bore/Stroke75 x 72 mmReference
Power11.9 kWReference
Rated RPM2500Reference
Starter volts12Reference
Transmission
12-speed gearReference
TypegearReference
Gears12 forward and 4 reverseReference
PTO & Hydraulics
Rear PTO Type540 (1.375)Reference
Engine RPM588@2500Reference
Engine RPM769@2500Reference
Engine RPM1111@2500Reference
Dimensions
Weight1477 to 1565 poundsReference
Front tire4.00-12Reference
2WD Rear tire8.3-22Reference
2WD Standard tires (ag)Front: 4.00-12. Rear: 8.3-22Reference
4WD Standard tires (ag)Front: 5-14. Rear: 8.3-22Reference
Length261 cmReference
Width111 cmReference
Height175 cmReference
2WD Weight669 kgReference
4WD Weight709 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
