Tractor · 1980Unverified

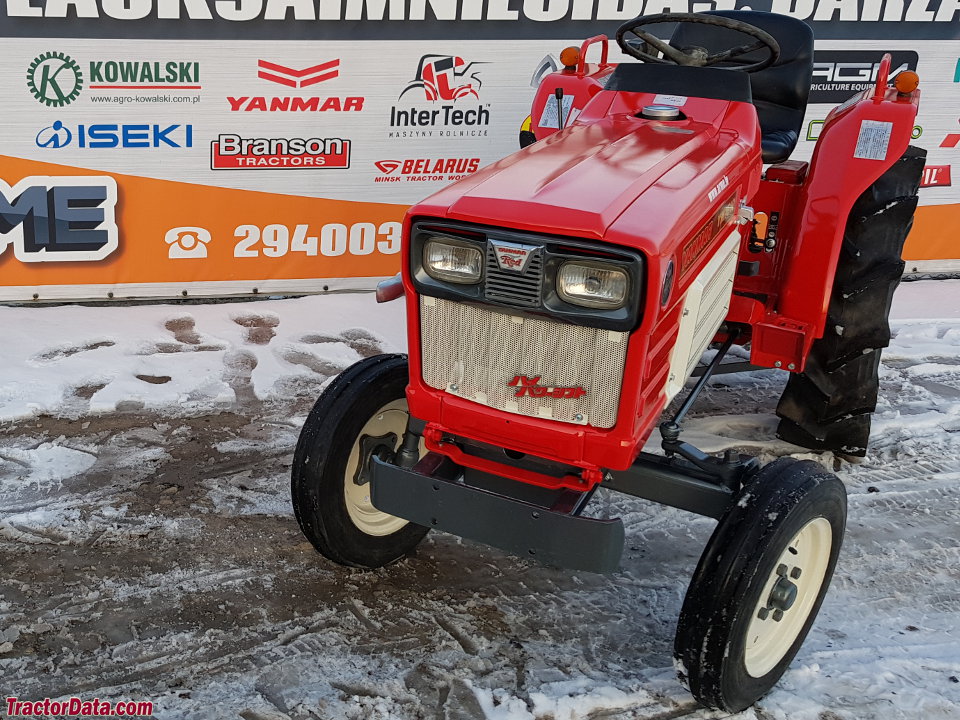

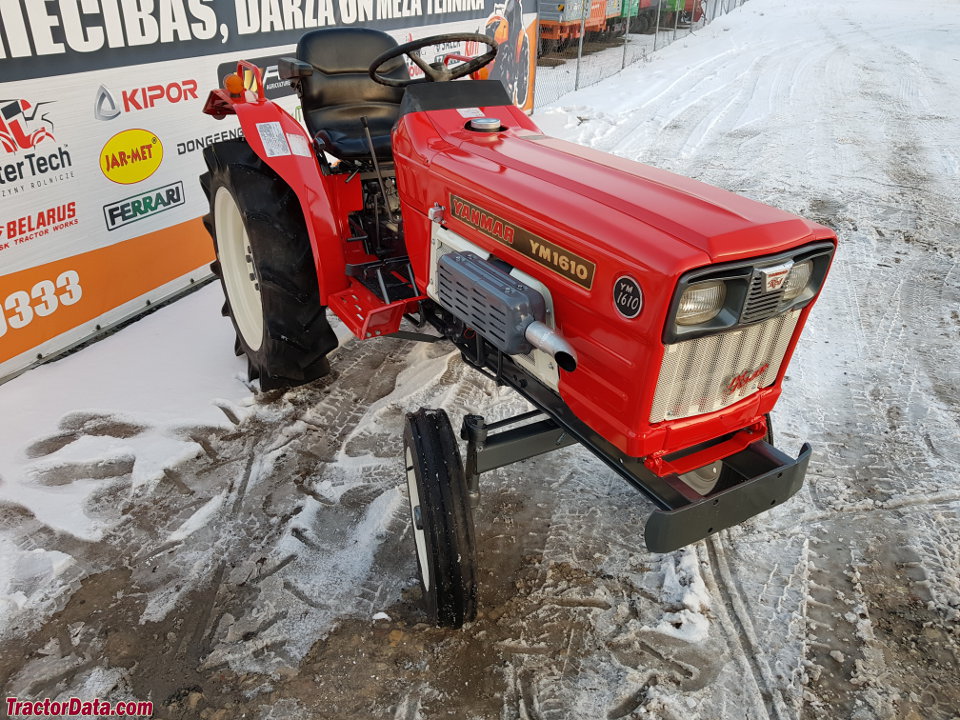

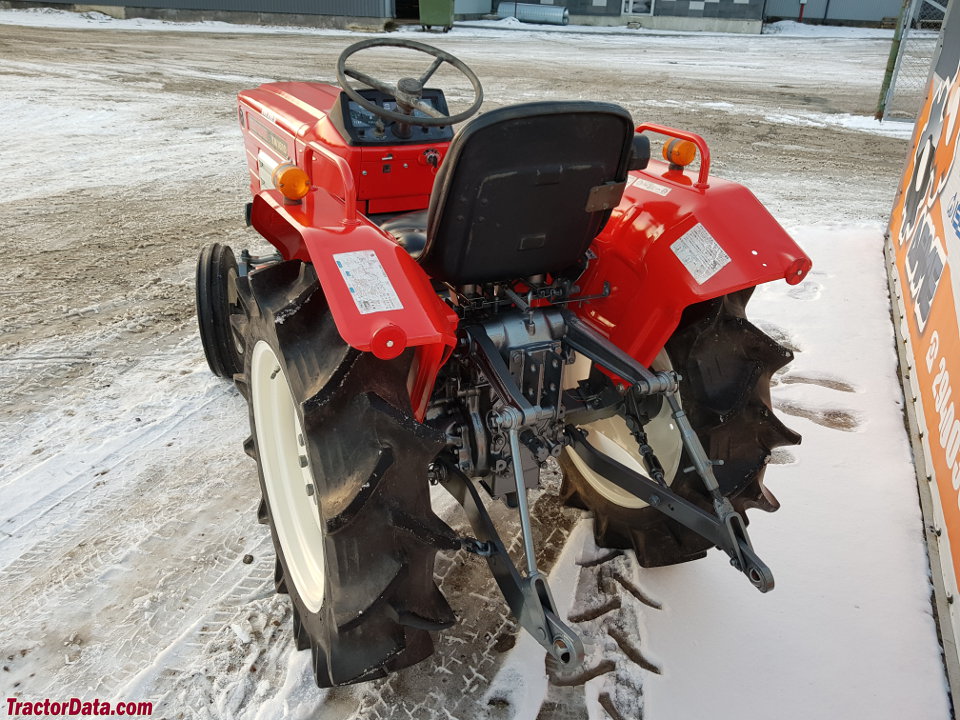

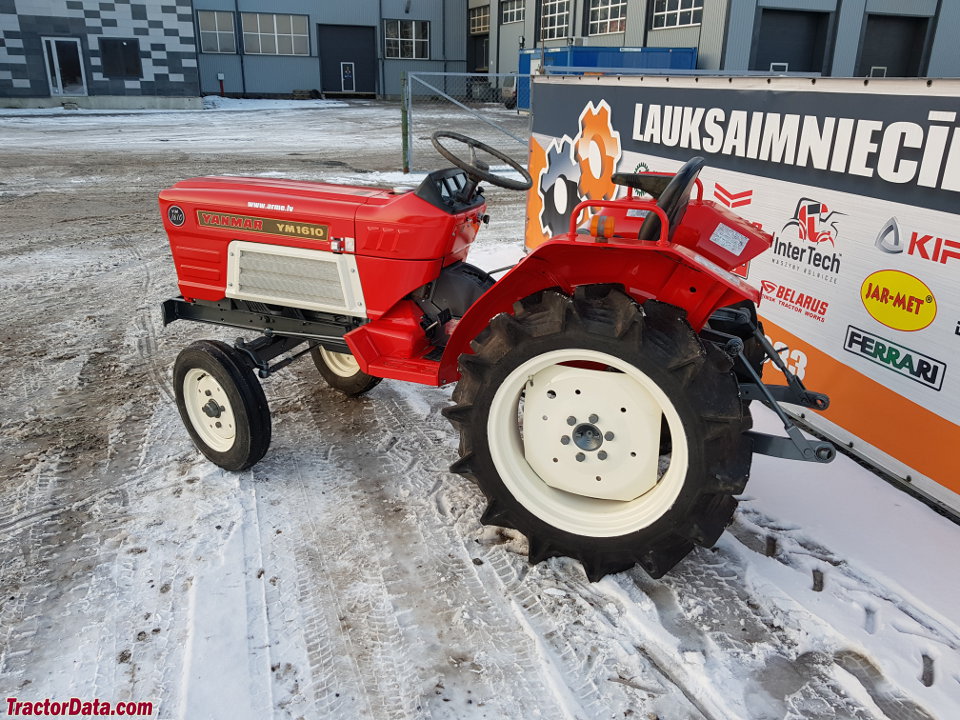

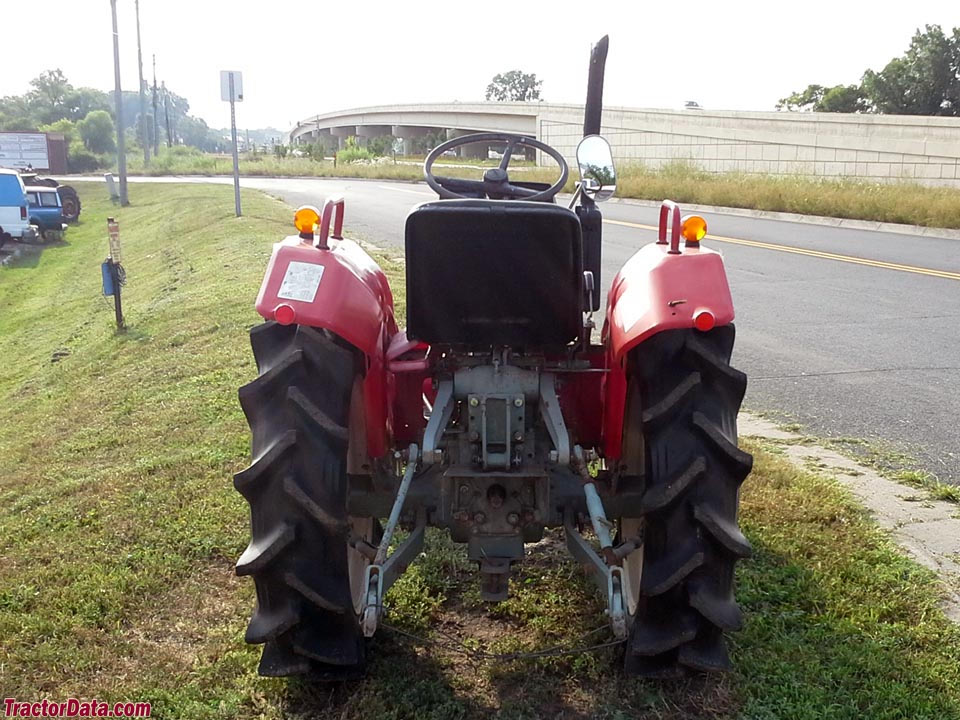

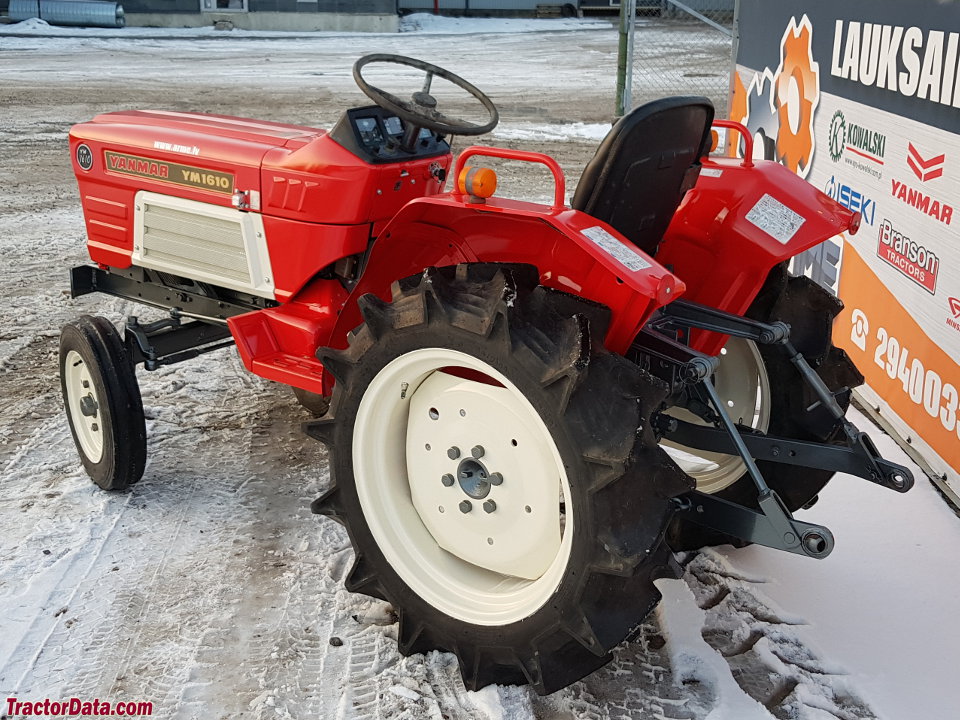

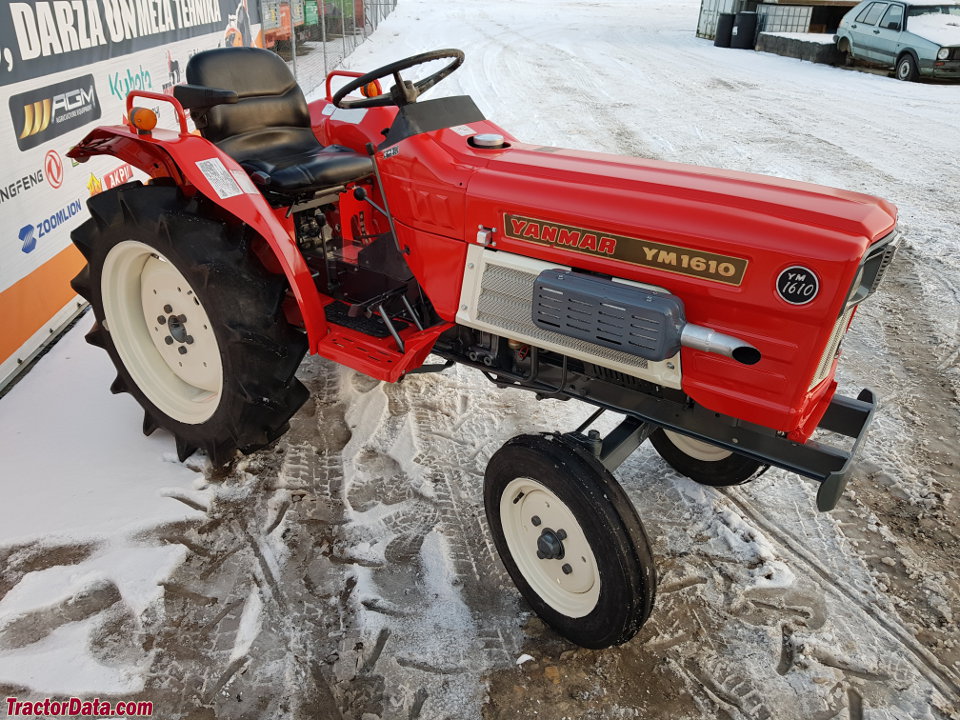

Yanmar YM1610
Yanmar YM1610 — YM10 Series · 16 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
16 hp
Weight
1499 to 1609 pounds
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Two- or four-wheel driveReference

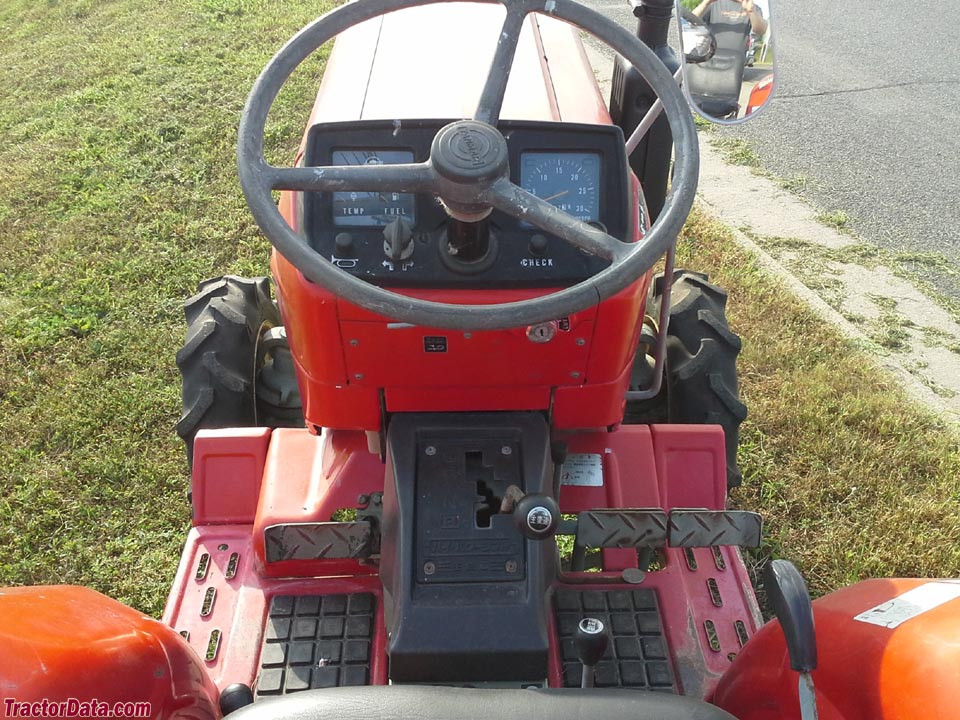

Open operator station.Reference
Variants
YM16012WD gearReference
YM1601D4WD gearReference
YM16102WD power shiftReference

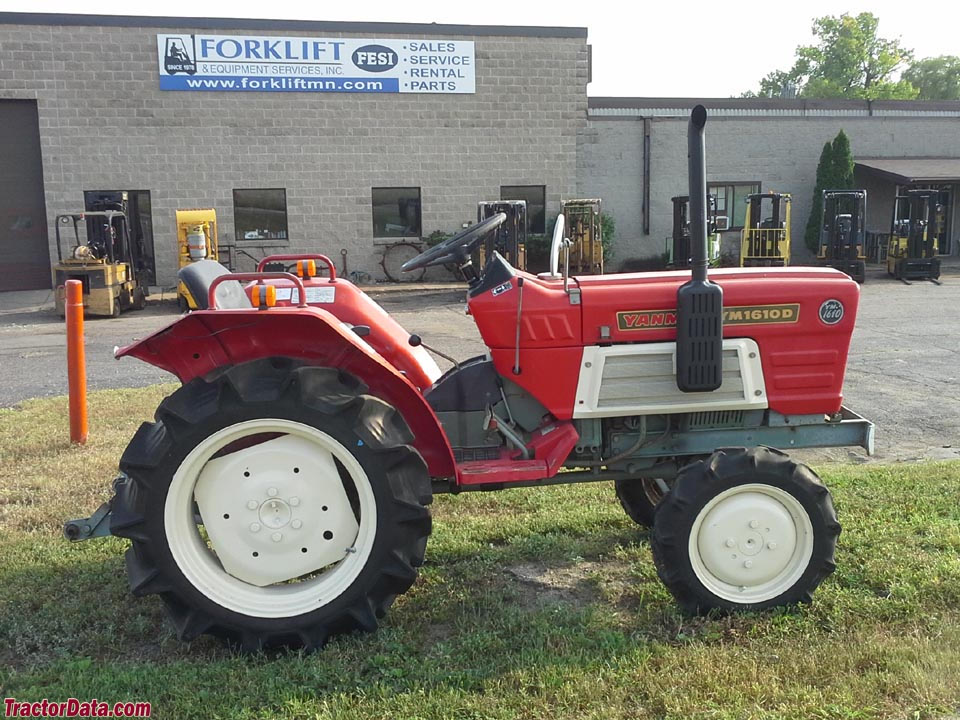

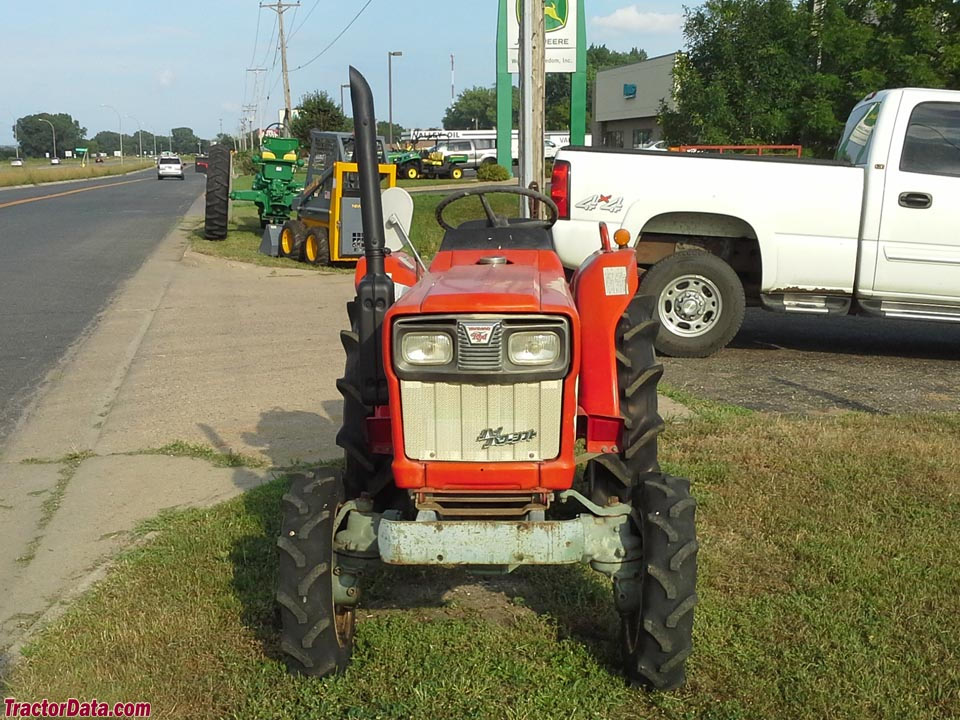

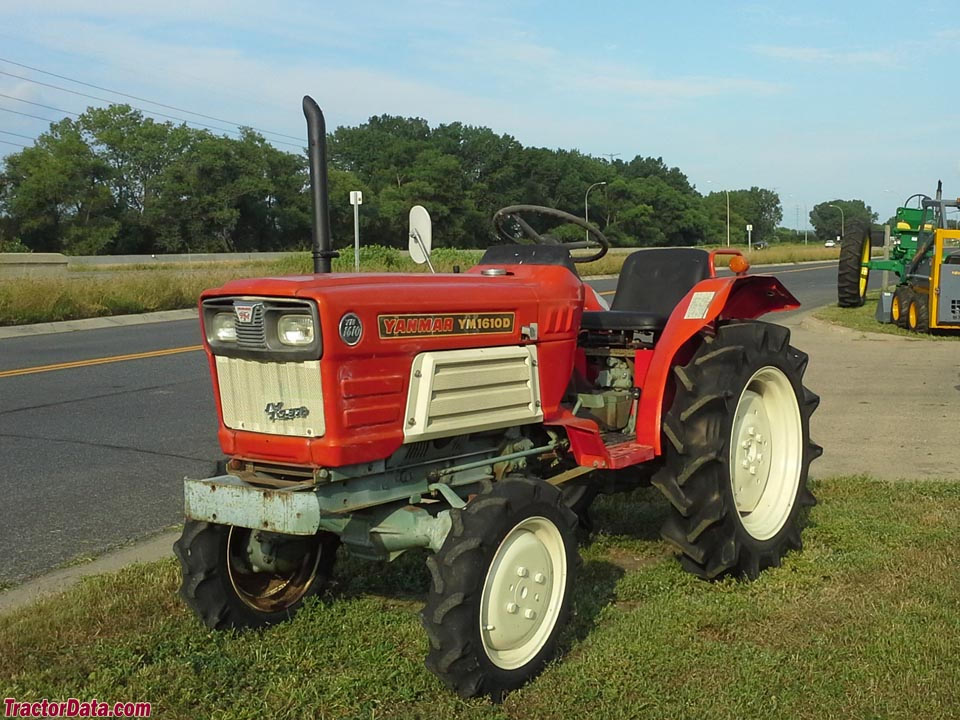

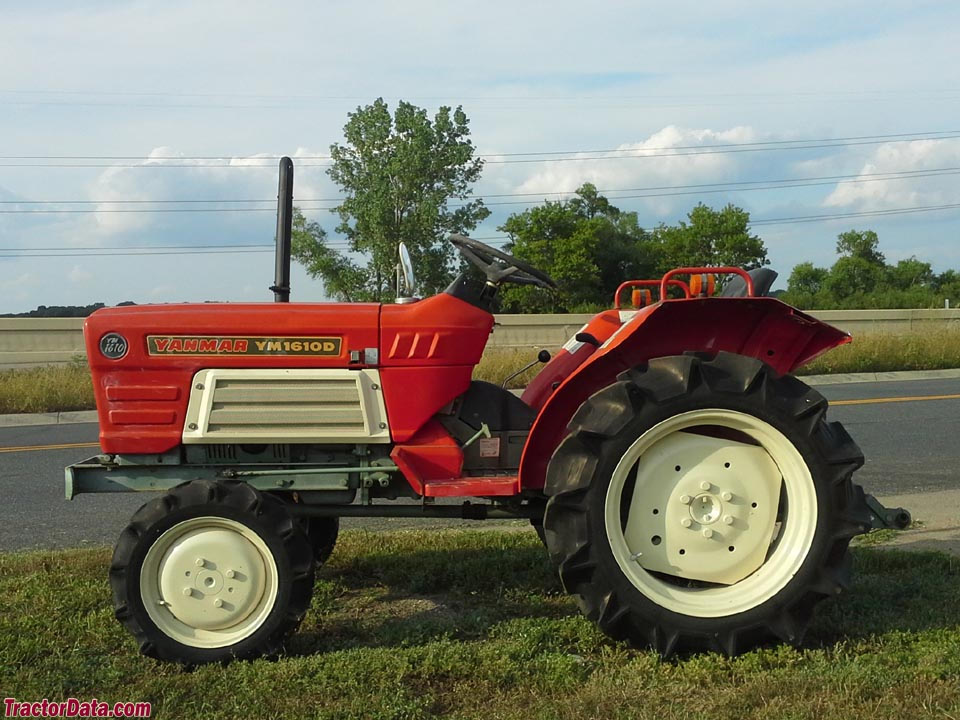

YM1610D4WD power shiftReference
Engine
Yanmar 1.0L 3-cyl dieselReference
Engine11.9 kWReference
Yanmar 3T75UReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Bore/Stroke75 x 75 mmReference
Power11.9 kWReference
Starter volts12Reference
Transmission
9-speed partial power shiftReference
Typepartial power shiftReference
Gears9 forward and 3 reverseReference
PTO & Hydraulics
Rear TypeIReference
Rear PTO Type540Reference
Dimensions
Weight1499 to 1609 poundsReference
Length261 cmReference
Width111 cmReference
Height175 cmReference
2WD Weight679 kgReference
4WD Weight729 kgReference
YM1610 Serial Number Location
Serial number on the left side of transmission housing.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
