Tractor · 1980Unverified

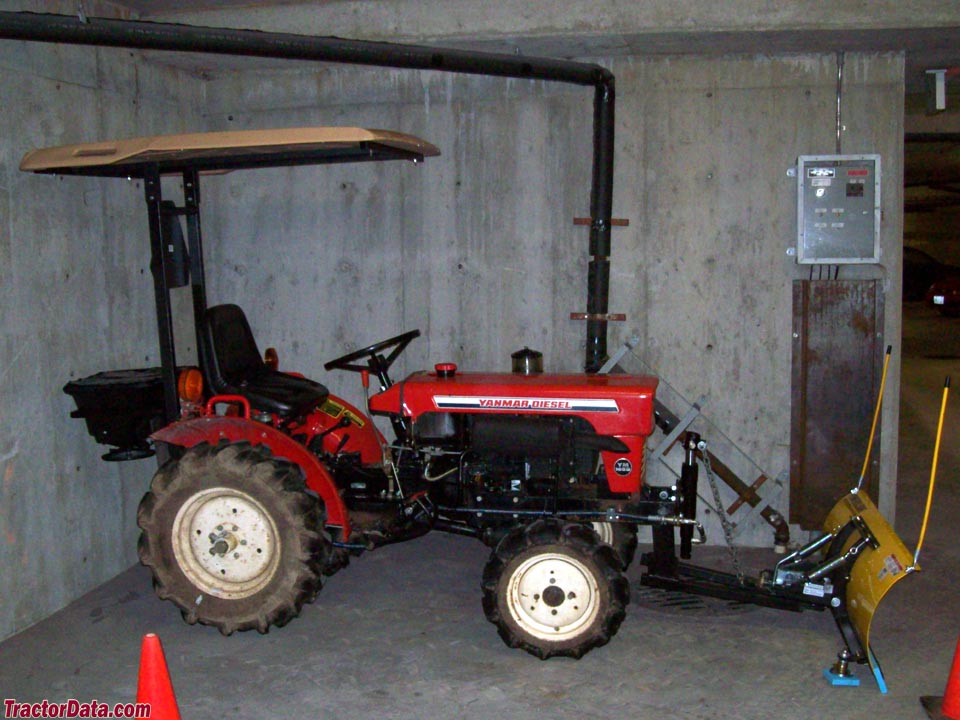

Yanmar YM165
Yanmar YM165 — Compact Utility tractor · 16 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
16 hp
Weight
1109 to 1230 pounds
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Original price was $6,500 in 1986Reference
Two- or four-wheel driveReference
Final drivesbull gearReference
Differential lockmechanical rearReference
Manual steeringReference
Mechanical drum brakesReference
Open operator station. Two-post ROPS available (RB169)Reference
Variants
YM1652WDReference
YM165D4WDReference
Engine
Yanmar 0.7L 2-cyl dieselReference
Engine11.9 kWReference
Yanmar 2TR13AReference
dieselReference
2-cylinderReference
liquid-cooled inlineReference
Displacement0.7 LReference
Bore/Stroke75 x 75 mmReference
Power11.9 kWReference
Air cleanerdryReference
Pre-heatingcoolant heaterReference
Compression23:1Reference
Rated RPM2700Reference
Operating RPM2200-2700Reference
Firing order1-2Reference
Starter volts12Reference
Coolant capacity3.2 LReference
Intake valve clearance0.203 mmReference
Exhaust valve clearance0.203 mmReference
Oil capacity2.2 LReference
Oil change100 hReference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
Clutchdry discReference
Oil capacity9.5 LReference
Three gears, plus reverse, in two ranges.Reference
Capacities
Fuel15.1 LReference
PTO & Hydraulics
Hydraulic system9.5 LReference
Typeopen centerReference
Capacity9.5 LReference
Pressure78.5 barReference
Valves1Reference
Pump flow14.4 lpmReference
Rear TypeIReference
Rear lift (at ends)350 kgReference
Front Hitch530Reference
Rear PTOtransmissionReference
Clutchoverrunning mechanical dry discReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2540Reference
Engine RPM770@2540Reference
Front PTOindependentReference
Clutchelectro-magneticReference
Front PTO TypepulleyReference
Dimensions
Wheelbase123 cmReference
Weight1109 to 1230 poundsReference
Front tire4.50-10Reference
2WD Rear tire8/8-16Reference
2WD Standard tires (ag)Front: 4.50-10. Rear: 8/8-16Reference
4WD Standard tires (ag)Front: 5-12. Rear: 8-16Reference
Lawn/turf front20.5x8.00-10Reference
Lawn/turf rear29x12.00-15Reference
Lawn/turf front6-12Reference
Lawn/turf rear8-16Reference
Length242 cmReference
Width97 cmReference
Height (steering wheel)116 cmReference
2WD Weight503 kgReference
4WD Weight557 kgReference
Clearance (rear axle)34 cmReference
Clearance (drawbar)26 cmReference
Flange rear axleReference
2WD Front tread78 cmReference
4WD Front tread74 cmReference
Rear tread70/85 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps7Reference
Battery volts12Reference
Battery AH35Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
