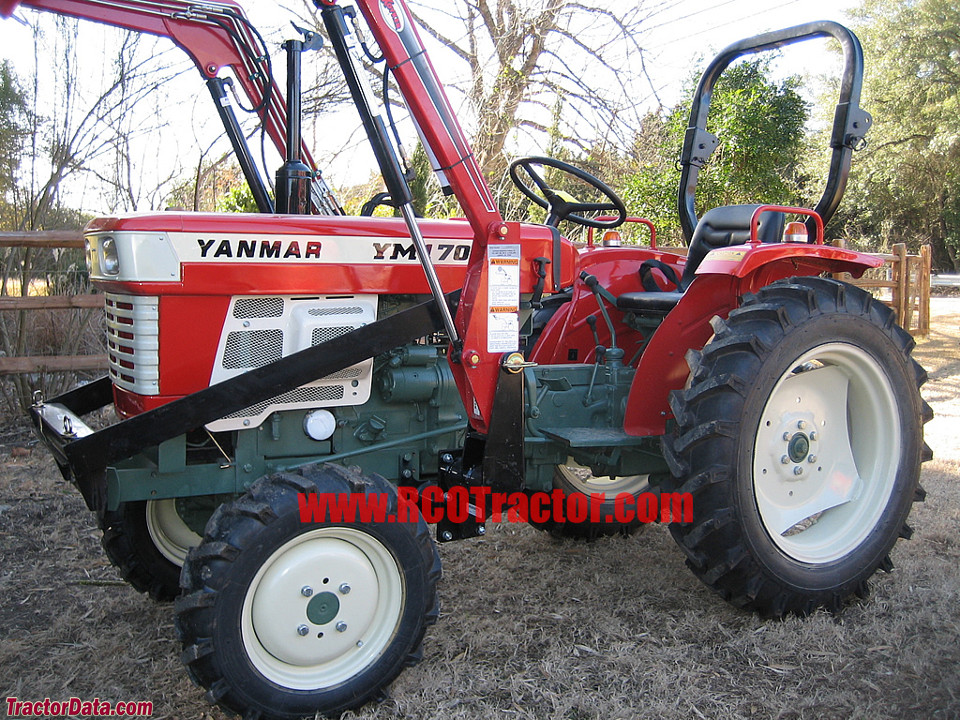

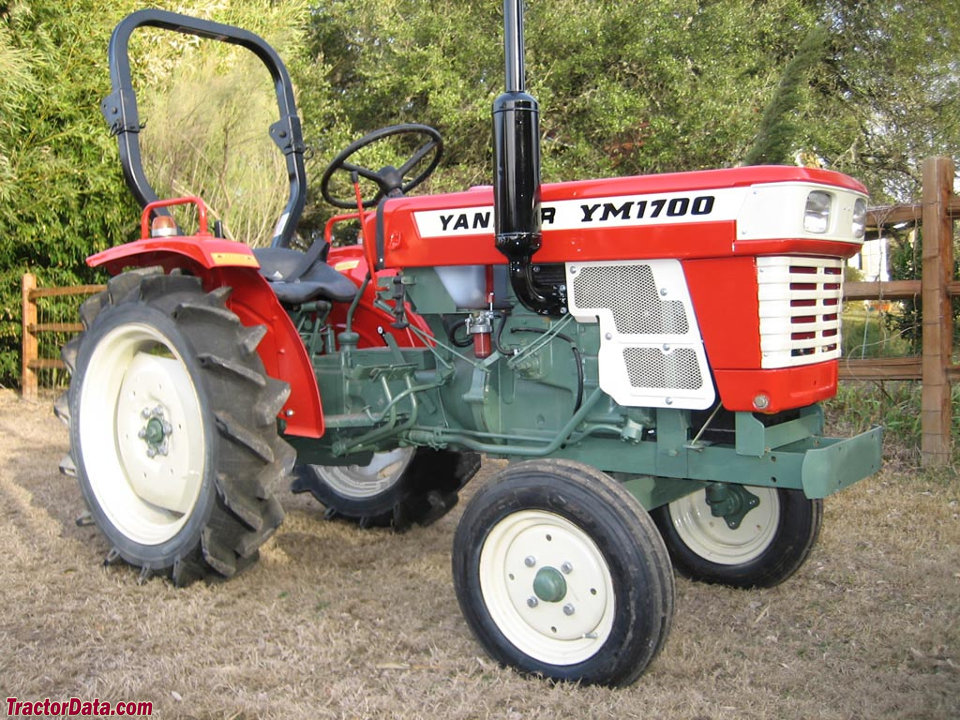

The Yanmar YM1700 is a compact tractor, boasting a rated output of 17 hp, which positions it among the smaller options in its class. The YM1700 was manufactured over the period of 1982 to 1983. It is equipped with a 2-cylinder diesel liquid-cooled engine, driving through a four-wheel drive system with an 8-speed gearbox. The tractor weighs between 1829 and 1918 pounds.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
17 hp
Weight
1829 to 1918 pounds
Catalogue coverage
Variants represented
2
Richest spec table
42 rows
Recorded power
17 hp
Recorded weight
829 kg
Transmissions
8-speed gear
Production years
1982-1983
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Two- or four-wheel driveReference
SteeringmanualReference
Mechanical drum brakesReference
Open operator station.Reference
Variants
YM17002WDReference
YM1700D4WDReference
Engine
Yanmar 1.0L 2-cyl dieselReference
Fuel tank22.0 LReference
Engine12.7 kWReference
Yanmar 2TR17Reference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Bore/Stroke85 x 90 mmReference
Power12.7 kWReference
Rated RPM2400Reference
Idle RPM800-2400Reference
Starter volts12Reference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 2 reverseReference
Clutchdry discReference
PTO & Hydraulics
Rear TypeIReference
Rear lift650 kgReference
Rear PTO Type540/750/1000Reference
Dimensions
Wheelbase141 cmReference
Weight1829 to 1918 poundsReference
Front tire4.00x12Reference
Rear tire8.3x24Reference
Ag front4.00x12Reference
Ag rear8.3x24Reference
Length239 cmReference
Width112 cmReference
Height (exhaust)173 cmReference
Shipping weight829 kgReference
Operating weight870 kgReference
Ground clearance33 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
