Tractor · 1982Unverified

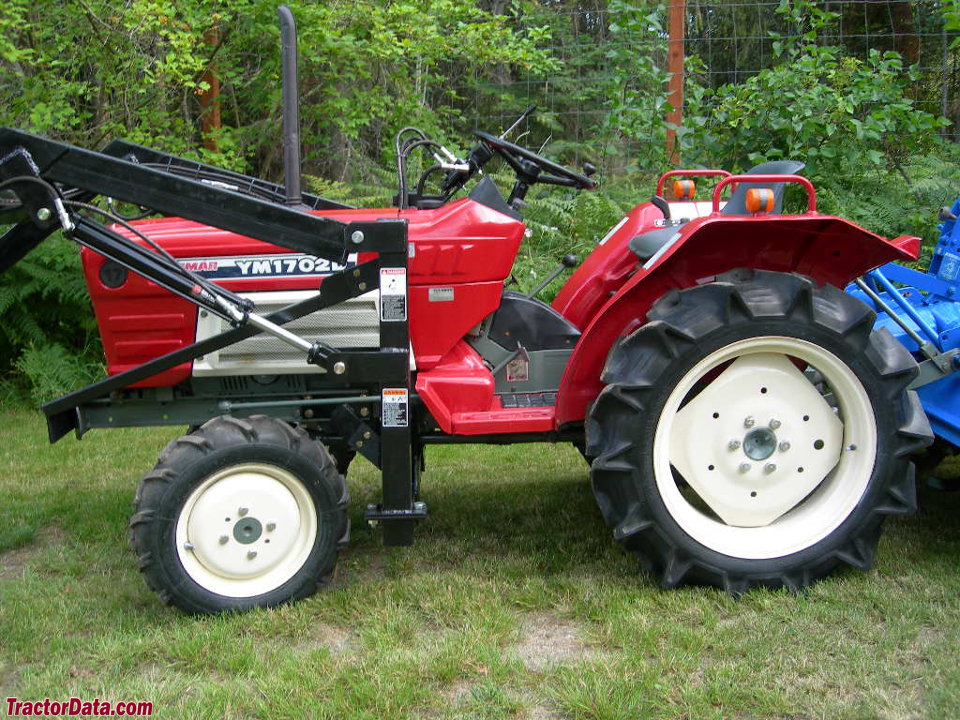

Yanmar YM1702
Yanmar YM1702 — YM02 Series · 17 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
17 hp
Weight
929 kg
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
YM17022WD gearReference
YM1702D4WD gearReference
YM17202WD power shiftReference
YM1720D4WD power shiftReference

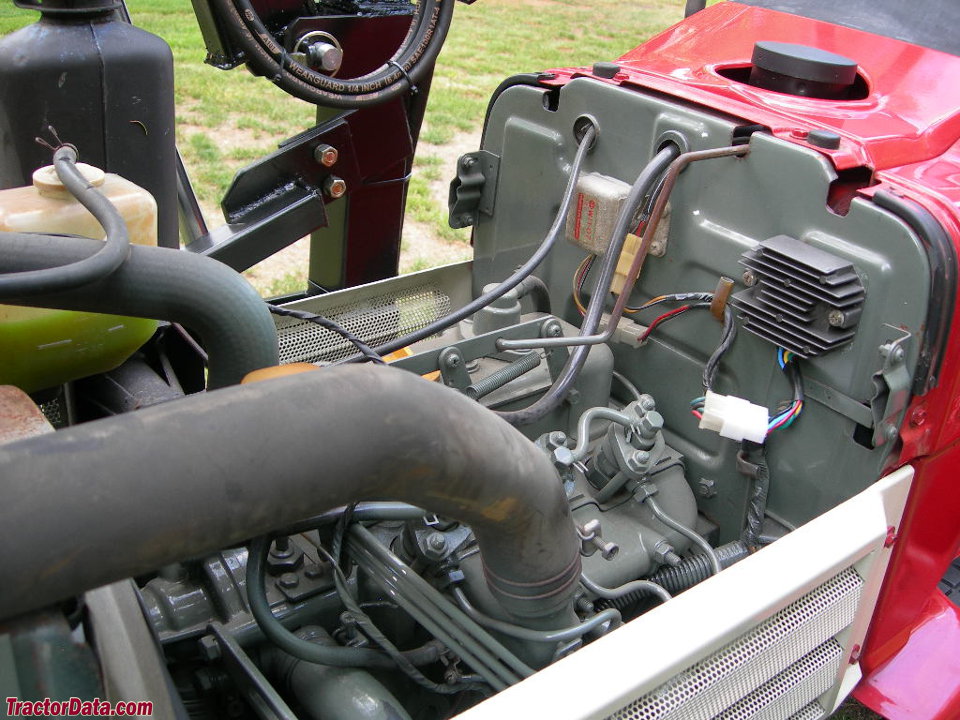

Engine
Yanmar 1.0L 3-cyl dieselReference
Engine12.7 kWReference
Yanmar 3T75UReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Bore/Stroke75 x 75 mmReference
Power12.7 kWReference
Starter volts12Reference
Transmission
9-speed gearReference
12-speed creeperReference
TypegearReference
Gears9 forward and 3 reverseReference
Three gears, plus reverse, in three ranges.Reference
TypecreeperReference
Gears12 forward and 4 reverseReference
Dimensions
Weight929 kgReference
Front tire5-14Reference
Rear tire8.8-22Reference
Ag front5-14Reference
Ag rear8.8-22Reference
Length261 cmReference
Width111 cmReference
Height175 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
