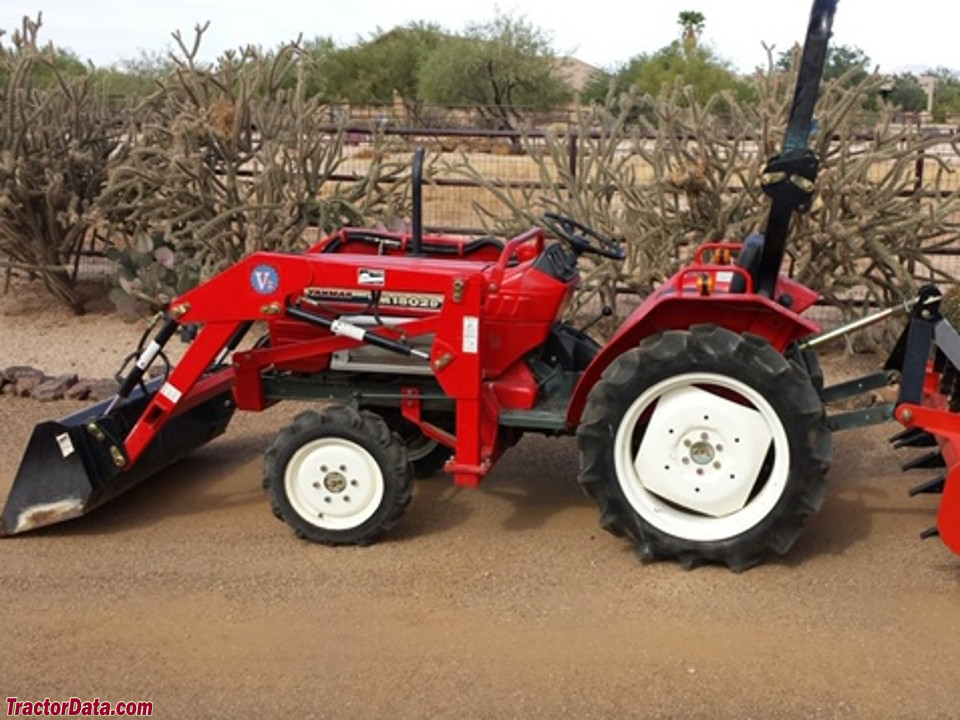

The Yanmar YM1802 is a tractor with a rated power of 18 hp, positioning it at the lighter end of its class. It was manufactured from 1982 to 1983. The tractor features a 3-cylinder diesel liquid-cooled engine, coupled with a four-wheel drive system and a powershift transmission. Its operating weight is 1025 kg, with a maximum operational area of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
18 hp
Weight
1025 kg
Catalogue coverage
Variants represented
2
Richest spec table
31 rows
Recorded power
18 hp
Recorded weight
1025 kg
Transmissions
9-speed gear
Production years
1982-1983
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
YM18022WD gearReference
YM1802D4WD gearReference
YM18202WD power shiftReference
YM1820D4WD power shiftReference
Engine
Yanmar 1.3L 3-cyl dieselReference
Engine13.4 kWReference
Yanmar 3T80U-NBReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Power13.4 kWReference
Rated RPM2400Reference
Starter volts12Reference
Transmission
9-speed gearReference
12-speed creeperReference
TypegearReference
Gears9 forward and 3 reverseReference
Three gears, plus reverse, in three ranges.Reference
TypecreeperReference
Gears12 forward and 4 reverseReference
Dimensions
Weight1025 kgReference
Length264 cmReference
Width114 cmReference
Height177 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
