Tractor · 1980Unverified

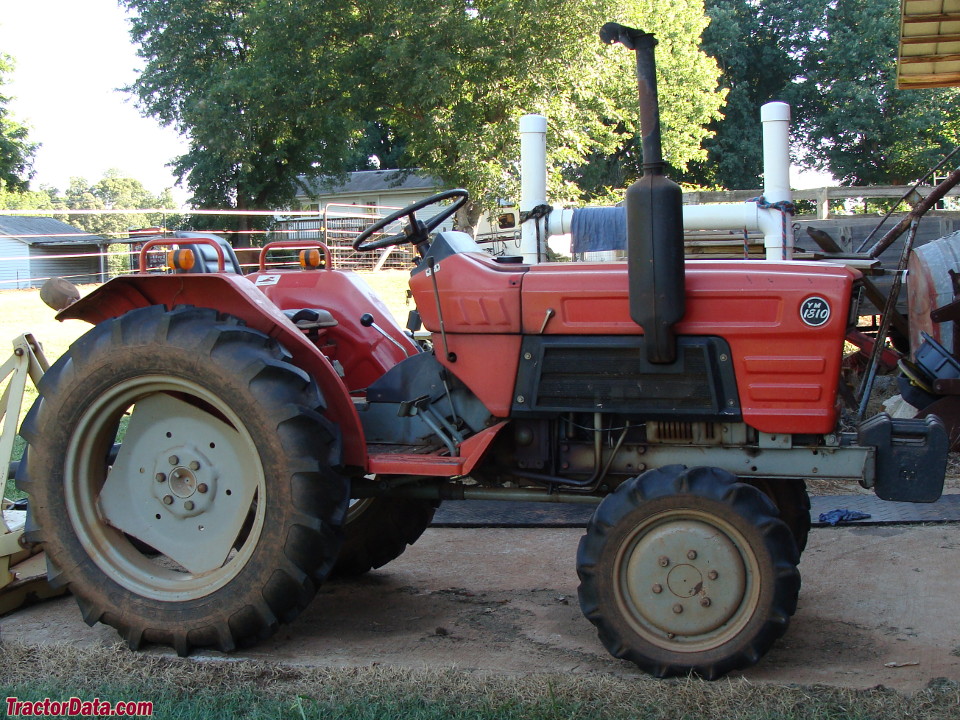

Yanmar YM1810
Yanmar YM1810 — YM10 Series · 18 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
18 hp
Weight
820 kg
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
YM18102WDReference
YM1810D4WDReference
Engine
Yanmar 1.0L 3-cyl dieselReference
Engine13.4 kWReference
Yanmar 3T75Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Bore/Stroke75 x 75 mmReference
Power13.4 kWReference
Starter volts12Reference
Transmission
9-speed partial power shiftReference
Typepartial power shiftReference
Gears9 forward and 3 reverseReference
Three ranges with three power shift gears (plus reverse) per range.Reference
Dimensions
Weight820 kgReference
Length264 cmReference
Width114 cmReference
Height177 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
