Tractor · 1982Unverified

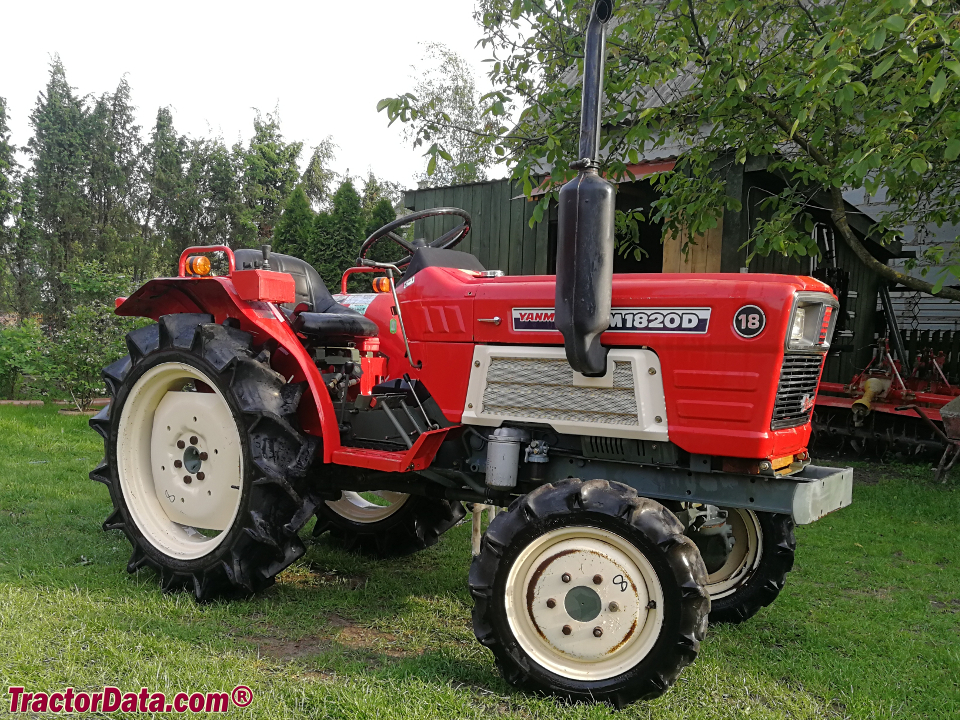

Yanmar YM1820
Yanmar YM1820 — YM20 Series · 18 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
18 hp
Weight
1049 kg
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
YM18022WD gearReference
YM1802D4WD gearReference
YM18202WD power shiftReference
YM1820D4WD power shiftReference
Engine
Yanmar 1.3L 3-cyl dieselReference
Engine13.4 kWReference
Yanmar 3T80U-NBReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Bore/Stroke80 x 85 mmReference
Power13.4 kWReference
Rated RPM2400Reference
Starter volts12Reference
Transmission
9-speed partial power shiftReference
12-speed creeperReference
Typepartial power shiftReference
Gears9 forward and 3 reverseReference
Three power shift gears, plus reverse, with three ranges.Reference
TypecreeperReference
Gears12 forward and 4 reverseReference
Dimensions
Weight1049 kgReference
Length264 cmReference
Width114 cmReference
Height177 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
