Tractor · 1986Unverified

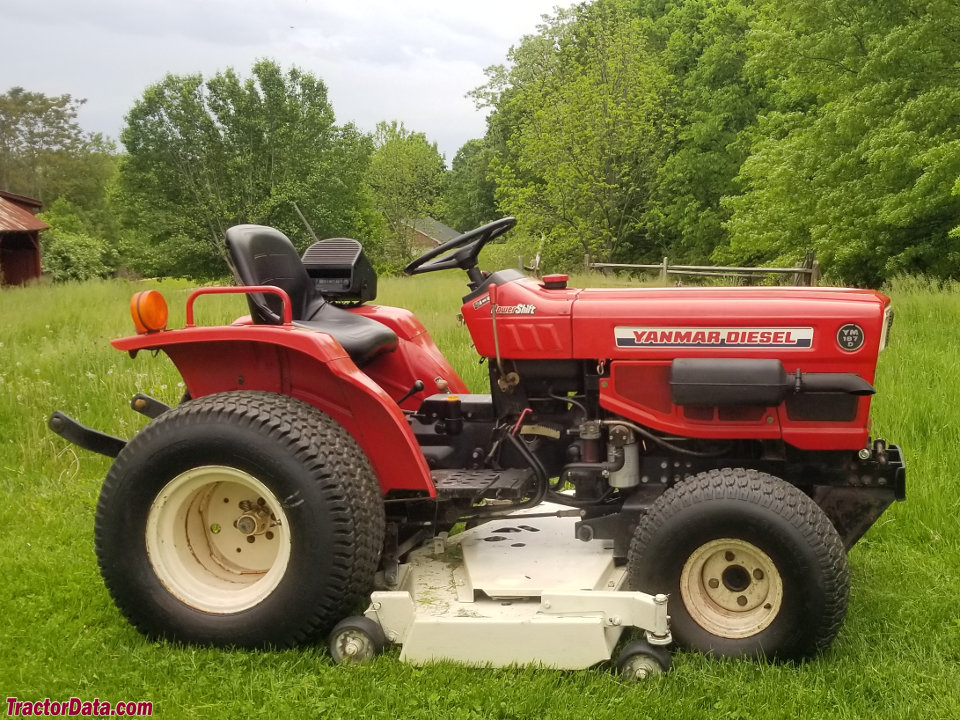

Yanmar YM187
Yanmar YM187 — Compact Utility tractor · 18 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
18 hp
Weight
1523 to 1658 pounds
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Two- or four-wheel driveReference
SteeringmanualReference
Steeringpower optionalReference
Mechanical drum brakesReference
Two-post fixed ROPS.Reference
Variants
YM1872WDReference
YM187D4WDReference
Engine
Yanmar 0.9L 3-cyl dieselReference
Fuel tank20.1 LReference
Engine13.4 kWReference
Yanmar 3T72HA-NReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement0.9 LReference
Bore/Stroke72 x 74 mmReference
Power13.4 kWReference
Compression23:1Reference
Rated RPM2600Reference
Firing order1-3-2Reference
StarterelectricReference
Starter volts12Reference
Oil capacity3.2 LReference
Coolant capacity4.2 LReference
Transmission
9-speed three-speed power shiftReference
Typethree-speed power shiftReference
Gears9 forward and 3 reverseReference
Clutchdry discReference
Three gears (1-3) plus reverse (R) in three ranges. Dashboard-mounted gear shifter.Reference
PTO & Hydraulics
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)469 kgReference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
Wheelbase146 cmReference
Weight1523 to 1658 poundsReference
Front tire6.50-10Reference
2WD Rear tire12.4-16Reference
2WD Standard tires (ag)Front: 6.50-10. Rear: 12.4-16Reference
4WD Standard tires (ag)Front: 6-12. Rear: 12.4-16Reference
Lawn/turf front20x8.00-10Reference
Lawn/turf rear31x15.5-15Reference
Length270 cmReference
Width127 cmReference
2WD Weight690 kgReference
4WD Weight752 kgReference
2WD Clearance (drawbar)32 cmReference
4WD Clearance (drawbar)27 cmReference
2WD Front tread83 cmReference
4WD Front tread87 cmReference
Rear tread95 to 105 cmReference
2WD Steering wheel133 cmReference
4WD Steering wheel134 cmReference
Yanmar YM187 attachments
60" mid-mount mower deckReference
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
60" mid-mount mower deckReference
Front-end loaderReference
BackhoeReference
60" Mower deck
Typemid-mount Yanmar YCM60AReference
Type3-bladeReference
Cutting width152 cmReference
Cut height5 to 10 cmReference
Yanmar YBH670 Backhoe
Backhoe typeYanmar YBH670 BackhoeReference
Bucket width25 cmReference
Bucket width30 cmReference
Bucket width40 cmReference
Bucket width60 cmReference
Digging depth200 cmReference
Loading height132 cmReference
Swing Arc180°Reference
Bucket force1179 kgReference
Dipperstick force733 kgReference
Yanmar YM187 Height
ROPS215 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
