Tractor · 1977Unverified

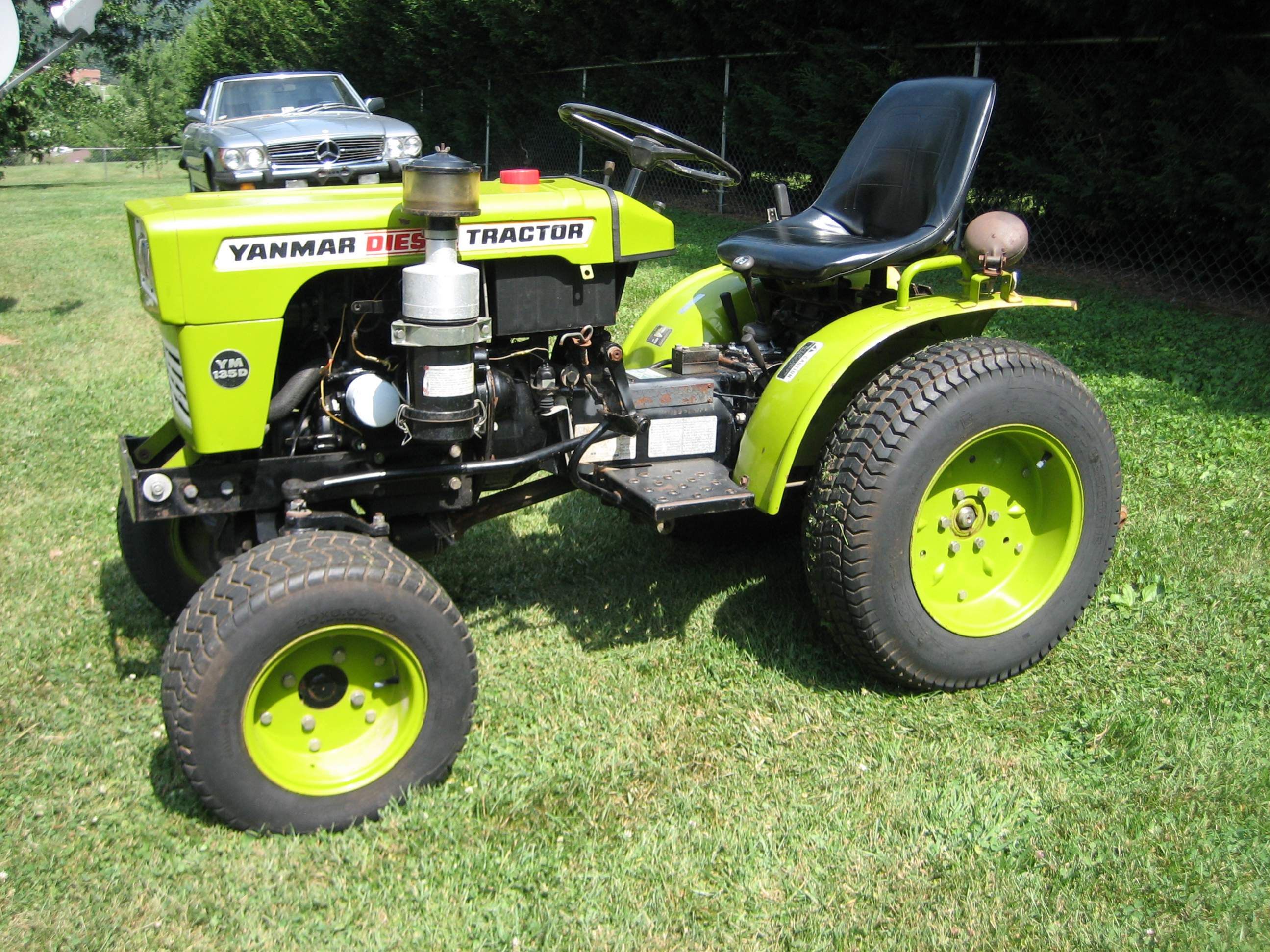

Yanmar YM195
Yanmar YM195 — Compact Utility tractor · 19 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
19 hp
Weight
1620 to 1830 pounds
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Original price was $5,400 in 1979Reference
Two- or four-wheel driveReference
Mechanical drum brakesReference
Open operator station.Reference
Variants
YM1952WDReference
YM195D4WDReference
Engine
Yanmar 1.0L 2-cyl dieselReference
Engine14.2 kWReference
Yanmar 2T84AReference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Bore/Stroke84 x 90 mmReference
Power14.2 kWReference
Compression20.5:1Reference
Rated RPM2400Reference
Firing order1-2Reference
Starter volts12Reference
Oil capacity5.0 LReference
Coolant capacity4.2 LReference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 2 reverseReference
Clutchdry discReference
Oil capacity15.1 LReference
Four gears, plus reverse, in two ranges. Tractor must be stopped, and clutch used, to shift gears or range.Reference
Capacities
Fuel22.0 LReference
PTO & Hydraulics
Hydraulic system15.1 LReference
Typeopen centerReference
Capacity15.1 LReference
Pressure152.0 barReference
Rear TypeIReference
Rear PTOtransmissionReference
Rear PTO Type540/1000Reference
Engine RPM540@2200Reference
Engine RPM1000@2200Reference
Dimensions
2WD Wheelbase149 cmReference
4WD Wheelbase155 cmReference
Weight1620 to 1830 poundsReference
Front tire4.00-12Reference
2WD Rear tire8.3/8-24Reference
2WD Standard tires (ag)Front: 4.00-12. Rear: 8.3/8-24Reference
4WD Standard tires (ag)Front: 5-14. Rear: 8.3/8-24Reference
2WD Optional tires (ag)Front: 4.00-15. Rear: 9.5/9-24Reference
4WD Optional tires (ag)Front: 5-14. Rear: 9.5/9-24Reference
2WD Lawn/turf front20x8.00-10Reference
4WD Lawn/turf front23x8.50-12Reference
Lawn/turf rear13.6-16Reference
Length282 cmReference
Width120 cmReference
2WD Shipping weight734 kgReference
4WD Shipping weight830 kgReference
Clearance (rear axle)32 cmReference
Clearance (drawbar)24 cmReference
2WD Steering wheel133 cmReference
4WD Steering wheel133 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps12Reference
Battery volts12Reference
Yanmar YM195 Height
2WD Exhaust181 cmReference
4WD Exhaust183 cmReference
Speeds
With 8.3/8-24 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
