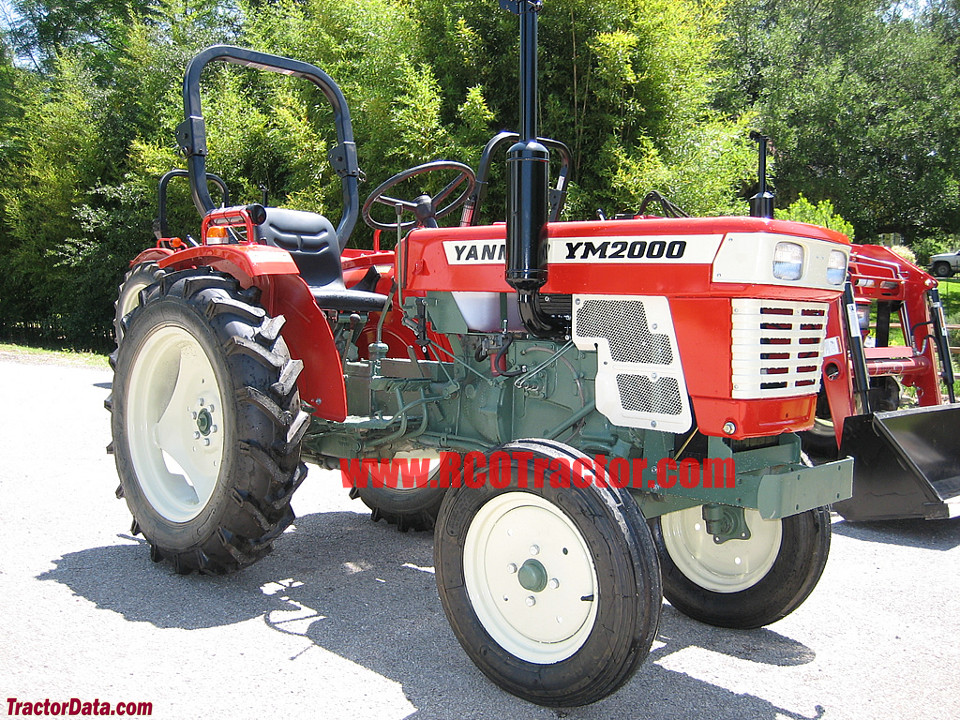

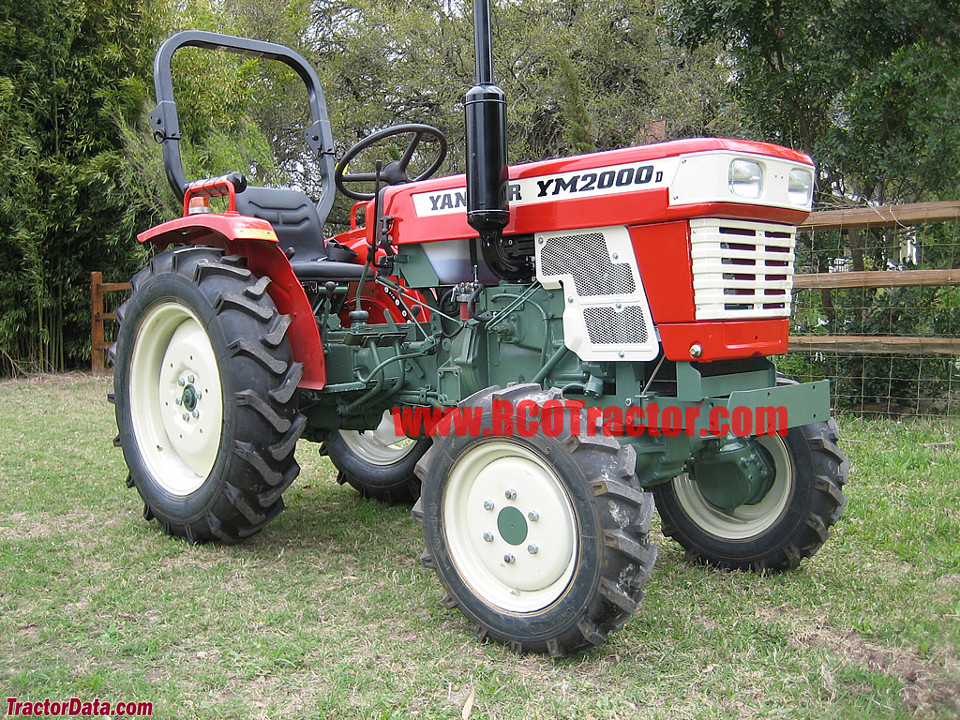

The Yanmar YM2000 is a compact tractor with a rated output of 20 hp, produced from 1975 to 1977. It features a 2-cylinder diesel liquid-cooled engine and an 8-speed gearbox with four-wheel drive. The listed weight of the tractor ranges from 1664 to 1940 pounds. It is designed for tasks covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
20 hp
Weight
1664 to 1940 pounds
Catalogue coverage
Variants represented
2
Richest spec table
42 rows
Recorded power
20 hp
Recorded weight
754 kg
Transmissions
8-speed gear
Production years
1975-1977
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
SteeringmanualReference
Mechanical drum brakesReference
Open operator station.Reference
Variants
YM20002WDReference
YM2000D4WDReference
Engine
Yanmar 1.1L 2-cyl dieselReference
Fuel tank22.0 LReference
Engine14.9 kWReference
Yanmar 2TR20Reference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement1.1 LReference
Bore/Stroke90 x 90 mmReference
Power14.9 kWReference
Rated RPM2400Reference
Starter volts12Reference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 2 reverseReference
Clutchdry discReference
PTO & Hydraulics
Rear TypeIReference
Rear lift650 kgReference
Rear PTO Type540/750/1000Reference
Dimensions
Wheelbase149 cmReference
Weight1664 to 1940 poundsReference
Front tire4.00x15Reference
Rear tire9x24Reference
Ag front4.00x15Reference
Ag rear9x24Reference
Length252 cmReference
Width114 cmReference
Height177 cmReference
2WD Shipping weight754 kgReference
4WD Shipping weight879 kgReference
Ground clearance35 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
