Tractor · 1980Unverified

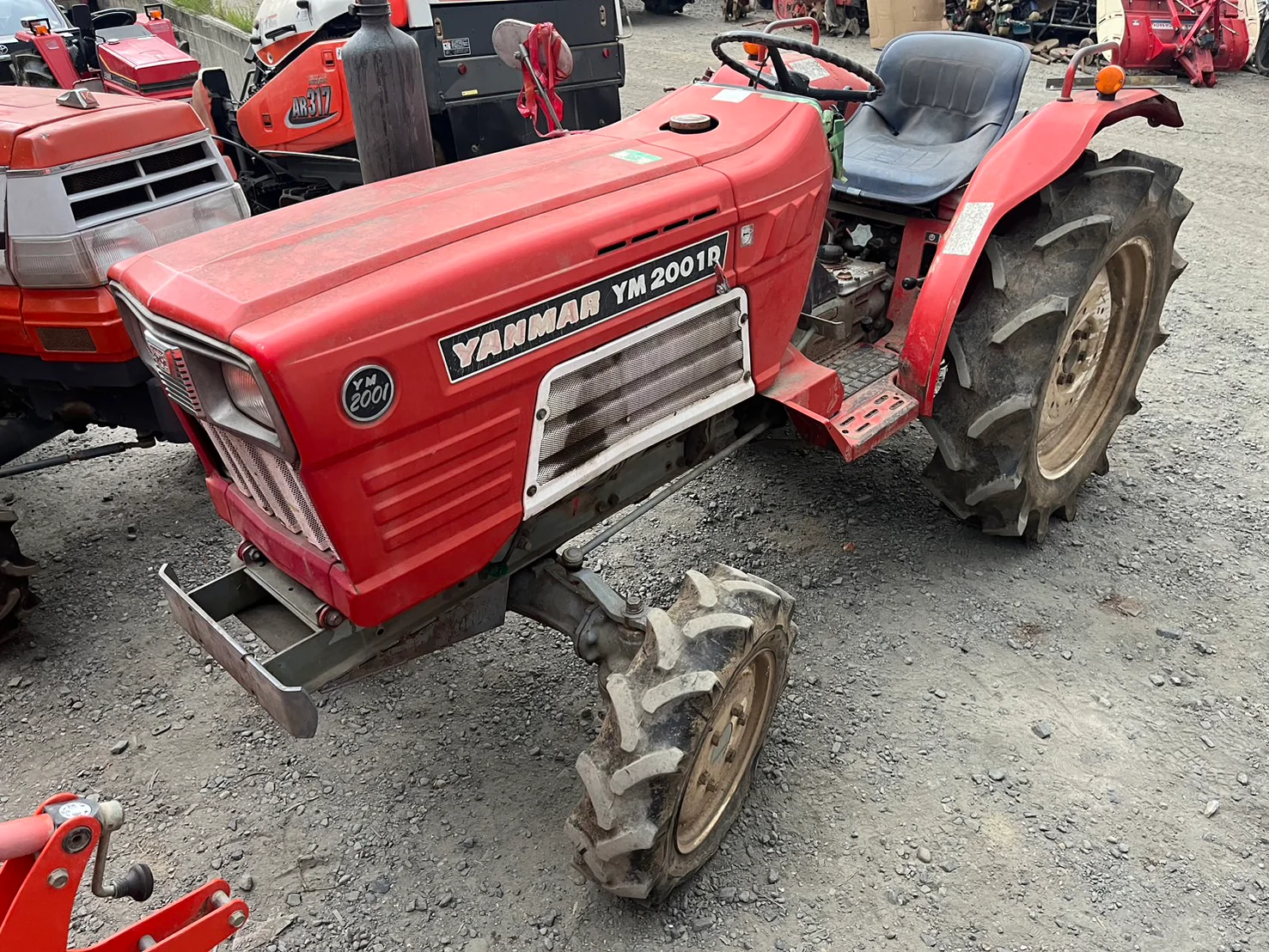

Yanmar YM2001
Yanmar YM2001 — YM01 Series · 20 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
20 hp
Weight
1896 to 2039 pounds
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
YM20012WD gearReference
YM2001D4WD gearReference
YM20102WD power shiftReference
YM2010D4WD power shiftReference
Engine
Yanmar 1.4L 3-cyl dieselReference
Engine14.9 kWReference
Yanmar 3T82BReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.4 LReference
Bore/Stroke82 x 86 mmReference
Power14.9 kWReference
Rated RPM2500Reference
Starter volts12Reference
Transmission
15-speed gearReference
TypegearReference
Gears15 forward and 5 reverseReference
Three gears, plus reverse, in five ranges.Reference
Transmission1:2:3:4:5:6:7:8:9:10:11:12:13:14:15:R1:R2:R3:R4:R5Reference
Transmission:0.10:0.14:0.18:0.58:0.80:1.03:1.14:1.55:2.01:2.22:3.01:3.90:4.56:6.26:8.77:0.14:0.76:1.50:2.91:6.05Reference
Dimensions
Wheelbase155 cmReference
Weight1896 to 2039 poundsReference
Front tire4.00-15Reference
2WD Rear tire9.5-24Reference
2WD Standard tires (ag)Front: 4.00-15. Rear: 9.5-24Reference
4WD Standard tires (ag)Front: 6-14. Rear: 9.5-24Reference
Length287 cmReference
Width122 cmReference
Height184 cmReference
2WD Weight860 kgReference
4WD Weight924 kgReference
2WD Ground clearance36 cmReference
4WD Ground clearance32 cmReference
2WD Front tread96 cmReference
4WD Front tread100 cmReference
Rear tread96/107 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
