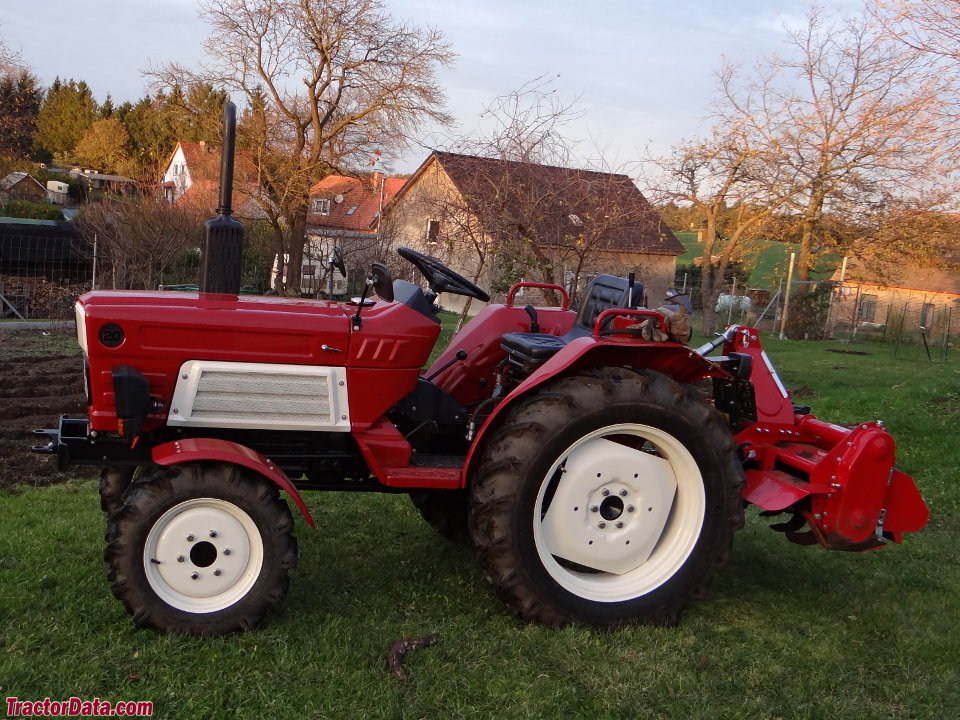

The Yanmar YM2002 is a compact tractor rated at 20 hp, making it a suitable option for smaller-scale agricultural tasks. Produced in the years 1982 and 1983, it is equipped with a 3-cylinder diesel liquid-cooled engine and powershift transmission, driving through four-wheel drive. The tractor weighs 1049 kg and is designed for use in areas of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
20 hp
Weight
1049 kg
Catalogue coverage
Variants represented
2
Richest spec table
24 rows
Recorded power
20 hp
Recorded weight
1049 kg
Transmissions
15-speed gear
Production years
1982-1983
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
YM20022WD gearReference
YM2002D4WD gearReference
YM20202WD power shiftReference
YM2020D4WD power shiftReference
Engine
Yanmar 1.3L 3-cyl dieselReference
Engine14.9 kWReference
Yanmar 3T80U-NAReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Power14.9 kWReference
Rated RPM2400Reference
Transmission
15-speed gearReference
TypegearReference
Gears15 forward and 5 reverseReference
Dimensions
Weight1049 kgReference
Length264 cmReference
Width114 cmReference
Height180 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
