Tractor · 1980Unverified

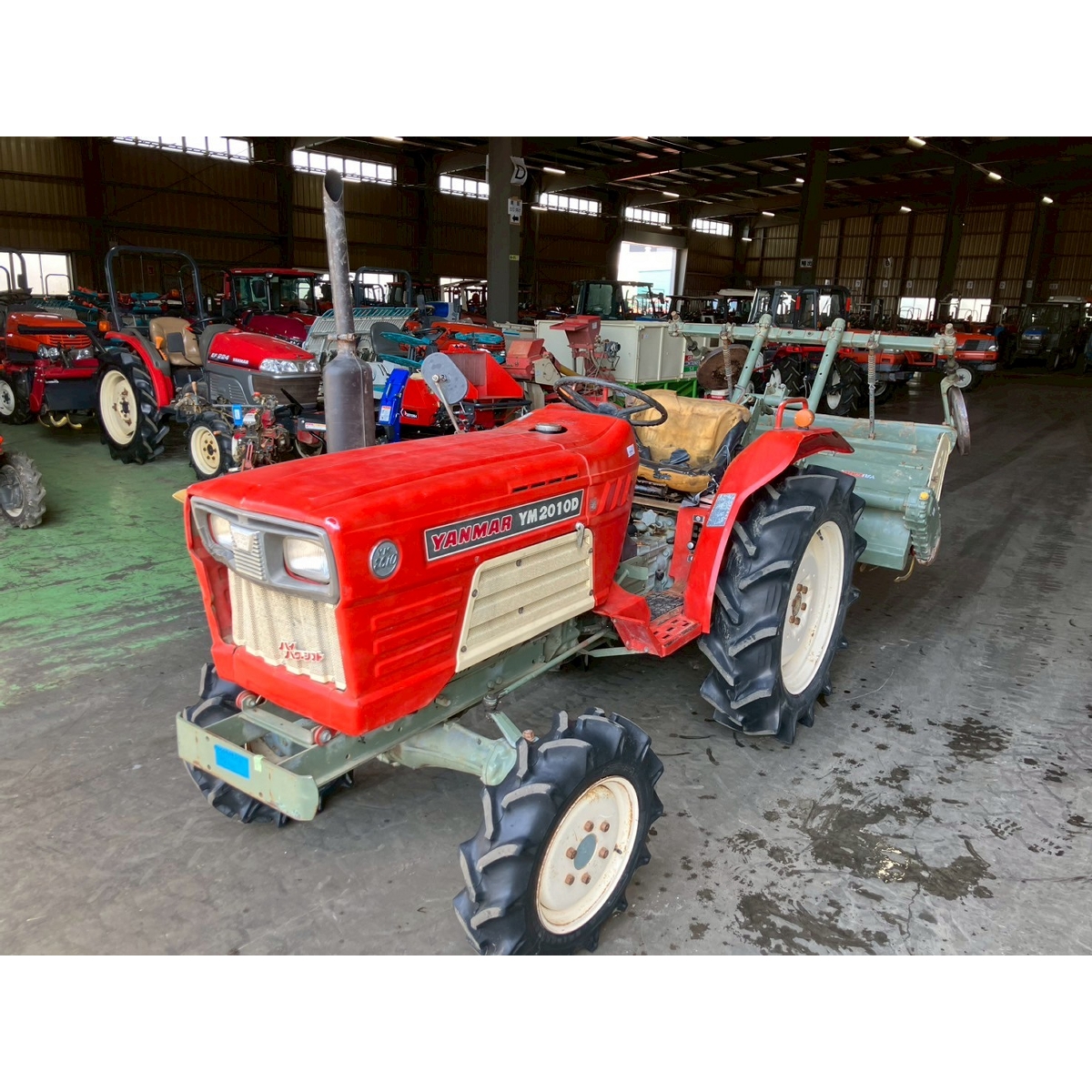

Yanmar YM2010
Yanmar YM2010 — YM10 Series · 20 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
20 hp
Weight
1918 to 2061 pounds
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
YM20012WD gearReference
YM2001D4WD gearReference
YM20102WD power shiftReference
YM2010D4WD power shiftReference
Engine
Yanmar 1.4L 3-cyl dieselReference
Engine14.9 kWReference
Yanmar 3T82BReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.4 LReference
Bore/Stroke82 x 86 mmReference
Power14.9 kWReference
Starter volts12Reference
Transmission
15-speed partial power shiftReference
Typepartial power shiftReference
Gears15 forward and 5 reverseReference
Five ranges with three power shift gears (plus reverse) per range.Reference
Dimensions
Weight1918 to 2061 poundsReference
Length287 cmReference
Width121 cmReference
Height185 cmReference
2WD Weight870 kgReference
4WD Weight934 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
