Tractor · 1982Unverified

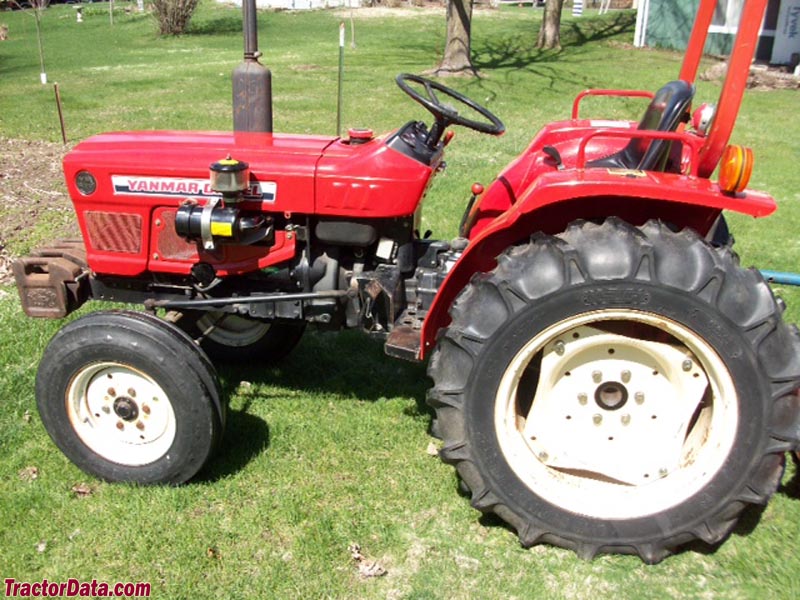

Yanmar YM220
Yanmar YM220 — Compact Utility tractor · 22 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
22 hp
Weight
1840 to 1871 pounds
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Built in JapanReference
Original price was $8,300 in 1991Reference
Two- or four-wheel driveReference
Manual steeringReference
Drum brakesReference
Two-post fixed ROPS.Reference
Variants
YM2202WD gear shiftReference
YM220D4WD gear shiftReference
YM2262WD power shiftReference
YM226D4WD power shiftReference
Engine
Yanmar 1.1L 3-cyl dieselReference
Fuel tank20.1 LReference
Engine16.4 kWReference
Yanmar 3T75HAReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.1 LReference
Bore/Stroke75 x 85 mmReference
Power16.4 kWReference
Compression22.5:1Reference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 2 reverseReference
Clutchdry discReference
PTO & Hydraulics
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)529 kgReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2400Reference
Dimensions
2WD Wheelbase155 cmReference
4WD Wheelbase155 cmReference
Weight1840 to 1871 poundsReference
Front tire6.00x14Reference
2WD Rear tire11.2x24Reference
2WD Standard tires (ag)Front: 6.00x14. Rear: 11.2x24Reference
4WD Standard tires (ag)Front: 6x14. Rear: 9.5x24Reference
Lawn/turf front25x8.50-14Reference
Lawn/turf rear13.6x16.1Reference
Length274 cmReference
2WD Width126 cmReference
4WD Width123 cmReference
2WD Weight848 kgReference
4WD Weight834 kgReference
2WD Ground clearance35 cmReference
4WD Ground clearance32 cmReference
2WD Front tread97 cmReference
4WD Front tread92 cmReference
Rear tread100 cmReference
Yanmar YM220 attachments
60" mid-mount mower deckReference
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
60" mid-mount mower deckReference
Front-end loaderReference
BackhoeReference
60" Mower deck
Typemid-mount Yanmar YCM60AReference
Type3-bladeReference
Cutting width152 cmReference
Cut height5 to 10 cmReference
Yanmar YBH770 Backhoe
Backhoe typeYanmar YBH770 BackhoeReference
Bucket width25 cmReference
Bucket width30 cmReference
Bucket width40 cmReference
Bucket width60 cmReference
Digging depth231 cmReference
Loading height172 cmReference
Swing Arc180°Reference
Bucket force1179 kgReference
Dipperstick force1031 kgReference
Yanmar YM220 Height
ROPS219 cmReference
2WD Exhaust182 cmReference
4WD Exhaust181 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
