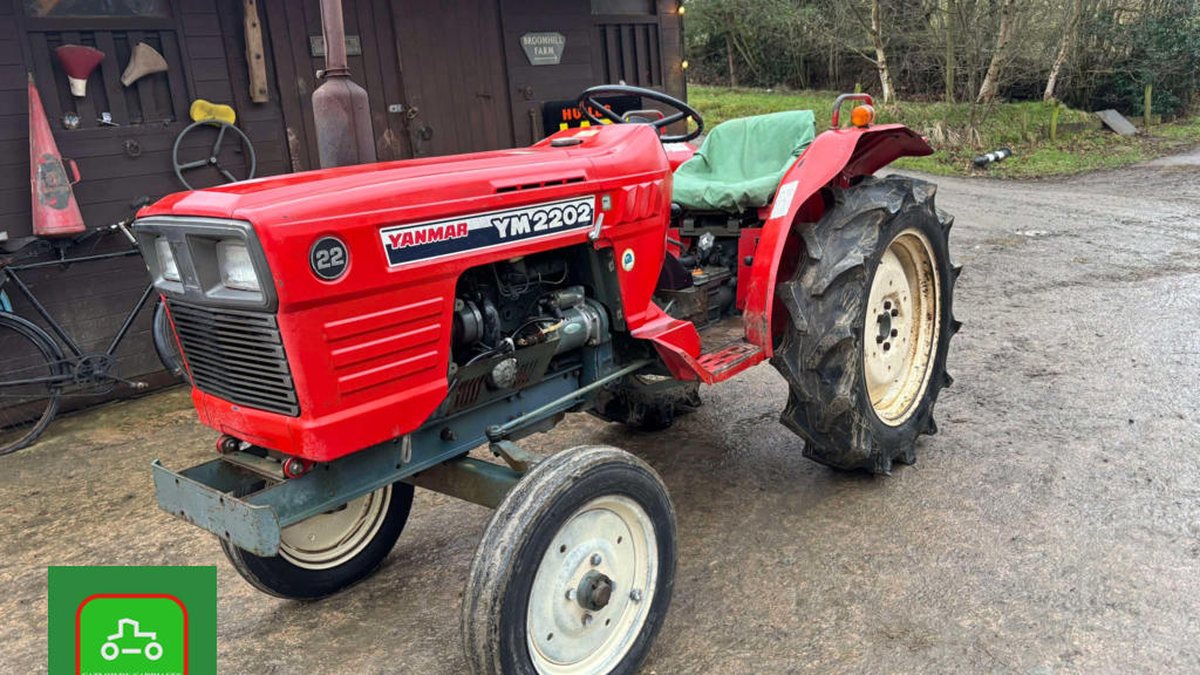

The Yanmar YM2202 is a compact tractor with a rated output of 22 hp, positioned within its class as a smaller option. Manufactured between 1982 and 1983, this model features a 3-cylinder diesel liquid-cooled engine, which powers a four-wheel drive system equipped with a powershift transmission. The tractor is designed for tasks in areas of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
22 hp
Catalogue coverage
Variants represented
2
Richest spec table
22 rows
Recorded power
22 hp
Transmissions
15-speed gear
Production years
1982-1983
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
YM22022WD gearReference
YM2202D4WD gearReference
YM22202WD power shiftReference
YM2220D4WD power shiftReference
Engine
Yanmar 1.4L 3-cyl dieselReference
Engine16.4 kWReference
Yanmar 3T84Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.4 LReference
Bore/Stroke84 x 86 mmReference
Power16.4 kWReference
StarterelectricReference
Starter volts12Reference
Transmission
15-speed gearReference
TypegearReference
Gears15 forward and 5 reverseReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
