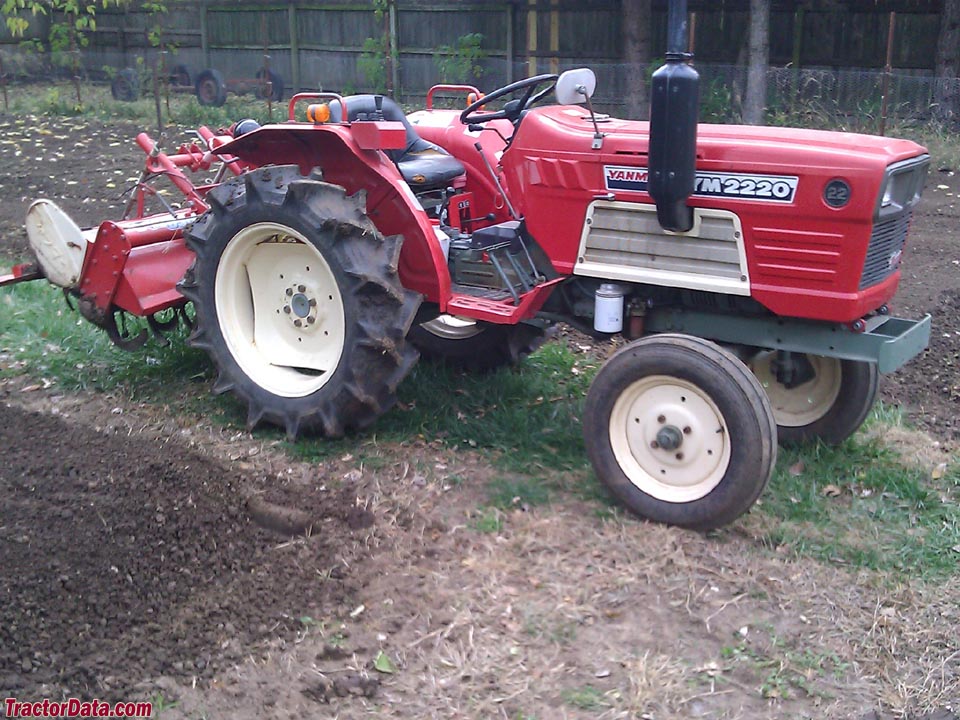

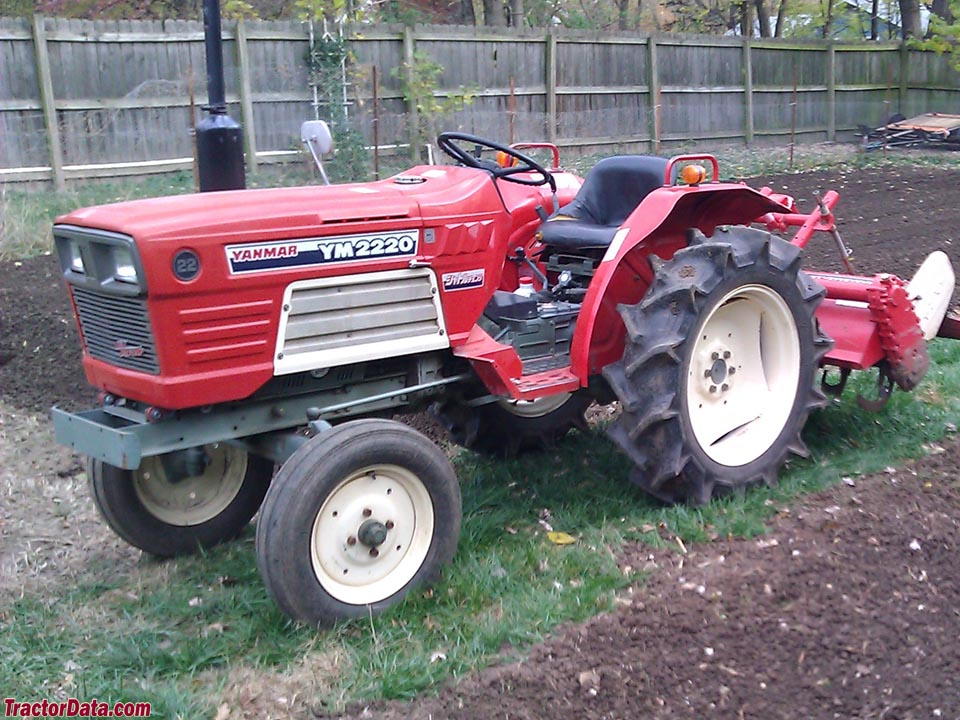

The Yanmar YM2220 is a tractor model rated at 22 horsepower, placing it in the lighter end of its class. It was manufactured from 1982 to 1983. This model features a 3-cylinder diesel liquid-cooled engine, coupled with four-wheel drive and a powershift transmission. It has an operating weight of 1195 kg and is suited for operations of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
22 hp
Weight
1195 kg
Catalogue coverage
Variants represented
2
Richest spec table
27 rows
Recorded power
22 hp
Recorded weight
1195 kg
Transmissions
12-speed three-speed power shift
Production years
1982-1983
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
YM20022WD gearReference
YM2002D4WD gearReference
YM20202WD power shiftReference
YM2020D4WD power shiftReference
Engine
Yanmar 1.4L 3-cyl dieselReference
Engine16.4 kWReference
Yanmar 3T84Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.4 LReference
Bore/Stroke84 x 86 mmReference
Power16.4 kWReference
Starter volts12Reference
Transmission
12-speed three-speed power shiftReference
Typethree-speed power shiftReference
Gears12 forward and 4 reverseReference
Dimensions
Weight1195 kgReference
Length287 cmReference
Width121 cmReference
Height185 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
