Tractor · 1980Unverified

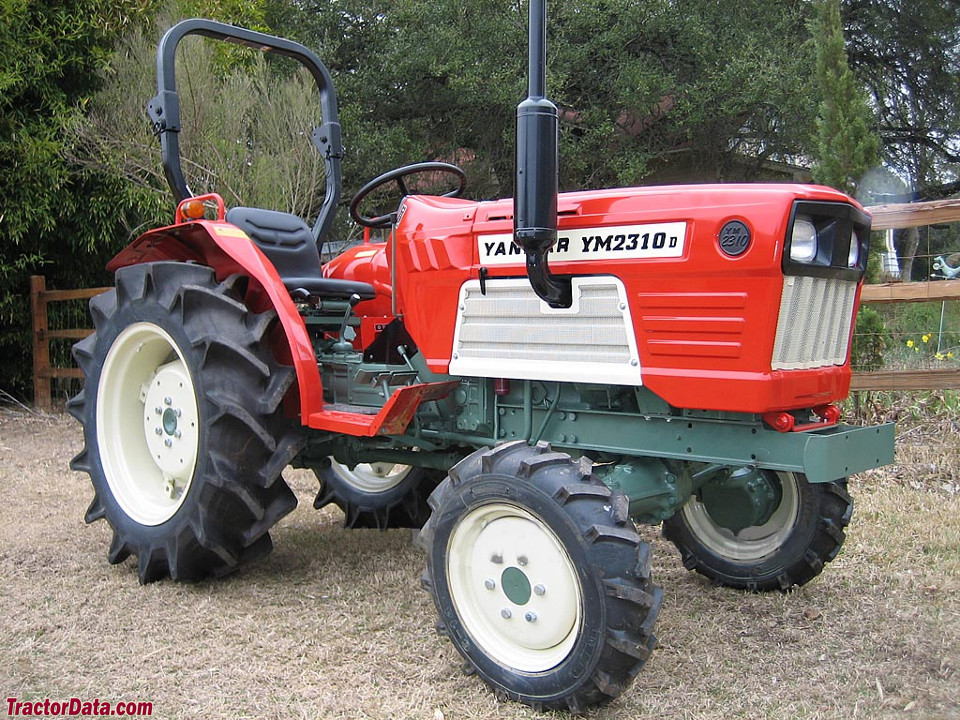

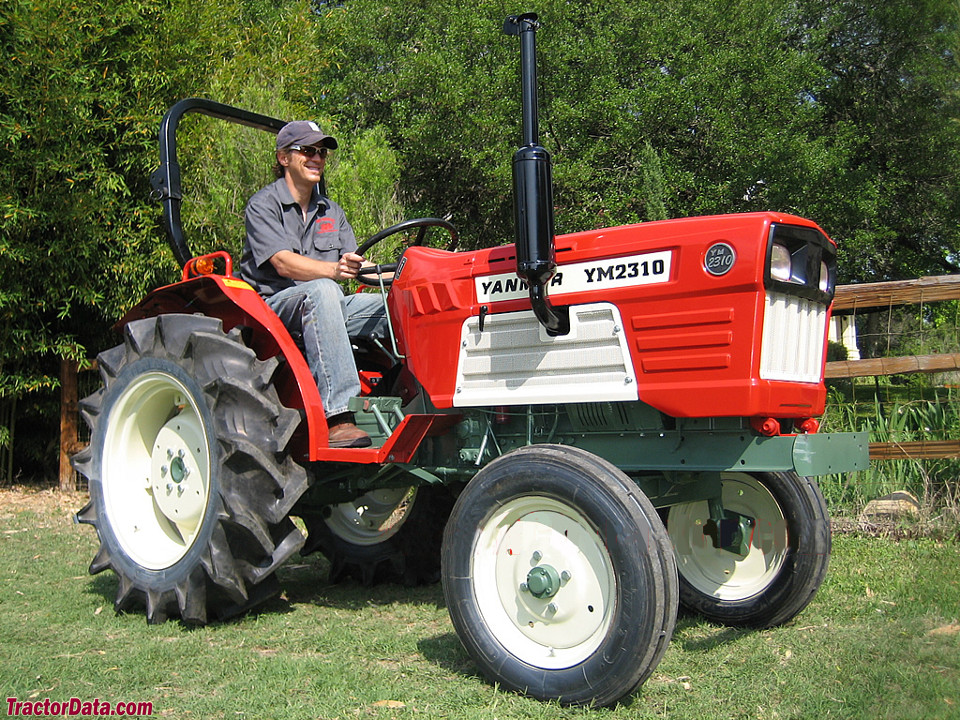

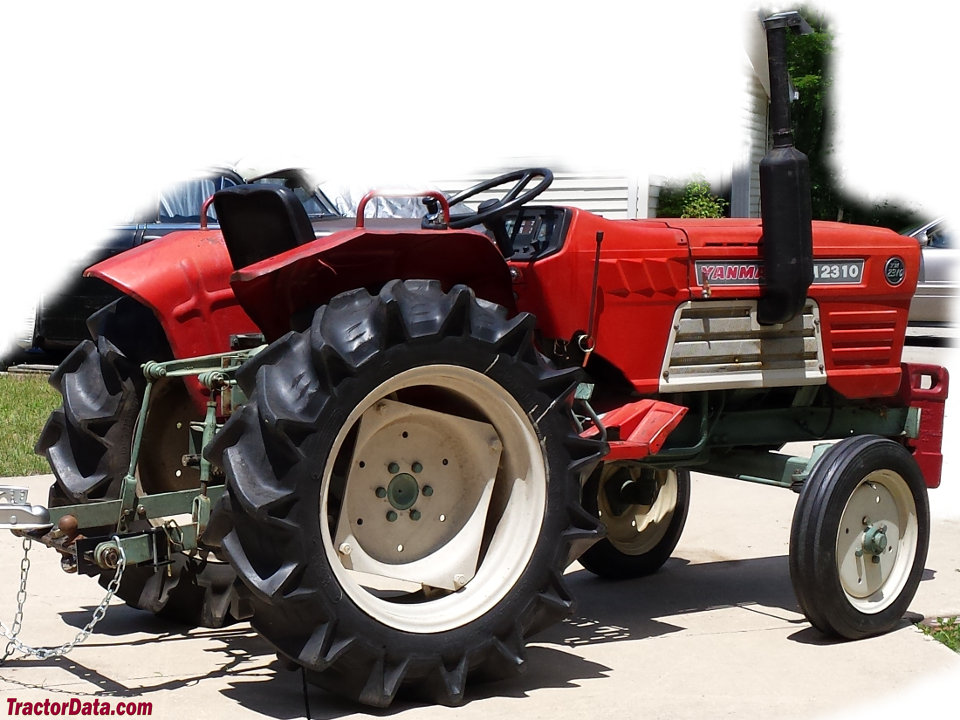

Yanmar YM2310
Yanmar YM2310 — YM10 Series · 23 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
23 hp
Weight
1984 to 2130 pounds
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
YM23102WDReference
YM2310D4WDReference
Engine
Yanmar 1.4L 3-cyl dieselReference
Engine16.9 kWReference
Yanmar 3T84HReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.4 LReference
Bore/Stroke84 x 86 mmReference
Power16.9 kWReference
Transmission
15-speed partial power shiftReference
Typepartial power shiftReference
Gears15 forward and 5 reverseReference
Five ranges with three power shift gears (plus reverse) per range.Reference
Dimensions
Weight1984 to 2130 poundsReference
Length287 cmReference
Width127 cmReference
Height185 cmReference
2WD Weight899 kgReference
4WD Weight966 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
