Tractor · 1982Unverified

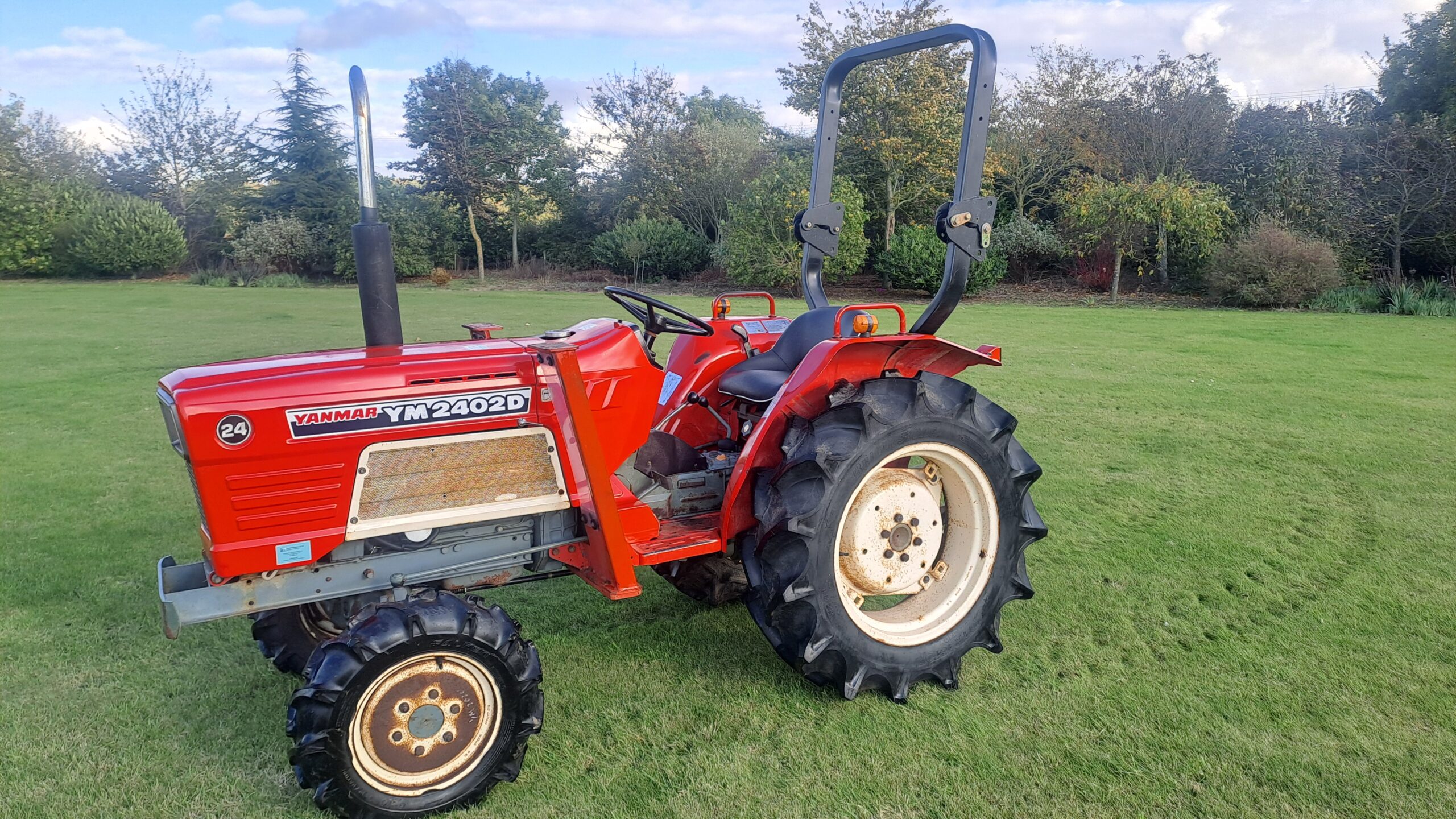

Yanmar YM2402

Name: Yanmar YM2402
Brand: Yanmar

Yanmar YM2402 — YM02 Series · 24 hp. Reference specifications; pending source verification.

The Yanmar YM2402 is a tractor with a rated power of 24 hp, situated at the lower end of its class in terms of engine power. It was manufactured in the years 1982 and 1983. The tractor features a 3-cylinder diesel liquid-cooled engine, paired with four-wheel drive and a powershift transmission. Its operating weight is listed at 1229 kg, making it suitable for operations covering areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

24 hp

Weight

1229 kg

Catalogue coverage

Variants represented

Richest spec table

26 rows

Recorded power

24 hp

Recorded weight

1229 kg

Transmissions

15-speed gear

Production years

1982-1983

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerYanmarReference

Compact Utility tractorReference

Two- or four-wheel driveReference

Open operator station.Reference

Variants

YM24022WD gearReference

YM2402D4WD gearReference

YM24202WD power shiftReference

YM2420D4WD power shiftReference

Engine

Yanmar 1.4L 3-cyl dieselReference

Engine17.7 kWReference

Yanmar 3T84HReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.4 LReference

Bore/Stroke84 x 86 mmReference

Power17.7 kWReference

Rated RPM2500Reference

Transmission

15-speed gearReference

TypegearReference

Gears15 forward and 5 reverseReference

Three gears, plus reverse, in five ranges.Reference

Dimensions

Weight1229 kgReference

Length287 cmReference

Width127 cmReference

Height185 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
