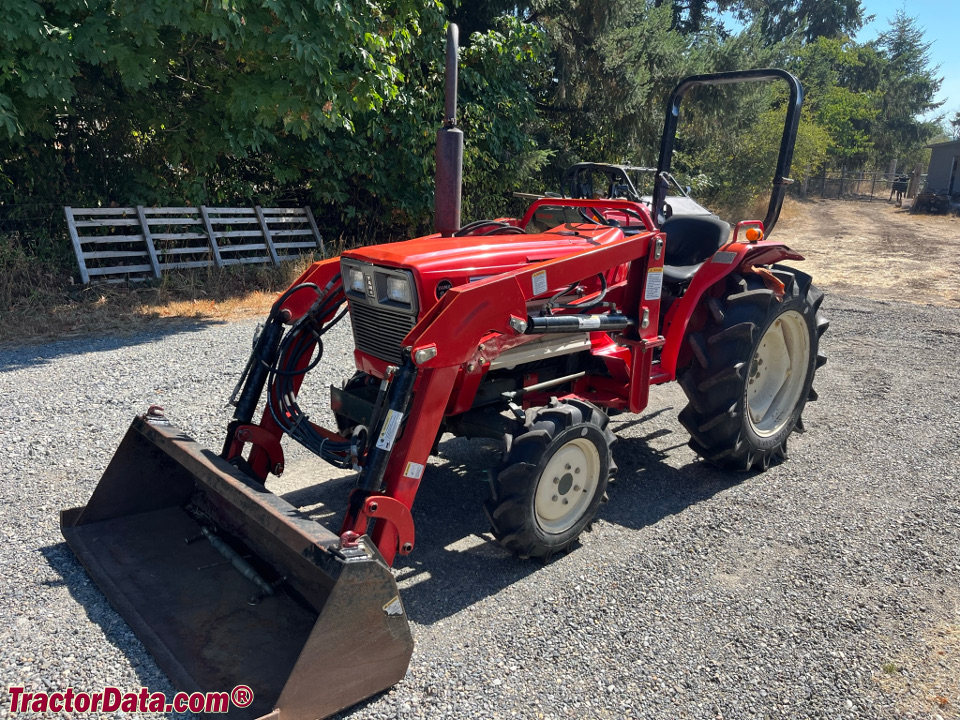

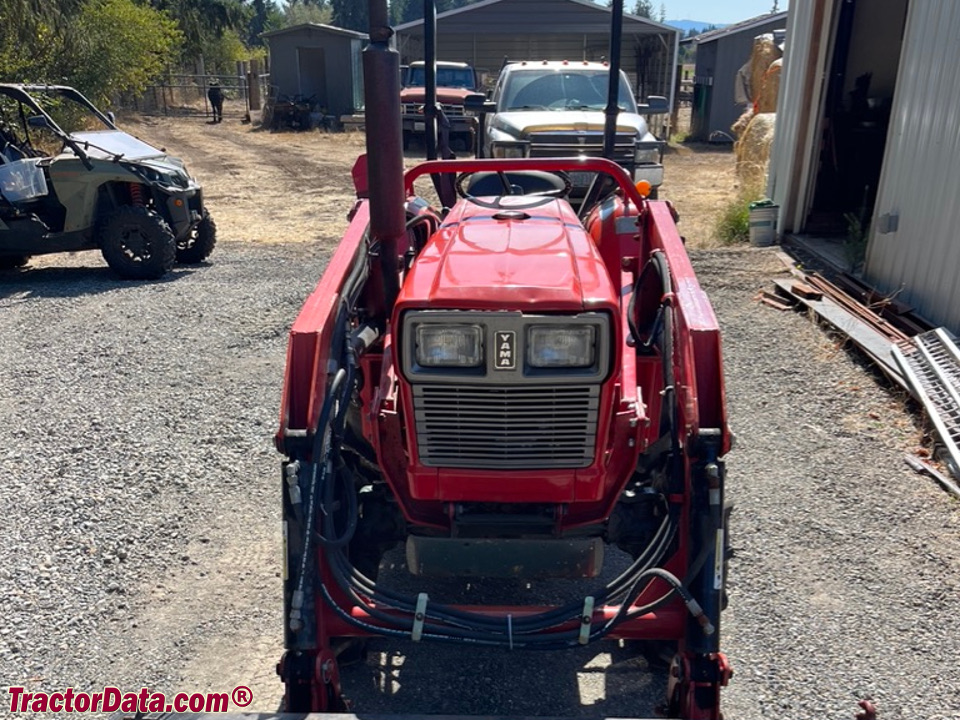

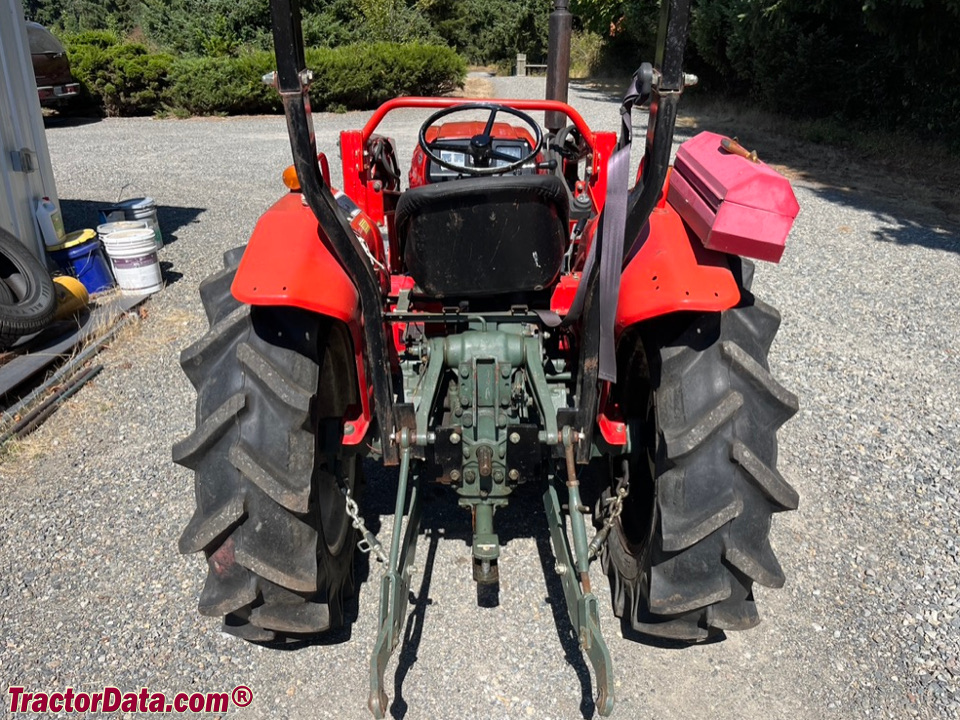

The Yanmar YM2420 is a compact tractor with a rated power output of 24 hp. Manufactured between 1982 and 1983, it features a 3-cylinder diesel liquid-cooled engine and a four-wheel drive with powershift transmission. The tractor weighs 1235 kg and is suited for tasks covering approximately 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
24 hp
Weight
1235 kg
Catalogue coverage
Variants represented
2
Richest spec table
30 rows
Recorded power
24 hp
Recorded weight
1235 kg
Transmissions
12-speed partial power shift
Production years
1982-1983
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
YM24022WD gearReference
YM2402D4WD gearReference
YM24202WD power shiftReference
YM2420D4WD power shiftReference
Engine
Yanmar 1.4L 3-cyl dieselReference
Engine17.9 kWReference
Yanmar 3T84HReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.4 LReference
Bore/Stroke84 x 86 mmReference
Power17.9 kWReference
Rated RPM2500Reference
Starter volts12Reference
Transmission
12-speed partial power shiftReference
Typepartial power shiftReference
Gears12 forward and 4 reverseReference
Three power shift gears, plus reverse, with four ranges.Reference
PTO & Hydraulics
Rear PTO Type540 (1.375)Reference
Dimensions
Weight1235 kgReference
Length287 cmReference
Width127 cmReference
Height185 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
