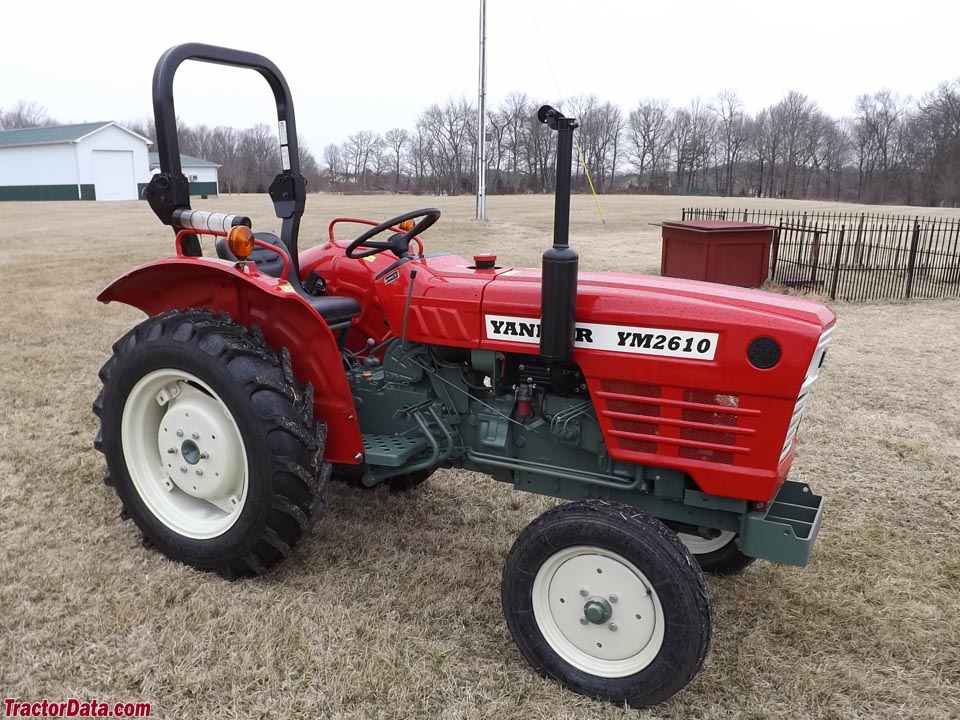

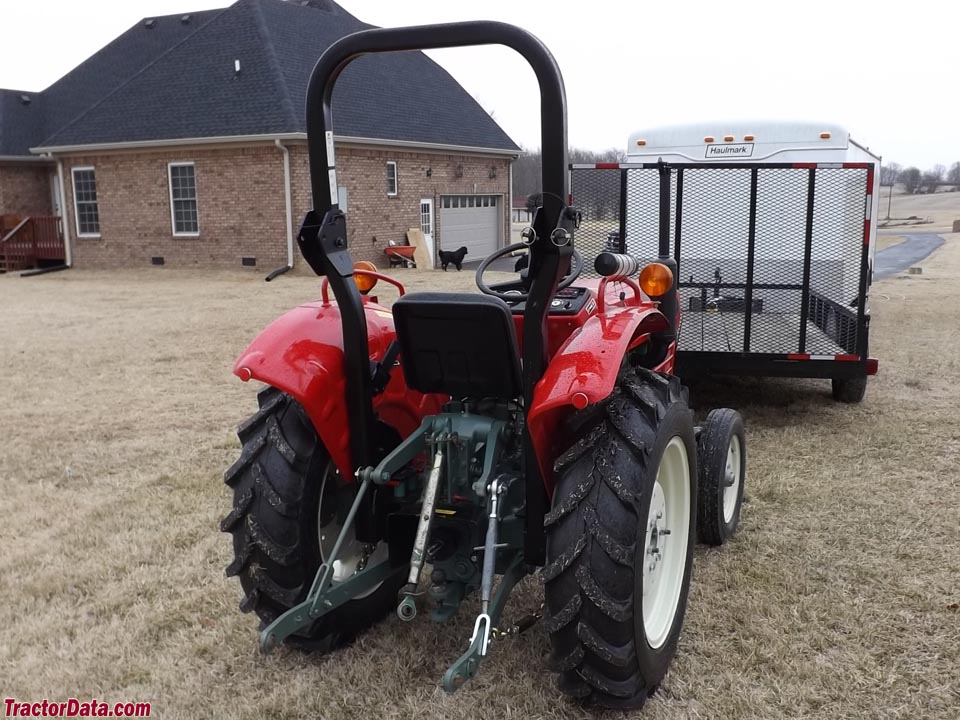

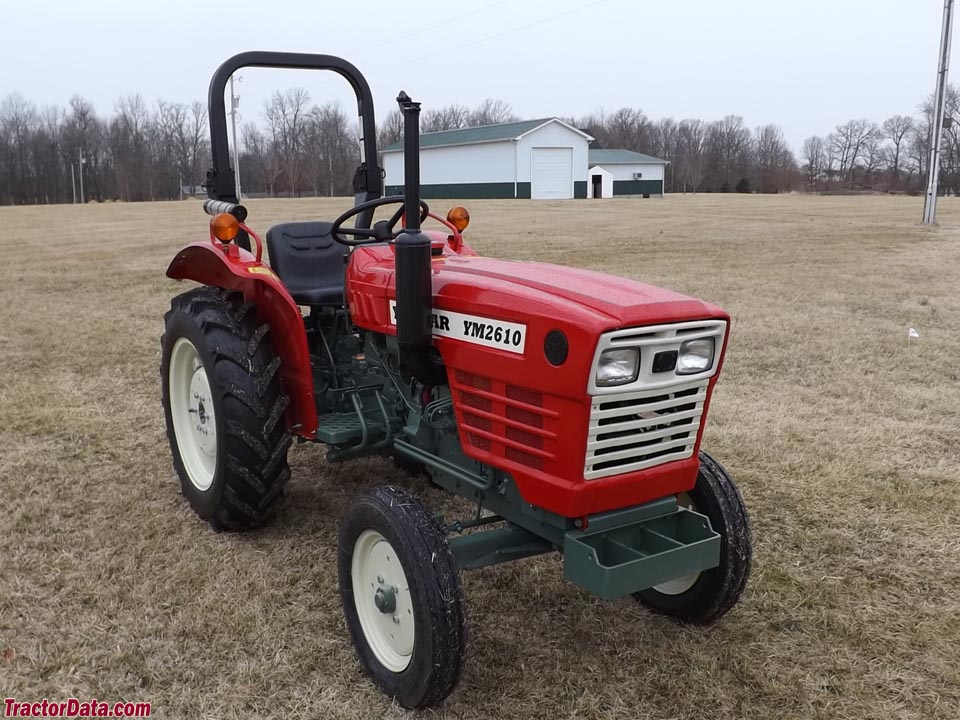

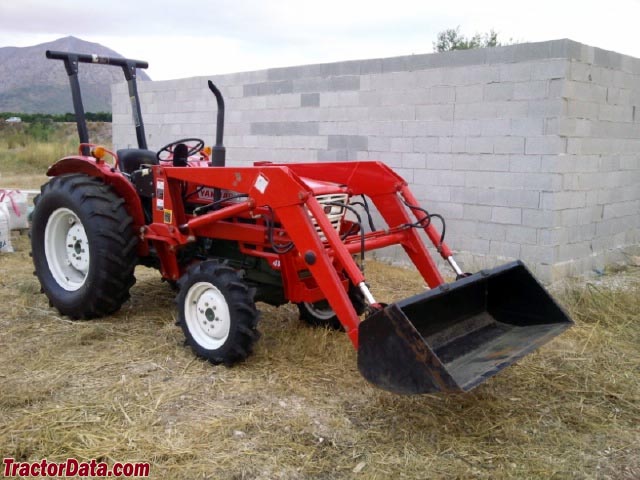

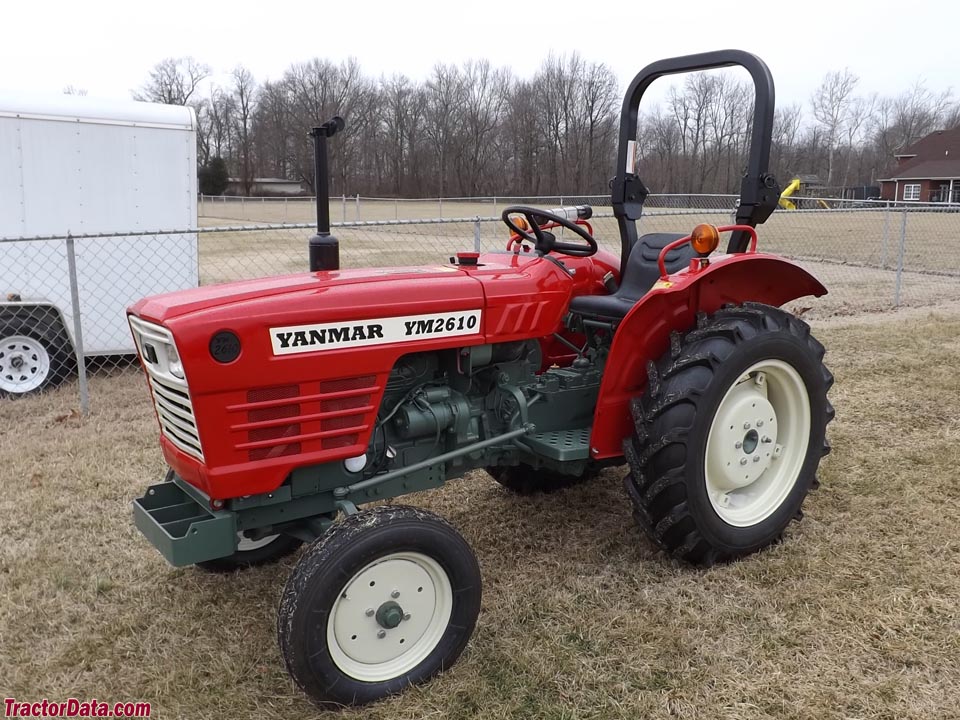

The Yanmar YM2610 is a tractor with a power output of approximately 26 hp, categorising it at the lower end of its class. It was manufactured from 1979 to 1981. The tractor features a 3-cylinder diesel liquid-cooled engine and four-wheel drive with a powershift transmission. Its operating weight is listed as 1230 kg, suitable for operations involving up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
26 hp
Weight
1230 kg
Catalogue coverage
Variants represented
2
Richest spec table
27 rows
Recorded power
26 hp
Recorded weight
1230 kg
Transmissions
15-speed partial power shift
Production years
1979-1981
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
YM26102WDReference
YM2610D4WDReference
Engine
Yanmar 1.3L 3-cyl dieselReference
Engine19.4 kWReference
Yanmar 3T80-DReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Bore/Stroke80 x 85 mmReference
Power19.4 kWReference
Starter volts12Reference
Transmission
15-speed partial power shiftReference
Typepartial power shiftReference
Gears15 forward and 5 reverseReference
Five ranges with three power shift gears (plus reverse) per range.Reference
PTO & Hydraulics
Rear PTO Type542/685/1005/1268Reference
Dimensions
Weight1230 kgReference
Length299 cmReference
Width134 cmReference
Height187 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
