Tractor · 1982Unverified

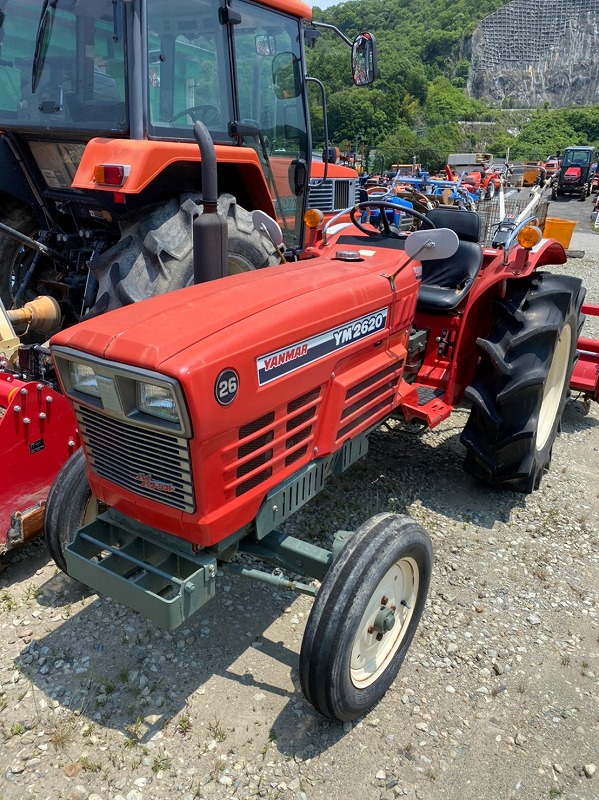

Yanmar YM2620
Yanmar YM2620 — Compact Utility tractor · 26 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
26 hp
Weight
3582 to 3813 pounds
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Power steeringReference
Open operator station.Reference
Variants
YM26202WDReference
YM2620D4WDReference
Engine
Yanmar 1.4L 3-cyl dieselReference
Engine19.4 kWReference
Yanmar 3T84Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.4 LReference
Bore/Stroke84 x 86 mmReference
Power19.4 kWReference
Starter volts12Reference
Transmission
12-speed partial power shiftReference
Typepartial power shiftReference
Gears12 forward and 4 reverseReference
Three power shift gears, plus reverse, with four ranges.Reference
PTO & Hydraulics
Rear PTO Type540 (1.375)Reference
Dimensions
Weight3582 to 3813 poundsReference
Length317 cmReference
Width147 cmReference
Height187 cmReference
2WD Weight1624 kgReference
4WD Weight1729 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
