Tractor · 1972Unverified

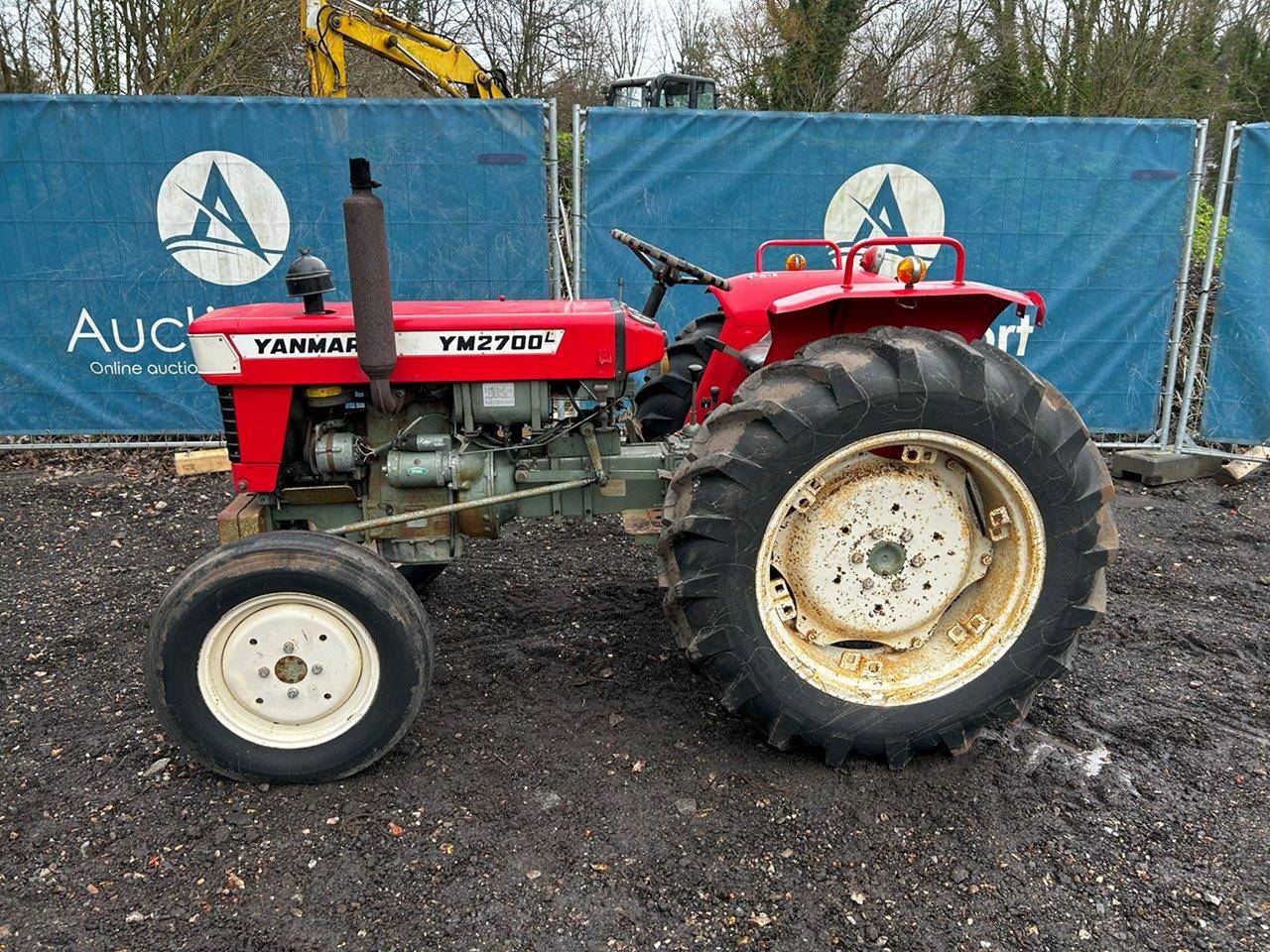

Yanmar YM2700
Yanmar YM2700 — Compact Utility tractor · 27 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
27 hp
Weight
980 kg
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station.Reference
Engine
Yanmar 1.3L 2-cyl dieselReference
Engine19.8 kWReference
Yanmar 2TR27Reference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Power19.8 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 2 reverseReference
Clutchdry discReference
Dimensions
Wheelbase160 cmReference
Weight980 kgReference
Front tire5.00-15Reference
Rear tire10-24Reference
Standard tires (ag)Front: 5.00-15. Rear: 10-24Reference
Length277 cmReference
Width134 cmReference
Height189 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
