Tractor · 1981Unverified

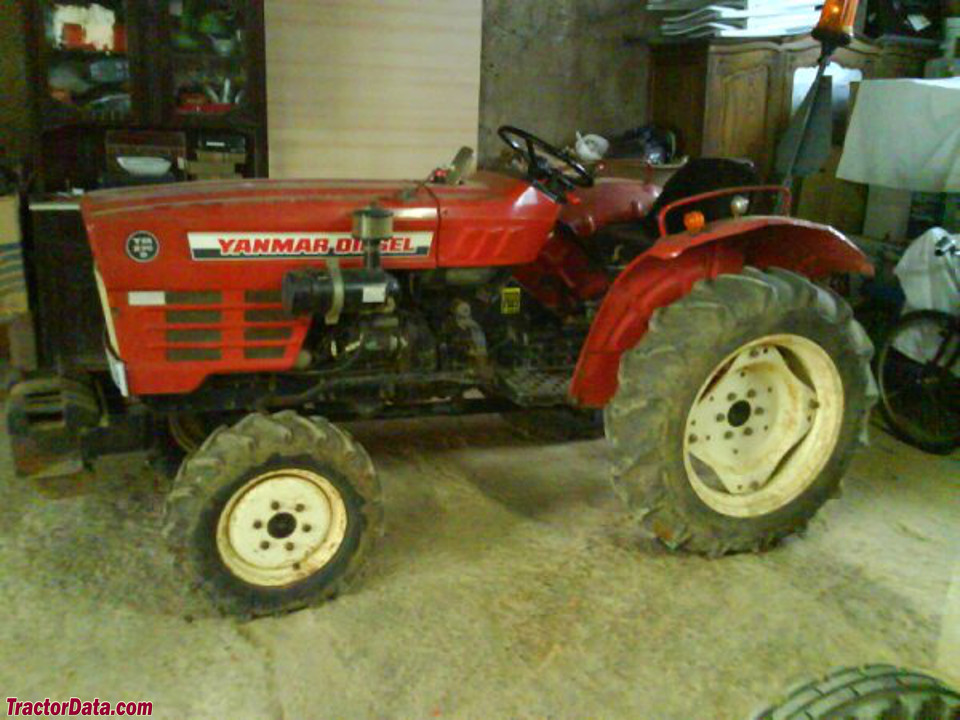

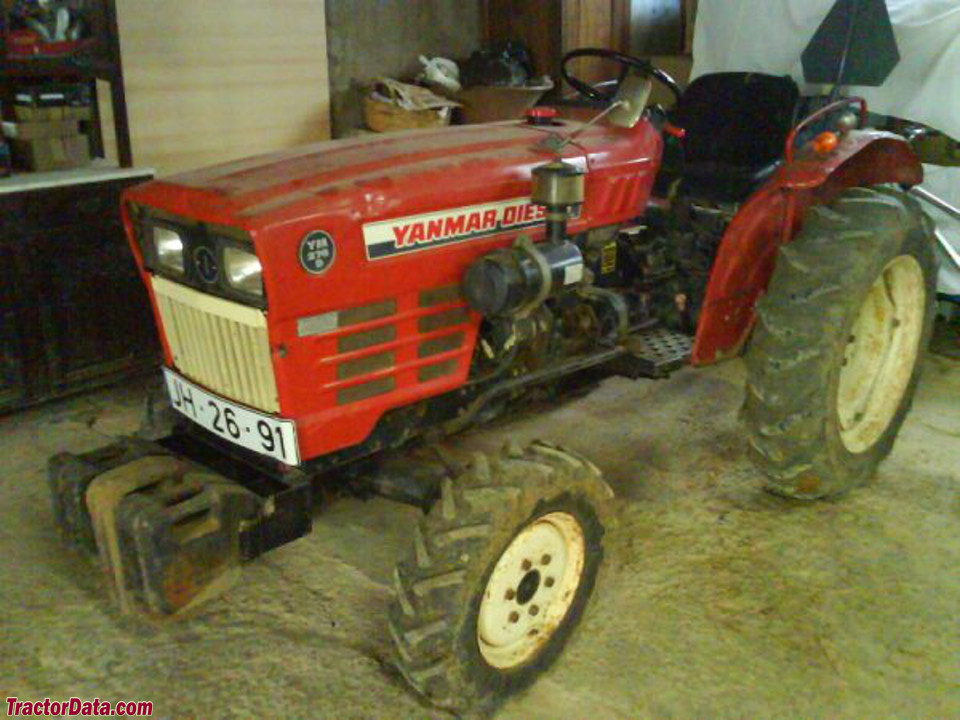

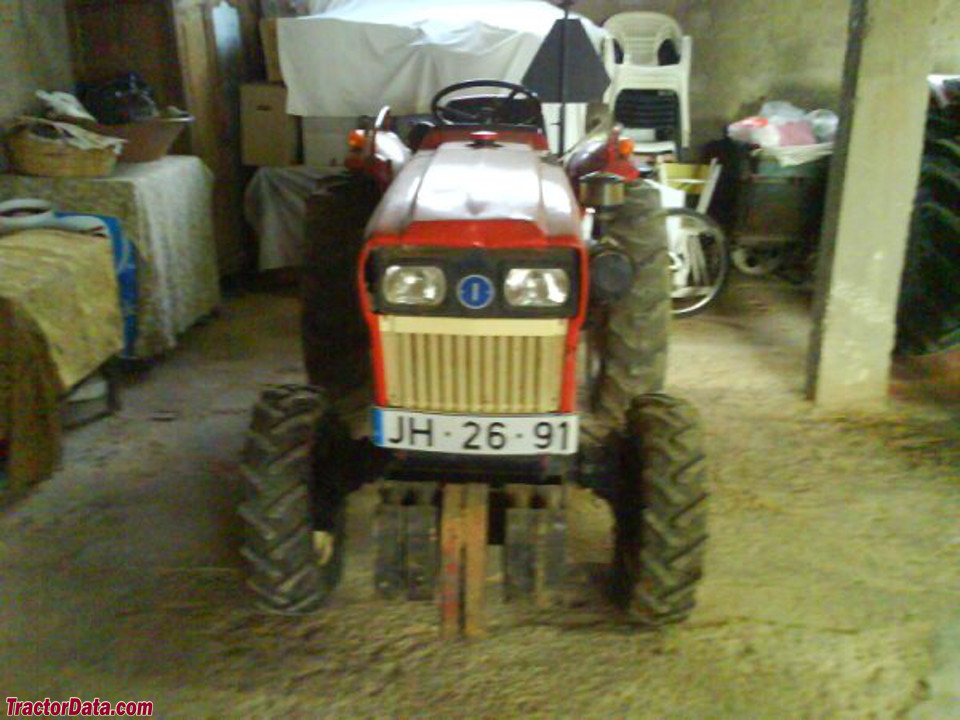

Yanmar YM276
Yanmar YM276 — Compact Utility tractor · 23 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
23 hp
Max power
13.2 kW
Weight
2028 to 2146 pounds
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Built in JapanReference
Original price was $10,300 in 1991Reference
Two- or four-wheel driveReference
Manual steeringReference
Mechanical dry, internal expanding shoe brakesReference
Two-post ROPS.Reference
Variants
YM2762WDReference
YM276D4WDReference
Engine
Yanmar 1.4L 3-cyl dieselReference
Fuel tank31.8 LReference
Engine20.1 kWReference
Drawbar (claimed)12.7 kWReference
Drawbar (tested)13.2 kWReference
Yanmar 3T84HAReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.4 LReference
Bore/Stroke84 x 85 mmReference
Power20.1 kWReference
Compression20:1Reference
Rated RPM2600Reference
Firing order1-3-2Reference
Starter volts12Reference
Power at rated engine speed17.2 kWReference
Max power13.2 kWReference
Transmission
12-speed three-speed power shiftReference
Typethree-speed power shiftReference
Gears12 forward and 4 reverseReference
Clutchdry discReference
Three power shift gears, plus reverse, in four ranges.Reference
PTO & Hydraulics
PTO (claimed)17.2 kWReference
PTO (tested)17.2 kWReference
Typeopen center, constant flowReference
Total flow31.0 lpmReference
Rear TypeIReference
Controlposition and draft controlReference
Rear lift (at ends)650 kgReference
Rear PTO Type540Reference
Power at rated PTO speed17.0 kWReference
Dimensions
Wheelbase152 cmReference
Weight2028 to 2146 poundsReference
Front tire6.00-14Reference
2WD Rear tire12.4-24Reference
2WD Standard tires (ag)Front: 6.00-14. Rear: 12.4-24Reference
4WD Standard tires (ag)Front: 7-14. Rear: 11.2-24Reference
Ag rear11.2-24Reference
Lawn/turf front25x8.5-14Reference
Lawn/turf rear16.5-16.1Reference
Length298 cmReference
2WD Width143 cmReference
4WD Width140 cmReference
2WD Weight919 kgReference
4WD Weight973 kgReference
Ground clearance33 cmReference
Clearance (drawbar)30 cmReference
2WD Front tread101 cmReference
4WD Front tread100 cmReference
Rear tread111 to 0 cmReference
Steering wheel148 cmReference
Yanmar YM276 attachments

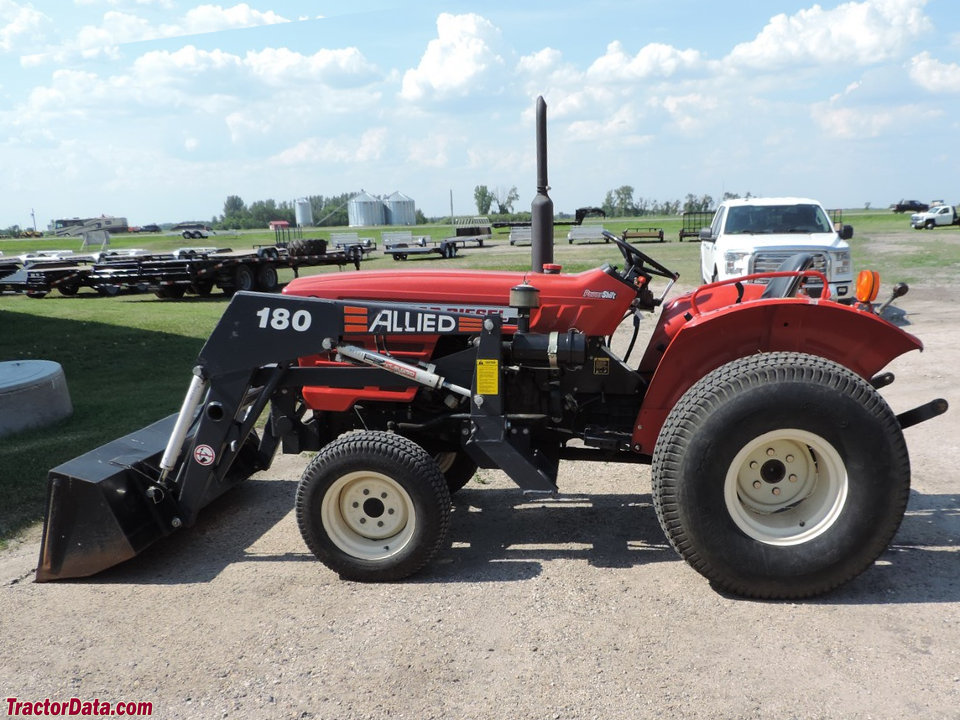

front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps15Reference
Battery volts12Reference
Battery AH70Reference
Yanmar YM276 Height
2WD Exhaust196 cmReference
4WD Exhaust197 cmReference
Test results
Diesel 12-speed 4WDJune 12 - 24, 1982Link: Nebraska Tractor Test 1443 fileReference
PTO performanceReference
Fuel use6.4 l/hourReference
Fuel use6.1 l/hourReference
Drawbar performanceReference
Gear 2-1 used for power test.Reference
Max pull1348 kgReference
Gear 1-3 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
