Tractor · 1979Unverified

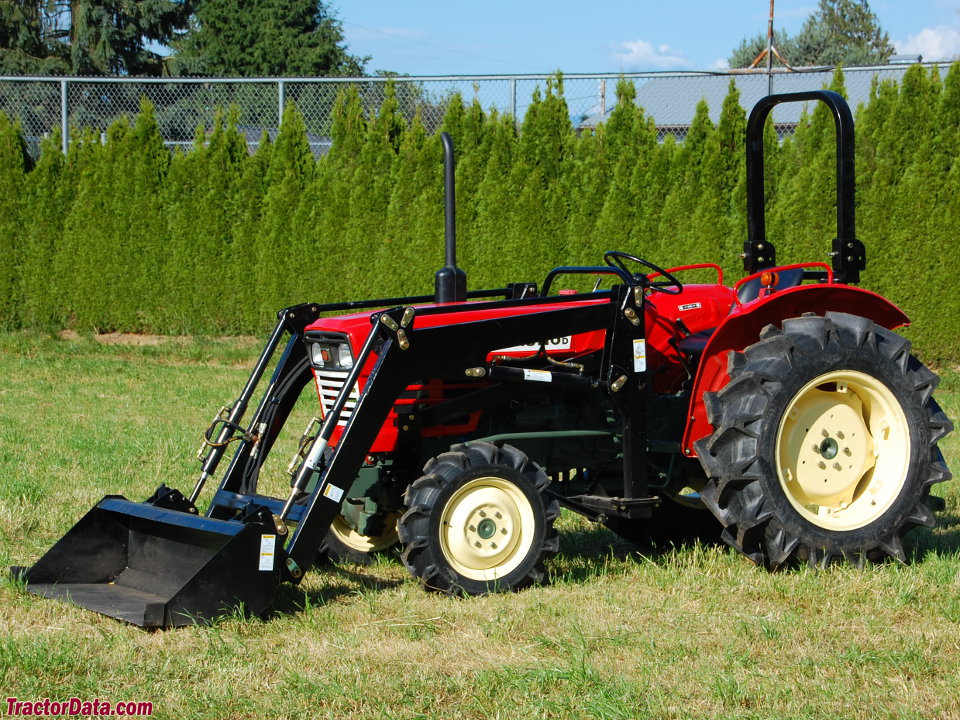

Yanmar YM3110
Yanmar YM3110 — YM10 Series · 31 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
31 hp
Weight
2733 to 2910 pounds
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
YM31102WDReference
YM3110D4WDReference
Engine
Yanmar 1.5L 3-cyl dieselReference
Engine22.8 kWReference
Yanmar 3T84Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke84 x 90 mmReference
Power22.8 kWReference
Rated RPM2600Reference
Transmission
15-speed partial power shiftReference
Typepartial power shiftReference
Gears15 forward and 5 reverseReference
Five ranges with three power shift gears (plus reverse) per range.Reference
Dimensions
Weight2733 to 2910 poundsReference
Length309 cmReference
Width147 cmReference
Height185 cmReference
2WD Weight1239 kgReference
4WD Weight1319 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
