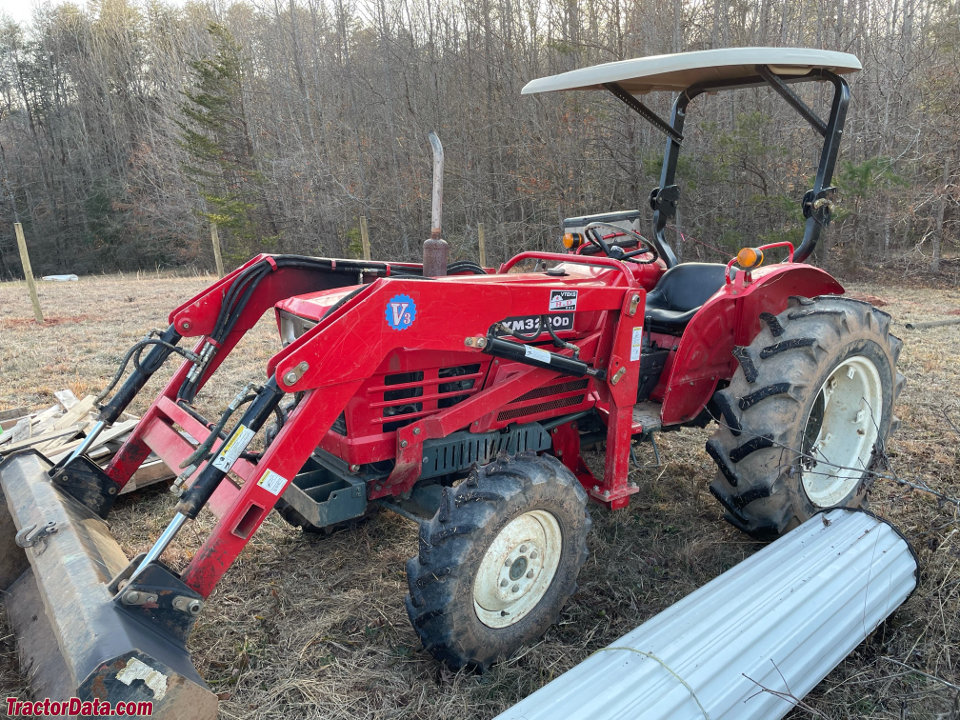

The Yanmar YM3220 is a tractor model rated at 32 hp, making it one of the more compact options in its class. It was manufactured between 1982 and 1983. The tractor is powered by a 3-cylinder diesel liquid-cooled engine, which drives through a four-wheel drive system with a powershift transmission. It has a listed weight of 1460 kg and is suited to jobs of approximately 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
32 hp
Weight
1460 kg
Catalogue coverage
Variants represented
2
Richest spec table
27 rows
Recorded power
32 hp
Recorded weight
1460 kg
Transmissions
15-speed partial power shift
Production years
1982-1983
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
YM32202WDReference
YM3220D4WDReference
Engine
Yanmar 1.5L 3-cyl dieselReference
Engine23.9 kWReference
Yanmar 3T84Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke84 x 90 mmReference
Power23.9 kWReference
Rated RPM2800Reference
Starter volts12Reference
Transmission
15-speed partial power shiftReference
Typepartial power shiftReference
Gears15 forward and 5 reverseReference
PTO & Hydraulics
Rear TypeIReference
Dimensions
Weight1460 kgReference
Length317 cmReference
Width147 cmReference
Height193 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
