Tractor · 1978Unverified

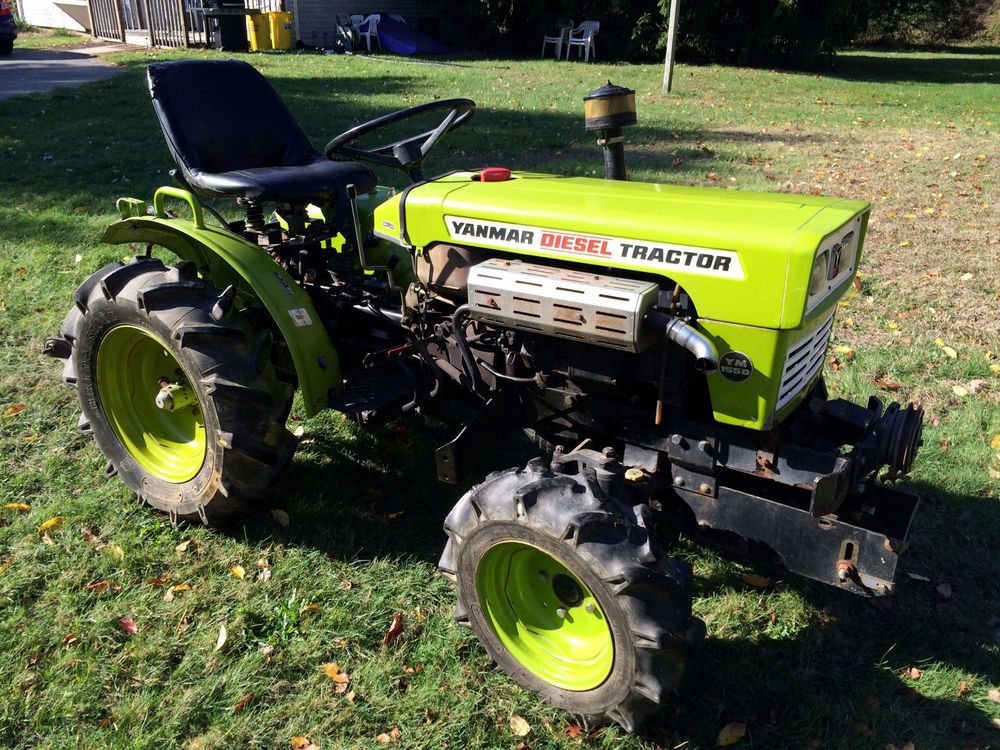

Yanmar YM330

Name: Yanmar YM330
Brand: Yanmar

Yanmar YM330 — Compact Utility tractor · 33 hp. Reference specifications; pending source verification.

The Yanmar YM330 tractor has a rated power output of 33 hp, positioning it at the lighter end of its class. Manufactured from 1978 to 1991, this model features a 3-cylinder diesel liquid-cooled engine and four-wheel drive with an 8-speed gearbox. The tractor's operating weight is listed at 1179 kg, while its suitability covers areas of up to 200 ac.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

33 hp

Weight

1179 kg

Catalogue coverage

Variants represented

Richest spec table

20 rows

Recorded power

33 hp

Recorded weight

1179 kg

Transmissions

8-speed

Production years

1978-1991

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerYanmarReference

Compact Utility tractorReference

Original price$8200 (1991)Reference

Two- or four-wheel driveReference

Variants

YM3302WDReference

YM330D4WDReference

Engine

Yanmar 1.5L 3-cyl dieselReference

Yanmar 3T84AReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.5 LReference

Bore/Stroke84 x 100 mmReference

Transmission

8-speedReference

Gears8 forward and 2 reverseReference

PTO & Hydraulics

PTO (claimed)24.6 kWReference

Rear TypeIReference

Dimensions

Weight1179 kgReference

Rear tire11-28Reference

Ag rear11-28Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
