Tractor · 1980Unverified

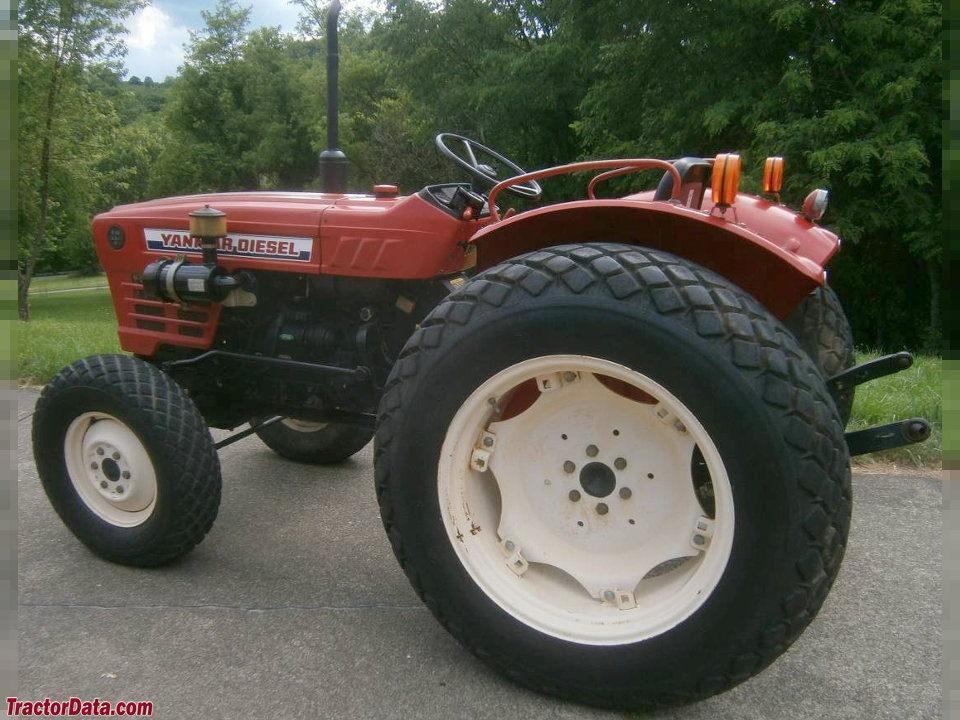

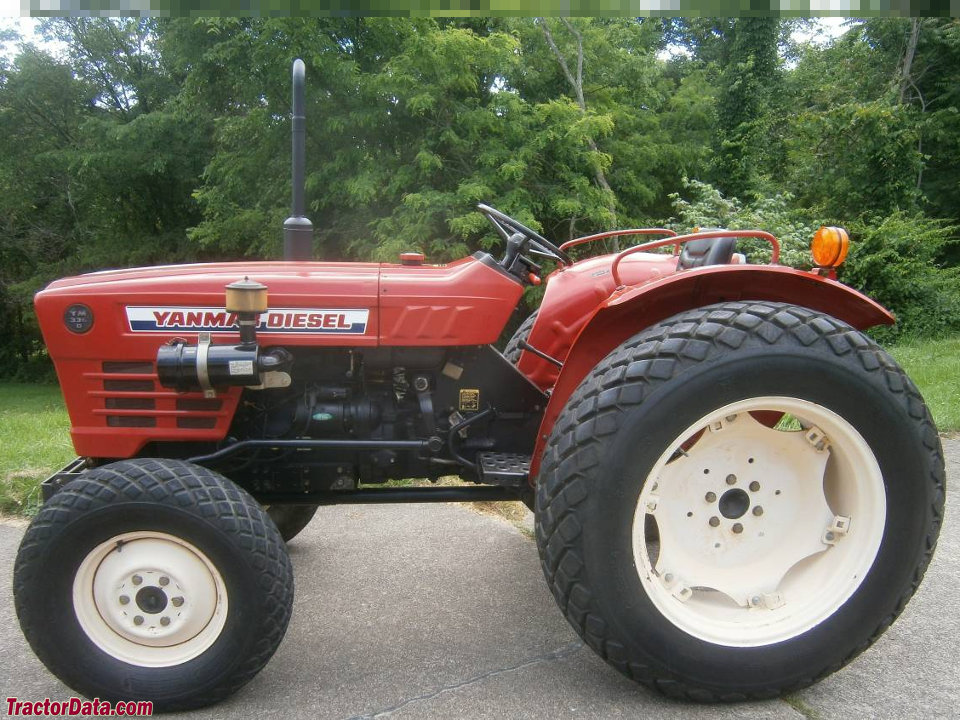

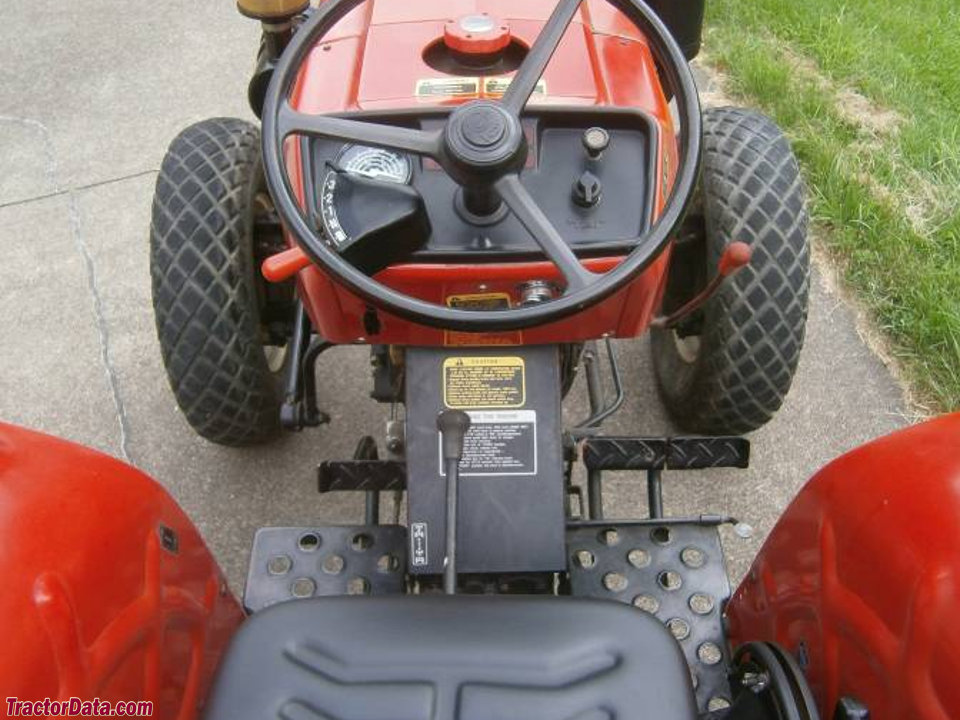

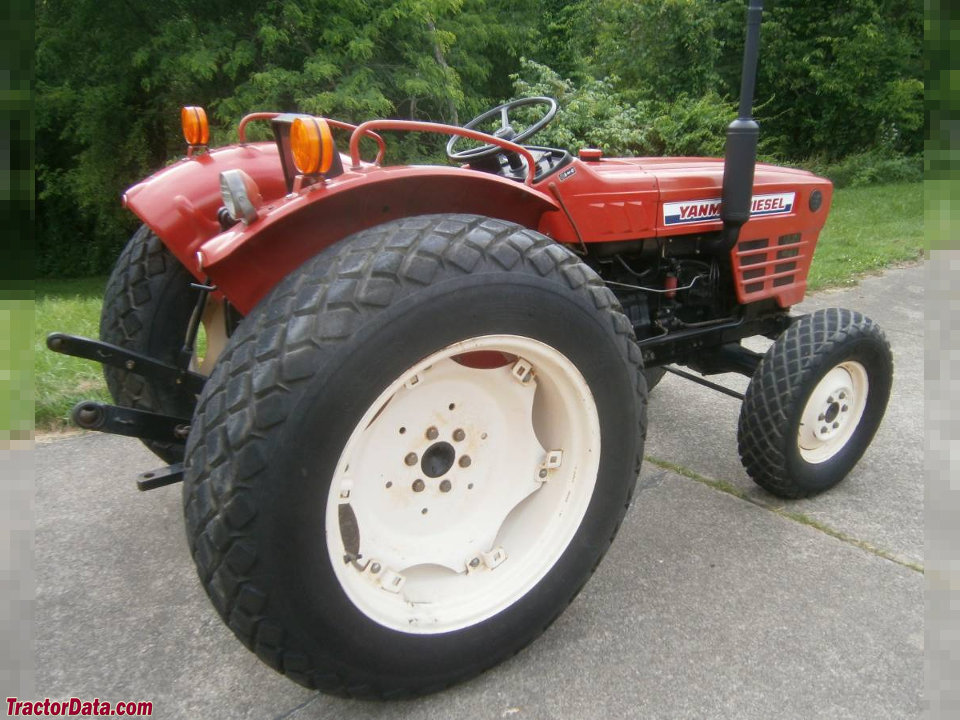

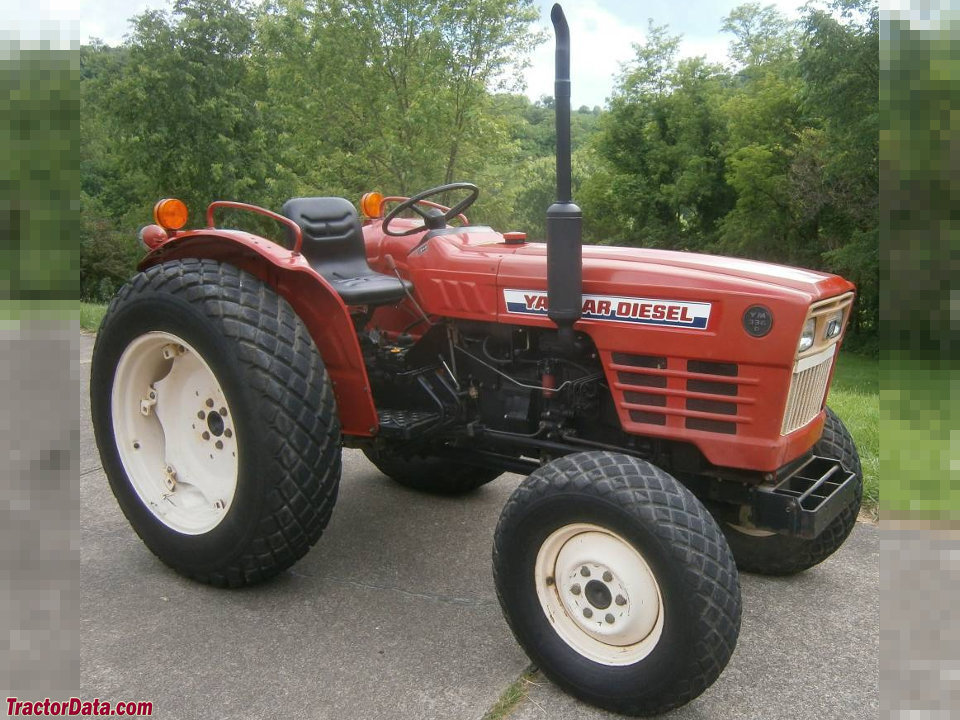

Yanmar YM336
Yanmar YM336 — Compact Utility tractor · 33 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
33 hp
Max power
16.7 kW
Weight
2627 to 3400 pounds
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Built in JapanReference
Original price was $12,400 in 1991Reference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Mechanical drum brakesReference
Two-post ROPS.Reference
Variants
YM3362WDReference
YM336D4WDReference
Engine
Yanmar 1.5L 3-cyl dieselReference
Fuel tank32.2 LReference
Engine (gross)24.6 kWReference
Drawbar (tested)16.7 kWReference
Yanmar 3T84A-NReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke84 x 90 mmReference
Power (gross)24.6 kWReference
Air cleanerdryReference
Pre-heatingthermostartReference
Rated RPM2600Reference
Starter volts12Reference
Power at rated engine speed20.1 kWReference
Max power16.7 kWReference
Transmission
12-speed three-speed power shiftReference
Typethree-speed power shiftReference
Gears12 forward and 4 reverseReference
Clutchdry discReference
Three power shift gears, plus reverse, in four ranges.Reference
PTO & Hydraulics
PTO (claimed)19.8 kWReference
PTO (tested)20.1 kWReference
Typeopen centerReference
Pressure152.0 barReference
Pump flow31.0 lpmReference
Rear TypeIReference
Controlposition and draft controlReference
Rear lift (at ends)959 kgReference
Rear lift (at 24"/610mm)657 kgReference
Rear PTOliveReference
Clutchoverrunning dry discReference
Rear PTO Type540/1000 (1.375)Reference
Power at rated PTO speed19.1 kWReference
Dimensions
Wheelbase195 cmReference
Weight2627 to 3400 poundsReference
Front tire5.50-16Reference
2WD Rear tire12.4-28Reference
2WD Standard tires (ag)Front: 5.50-16. Rear: 12.4-28Reference
4WD Standard tires (ag)Front: 8-16. Rear: 12.4-28Reference
Lawn/turf front27x8.5-15Reference
Lawn/turf rear13.6-28Reference
Length310 cmReference
Width147 cmReference
Height (exhaust)196 cmReference
Front tread114 cmReference
Rear tread115 cmReference
2WD1191 kgReference
4WD1289 kgReference
4WD Operating1542 kgReference
Yanmar YM336 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Battery volts12Reference
Test results
Diesel 12-speed 2WDJune 15 - 23, 1982Link: Nebraska Tractor Test 1444 fileReference
PTO performanceReference
Fuel use7.2 l/hourReference
Fuel use6.8 l/hourReference
Drawbar performanceReference
Fuel use7.6 l/hourReference
Gear 4-1 used for power test.Reference
Max pull1774 kgReference
Gear 4-1 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
