Tractor · 2023Unverified

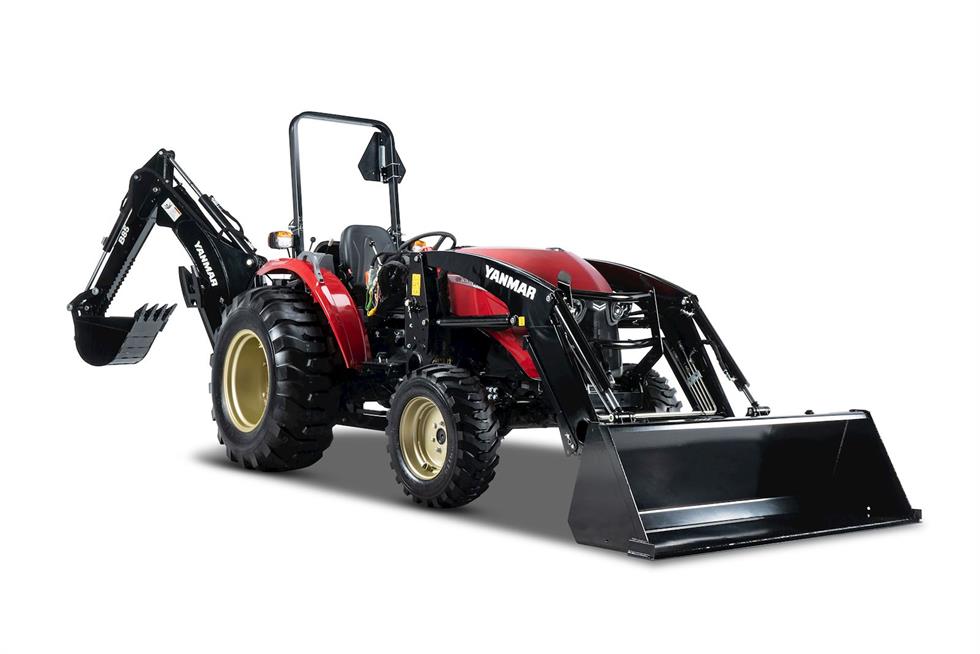

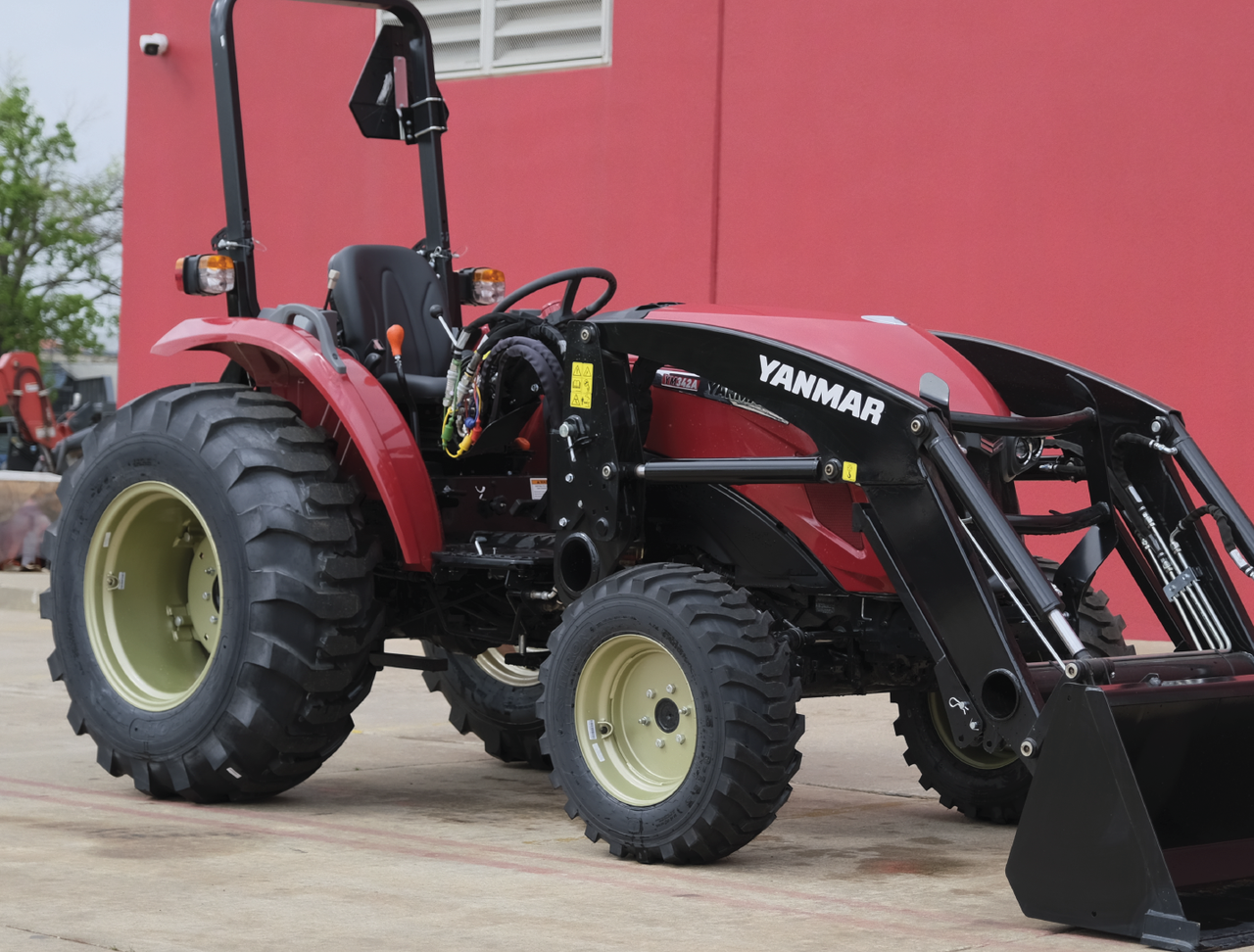

Yanmar YM347

Name: Yanmar YM347
Brand: Yanmar

Yanmar YM347 — YM3 Series · 47 hp. Reference specifications; pending source verification.

The Yanmar YM347 is a compact tractor model, rated at 47 hp. It features a 4-cylinder diesel liquid-cooled engine, and its drivetrain consists of a 12-speed gearbox and four-wheel drive. The YM347 has a listed weight of 2085 kg, and it is suitable for tasks covering up to 200 acres. It was manufactured in 2023.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

47 hp

Max power

46 hp

Weight

2085 kg

Catalogue coverage

Variants represented

Richest spec table

81 rows

Recorded power

47 hp

Recorded weight

2085 kg

Transmissions

12-speed synchronized

Production years

2023-2023

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerYanmarReference

Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Two-post folding mid-mount ROPS.Reference

Engine

Yanmar 2.2L 4-cyl dieselReference

Engine (gross)35.0 kWReference

Yanmar 4TNV88CReference

dieselReference

4-cylinderReference

liquid-cooled inlineReference

Displacement2.2 LReference

Bore/Stroke88 x 90 mmReference

EmissionsStage VReference

Rated Power (gross)35.0 kWReference

Fuel systemdirect injection common railReference

Rated RPM2800Reference

Torque142.7 NmReference

StarterelectricReference

Starter volts12Reference

Fuel TypeDieselReference

No of Cylinders4Reference

Transmission

12-speed synchronizedReference

TypesynchronizedReference

Gears12 forward and reverseReference

Transmission TypeSync ShuttleReference

forward and reverse optionsF8xR8Reference

forward speed range29.8 km/hReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)26.5 kWReference

Hydraulic system29.1 LReference

Typeopen centerReference

Capacity29.1 LReference

Pressure167.0 barReference

Valves2Reference

Pump flow17.0 lpmReference

Total flow38.6 lpmReference

Steering flow21.6 lpmReference

Clutch540:2430Reference

Clutch750:2430Reference

Rear PTO Type540 (1.375)Reference

Capacities

Fuel48.1 LReference

Max capacity3660 kgReference

Tow capacity3000 kgReference

Tow capacity6000 kgReference

Fuel tank50 LReference

Dimensions

Wheelbase197 cmReference

Weight2085 kgReference

Length371 cmReference

Width141 cmReference

Height237 cmReference

2085 kgReference

Max front axle1200 kgReference

Max rear axle2800 kgReference

Electrical

Charging systemalternatorReference

Charging amps55Reference

Battery volts12Reference

Battery AH70Reference

General

Make & ModelYanmar @ 4TNV88C-XKITLReference

Power

Max Power46 hpReference

Rated Power46.0 hpReference

PTO

PTO Power35.5 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540/540E rpmReference

Hydraulics

Pump Rated Output (total)55.3 l/minReference

Hydraulics TypeTelescopicReference

Remote Valves2Reference

Steering & Implements flow5.3 gpm (9.3 gpm)Reference

Rear Hitch category (SAE designation)Category 1 & 2Reference

Rear Hitch maximum lift capacity1,447 kgReference

Front Hitch category (SAE designation)Category 1 & 2Reference

Dimensions & weight

Height Over ROPS248.9 cmReference

Overall Length133.6Reference

Overall Width180.1 cmReference

Ground Clearance39.4 cmReference

Turning radius350.5 cmReference

Overall weight1,776.3 kgReference

Wheels & tyres

Rear wheel tread range52-64 inchReference

Front Wheel tread range127 cmReference

Operator station

Seat SuspensionAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
