Tractor · 2023Unverified

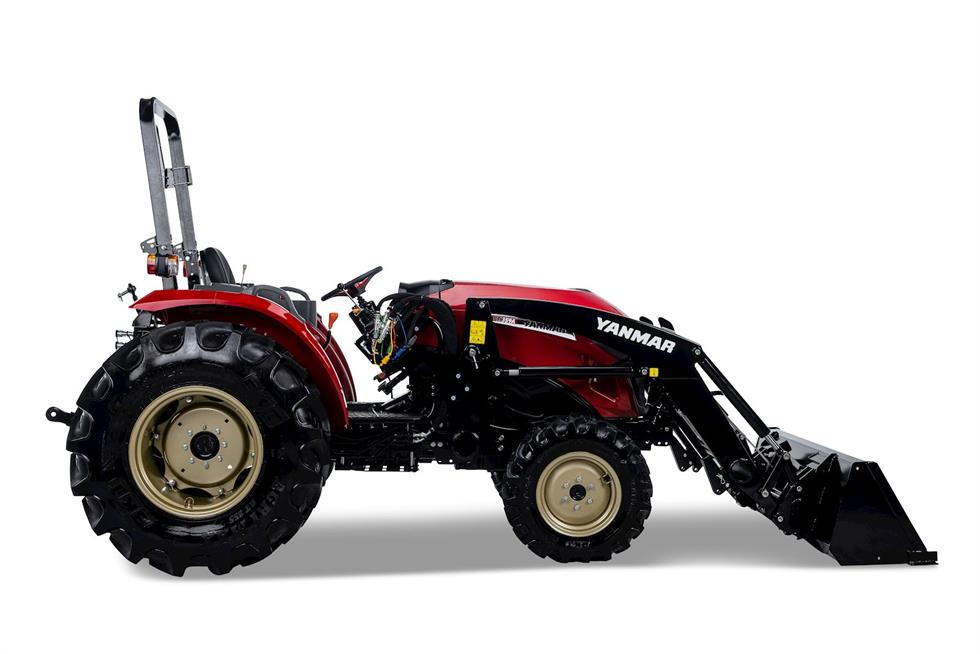

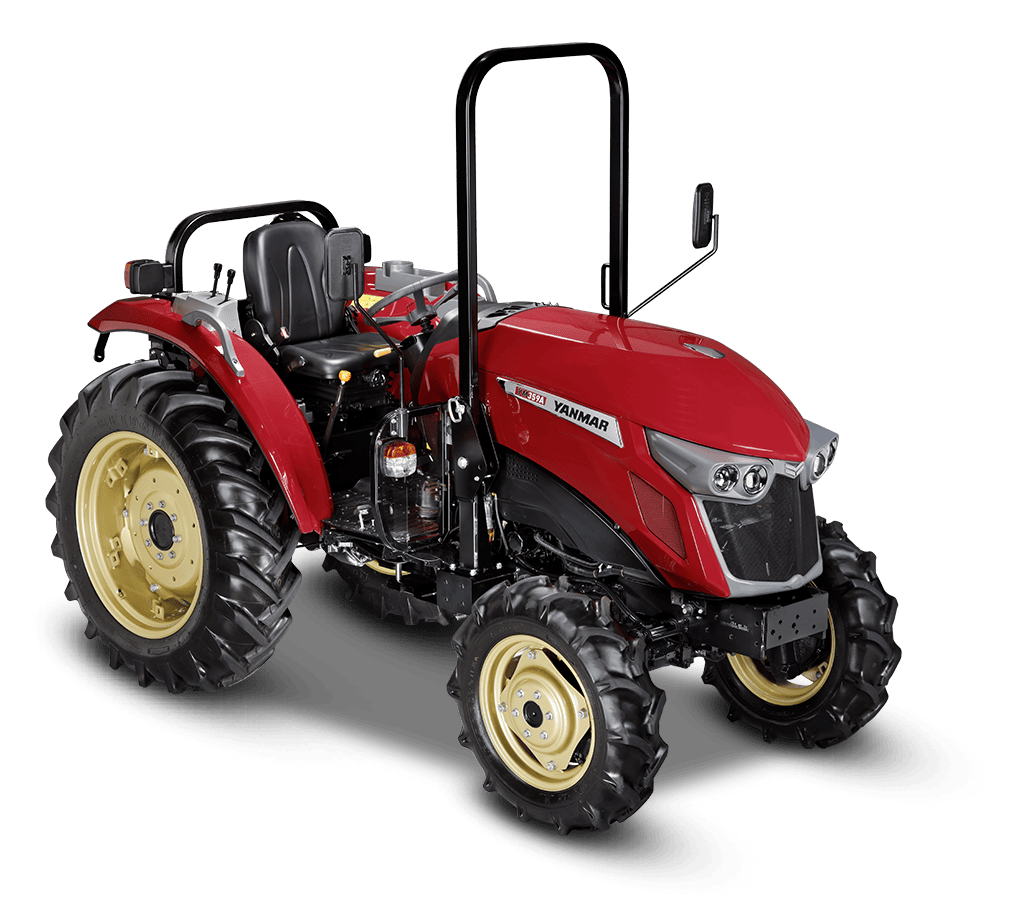

Yanmar YM359
Yanmar YM359 — YM3 Series · 59 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
59 hp
Weight
2085 kg
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post folding mid-mount ROPS.Reference
Engine
Yanmar 3.3L 4-cyl dieselReference
Engine (gross)43.9 kWReference
Yanmar 4TNV98CReference
dieselReference
4-cylinderReference
liquid-cooled inlineReference
Displacement3.3 LReference
Bore/Stroke98 x 110 mmReference
EmissionsStage VReference
Rated Power (gross)43.9 kWReference
Fuel systemdirect injection common railReference
Rated RPM2500Reference
Torque205.0 NmReference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed synchronizedReference
TypesynchronizedReference
Gears12 forward and reverseReference
PTO & Hydraulics
PTO (claimed)34.0 kWReference
Hydraulic system29.1 LReference
Typeopen centerReference
Capacity29.1 LReference
Pressure167.0 barReference
Valves2Reference
Pump flow17.0 lpmReference
Total flow38.6 lpmReference
Steering flow21.6 lpmReference
Clutch540:2430Reference
Clutch750:2430Reference
Rear PTO Type540 (1.375)Reference
Capacities
Fuel48.1 LReference
Max capacity3660 kgReference
Tow capacity3000 kgReference
Tow capacity6000 kgReference
Dimensions
Wheelbase197 cmReference
Weight2085 kgReference
Length371 cmReference
Width141 cmReference
Height237 cmReference
2085 kgReference
Max front axle1200 kgReference
Max rear axle2800 kgReference
Electrical
Charging systemalternatorReference
Charging amps55Reference
Battery volts12Reference
Battery AH70Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
