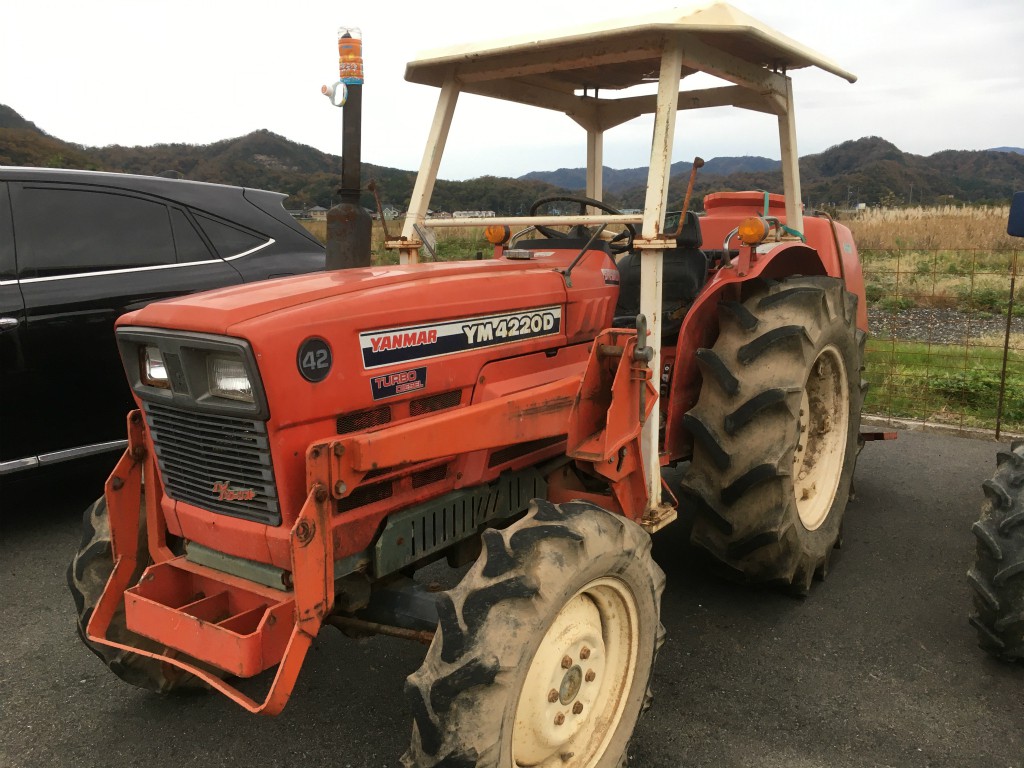

The Yanmar YM4220 is a tractor model with a rating of approximately 42 hp, positioning it at the lighter end of its class. This model was produced from 1982 to 1983. It features a 3-cylinder turbocharged diesel liquid-cooled engine, coupled with four-wheel drive and a powershift transmission. The operating weight of the Yanmar YM4220 is listed as 1520 kg, with a suitable working capacity of up to 200 ac.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
42 hp
Weight
1520 kg
Catalogue coverage
Variants represented
2
Richest spec table
26 rows
Recorded power
42 hp
Recorded weight
1520 kg
Transmissions
15-speed partial power shift
Production years
1982-1983
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
YM42202WDReference
YM4220D4WDReference
Engine
Yanmar 1.4L 3-cyl dieselReference
Engine31.3 kWReference
Yanmar 3T84TReference
turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.4 LReference
Bore/Stroke84 x 86 mmReference
Power31.3 kWReference
Starter volts12Reference
Transmission
15-speed partial power shiftReference
Typepartial power shiftReference
Gears15 forward and 5 reverseReference
PTO & Hydraulics
Rear TypeIReference
Dimensions
Weight1520 kgReference
Length317 cmReference
Width149 cmReference
Height198 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
