Tractor · 1981Unverified

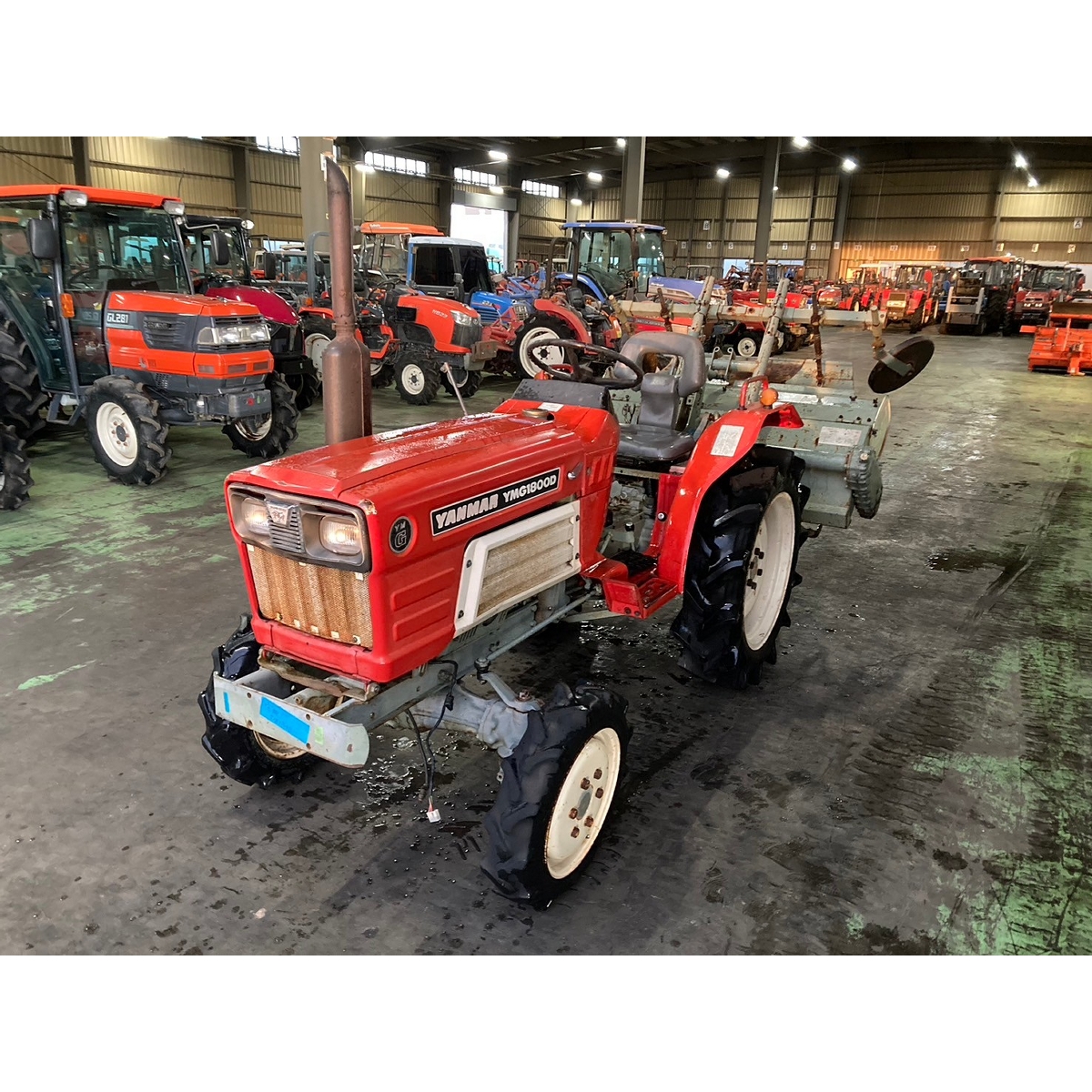

Yanmar YMG1800

Name: Yanmar YMG1800
Brand: Yanmar

Yanmar YMG1800 — Compact Utility tractor · 18 hp. Reference specifications; pending source verification.

The Yanmar YMG1800 is a compact tractor with a rated output of 18 hp, making it one of the smaller options in its class. It was manufactured from 1981 to 1983 and features a 3-cylinder diesel liquid-cooled engine. The tractor has a four-wheel drive system and a 12-speed gearbox, with a weight range of 1676 to 1786 pounds. It is suitable for tasks on areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

18 hp

Weight

1676 to 1786 pounds

Catalogue coverage

Variants represented

Richest spec table

45 rows

Recorded power

18 hp

Recorded weight

760 kg

Transmissions

12-speed

Production years

1981-1983

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerYanmarReference

Compact Utility tractorReference

Two-wheel driveReference

Dry brakesReference

Open operator station.Reference

Variants

YMG1800D4WDReference

Engine

Yanmar 1.3L 3-cyl dieselReference

Fuel tank20.4 LReference

Engine13.3 kWReference

Yanmar 3T80U-SBReference

dieselReference

3-cylinderReference

liquid-cooled inlineReference

Displacement1.3 LReference

Bore/Stroke80 x 85 mmReference

Power13.3 kWReference

Rated RPM2400Reference

StarterelectricReference

Starter volts12Reference

Transmission

12-speedReference

Gears12 forward and 4 reverseReference

PTO & Hydraulics

Rear TypeJIS0Reference

Rear PTO Type540 (1.375)Reference

Engine RPM550@2400Reference

Engine RPM784@2400Reference

Engine RPM1096@2400Reference

Dimensions

Wheelbase147 cmReference

Weight1676 to 1786 poundsReference

Front tire5-14Reference

2WD:4.00-12:8.3-22 4WD} Rear tire8.3-22Reference

2WD Standard tires (ag)Front: 5-14. Rear: 8.3-22Reference

Length242 cmReference

Width114 cmReference

Height (exhaust)178 cmReference

2WD Weight760 kgReference

4WD Weight810 kgReference

2WD Ground clearance32 cmReference

4WD Ground clearance29 cmReference

2WD Front tread84 cmReference

4WD Front tread91 cmReference

Rear tread89/102 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Battery AH70Reference

Speeds

With 8.3-22 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
