Tractor · 1981Unverified

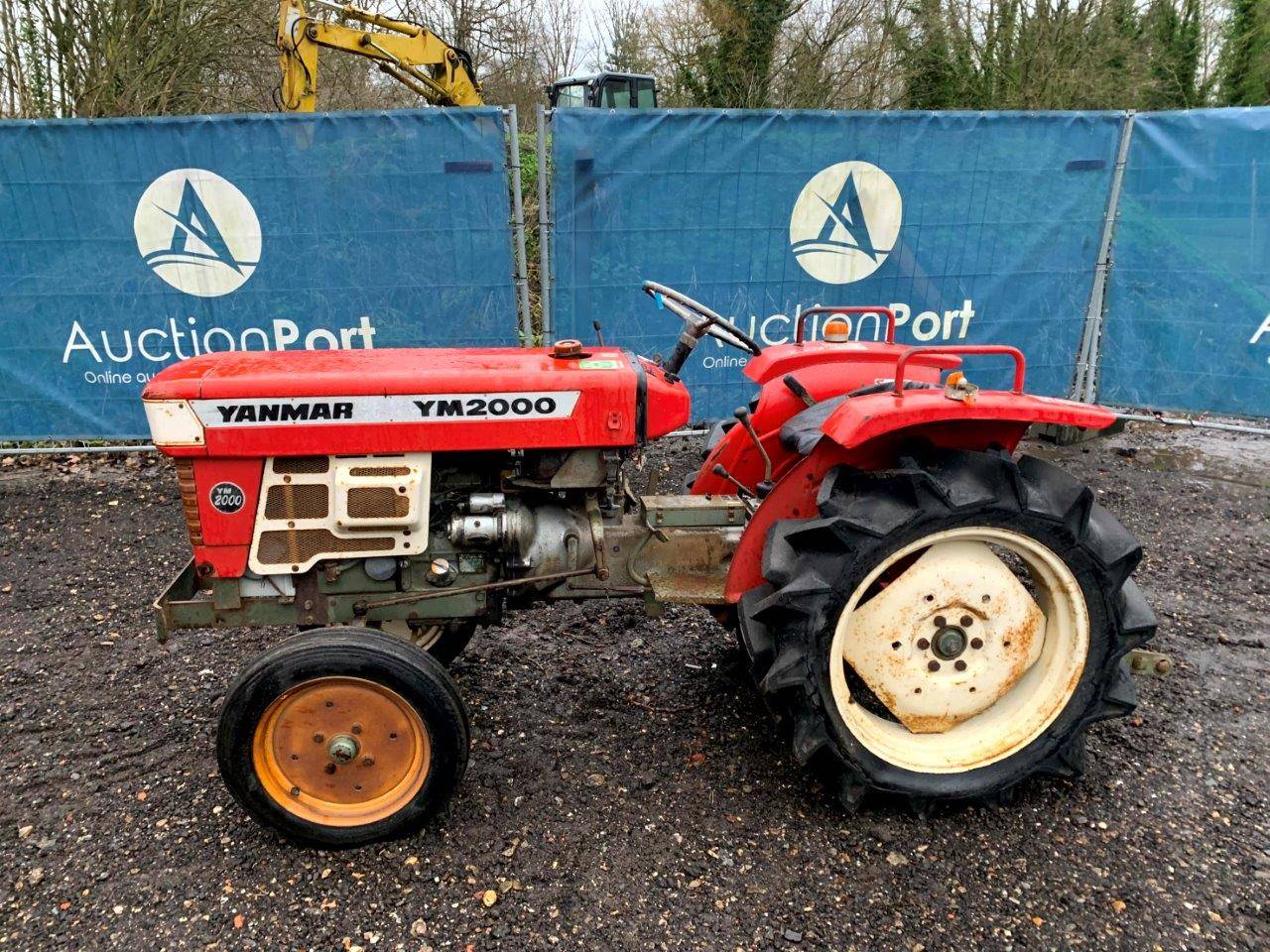

Yanmar YMG2000
Yanmar YMG2000 — Compact Utility tractor · 20 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
20 hp
Weight
1698 to 1808 pounds
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Two-wheel driveReference
Dry brakesReference
Open operator station.Reference
Variants
YMG2000D4WDReference
Engine
Yanmar 1.3L 3-cyl dieselReference
Fuel tank20.4 LReference
Engine14.7 kWReference
Yanmar 3T80U-SAReference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement1.3 LReference
Bore/Stroke80 x 85 mmReference
Power14.7 kWReference
Rated RPM2400Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speedReference
Gears12 forward and 4 reverseReference
PTO & Hydraulics
Rear TypeJIS0Reference
Rear PTO Type540 (1.375)Reference
Engine RPM550@2400Reference
Engine RPM784@2400Reference
Engine RPM1096@2400Reference
Dimensions
Wheelbase147 cmReference
Weight1698 to 1808 poundsReference
Front tire5-14Reference
2WD:4.00-12:8.3-24 4WD} Rear tire8.3-24Reference
2WD Standard tires (ag)Front: 5-14. Rear: 8.3-24Reference
Length245 cmReference
Width114 cmReference
Height (exhaust)179 cmReference
2WD Weight770 kgReference
4WD Weight820 kgReference
2WD Ground clearance34 cmReference
4WD Ground clearance29 cmReference
2WD Front tread84 cmReference
4WD Front tread91 cmReference
Rear tread89/102 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH70Reference
Speeds
With 8.3-24 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
