The Yanmar YT347 is a compact tractor with a 47 hp rating, manufactured in 2016. It is equipped with a diesel liquid-cooled engine, which powers four-wheel drive via a continuously variable transmission. The tractor is designed for use on plots of around 200 acres. Detailed specifications are provided in both imperial and US units.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
47 hp
Max power
46 hp
Catalogue coverage
Variants represented
2
Richest spec table
61 rows
Recorded power
47 hp
Transmissions
hydro-mechanical CVT
Production years
2016-2016
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerYanmarReference
Compact Utility tractorReference
Four-wheel driveReference
Wet disc brakesReference
Two-post ROPS. Cab optional with air-conditioning.Reference
Variants

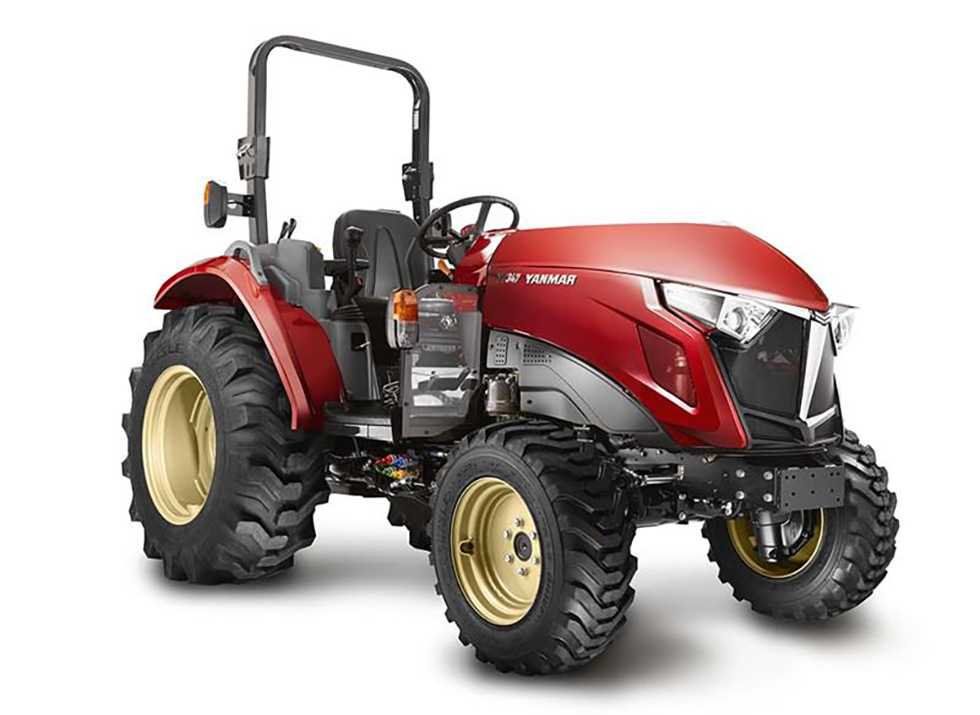

YT347ROPSReference

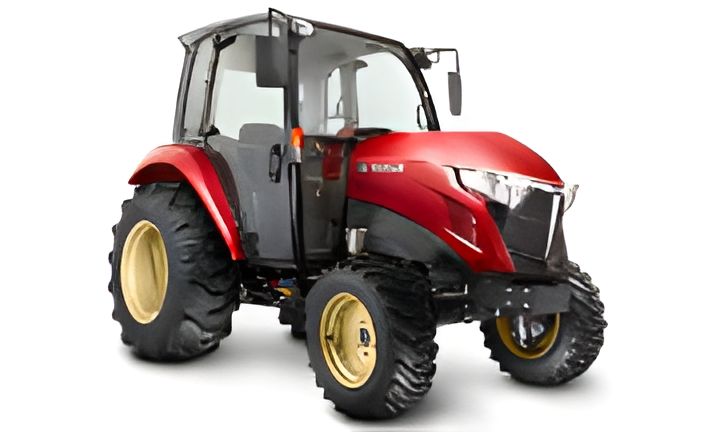

YT347CcabReference
Engine
Yanmar dieselReference
Fuel tank48.1 LReference
Engine (gross)34.7 kWReference
Engine (net)33.0 kWReference
YanmarReference
dieselReference
liquid-cooledReference
Power (net)33.0 kWReference
Power (gross)34.7 kWReference
Rated RPM2800Reference
StarterelectricReference
Starter volts12Reference
Fuel TypeDieselReference
No of Cylinders4Reference
AspirationNaturally aspiratedReference
Bore and stroke3.46 x 3.54 inReference
Cooling systemLiquid cooledReference
Transmission
hydro-mechanical CVTReference
TransmissionYanmar I-HMTReference
Typehydro-mechanical CVTReference
Gearsinfinite forward and reverseReference
Transmission TypePowershiftReference
forward and reverse options3 RangeReference
forward speed range0 – 18 mphReference
Wheel Drive4WDReference
PTO & Hydraulics
PTO (claimed)26.8 kWReference
Rear PTO Type540Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps55Reference
Battery volts12Reference
Battery size650 CCAReference
Alternator size12-55Reference
General
Make & Model4TNV88C (Tier 4)Reference
Air cleanerDual Stage Cyclonic\\r\\n(resin 5.5\\Reference
