Tractor · 2016Unverified

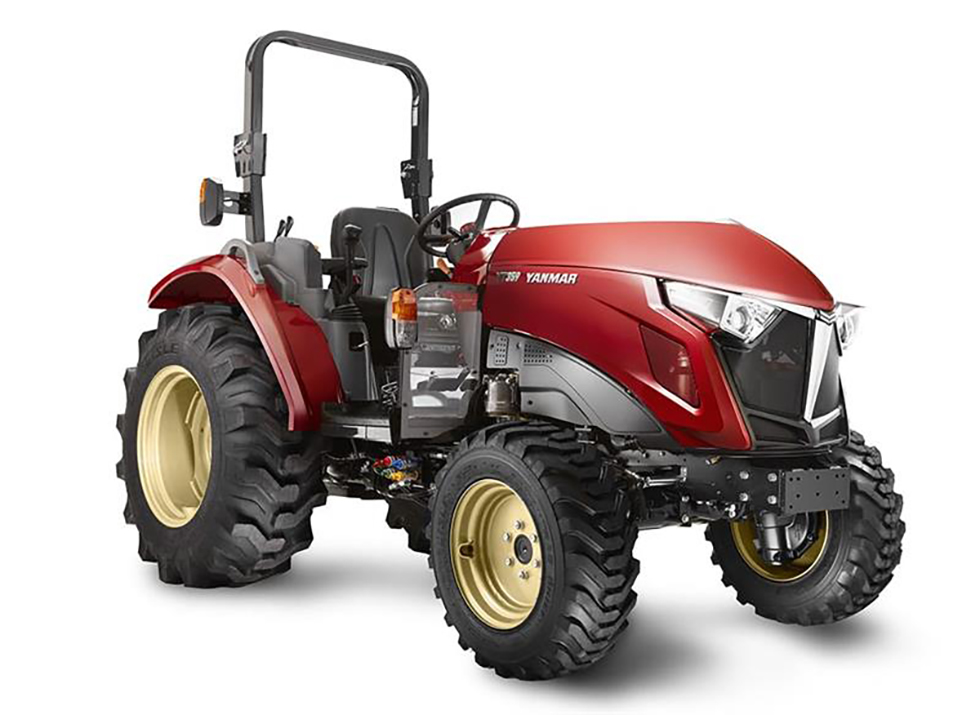

Yanmar YT359

Name: Yanmar YT359
Brand: Yanmar

Yanmar YT359 — YT3 Series · 60 hp. Reference specifications; pending source verification.

The Yanmar YT359 is a compact tractor rated at 60 hp, manufactured in 2016. It features a diesel liquid-cooled engine and a continuously variable transmission, driving through four-wheel drive. The model is suited for use on areas of up to 200 acres. Specifications for the Yanmar YT359 are provided in both imperial and US units.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

60 hp

Max power

58.9 hp

Catalogue coverage

Variants represented

Richest spec table

56 rows

Recorded power

60 hp

Transmissions

hydro-mechanical CVT

Production years

2016-2016

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerYanmarReference

Compact Utility tractorReference

Four-wheel driveReference

Wet disc brakesReference

Two-post ROPS. Cab optional with air-conditioning.Reference

Variants

YT359ROPSReference

YT359CcabReference

Engine

Yanmar dieselReference

Fuel tank48.1 LReference

Engine (gross)44.5 kWReference

Engine (net)41.8 kWReference

YanmarReference

dieselReference

liquid-cooledReference

Power (net)41.8 kWReference

Power (gross)44.5 kWReference

Rated RPM2500Reference

StarterelectricReference

Starter volts12Reference

Fuel TypeDieselReference

No of Cylinders4Reference

Cooling system7.8 qtReference

Transmission

hydro-mechanical CVTReference

TransmissionYanmar I-HMTReference

Typehydro-mechanical CVTReference

Gearsinfinite forward and reverseReference

Transmission TypePowershiftReference

forward and reverse options3 RangeReference

forward speed range0 – 18 mphReference

reverse speed range0 – 18 mphReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)33.9 kWReference

Rear PTO Type540Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps55Reference

Battery volts12Reference

Battery size880 CCAReference

Capacities

Capacity133.5 cu. inReference

Power

Max Power58.9 hpReference

PTO

PTO Power52 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPM RPMReference

General

Cruise controltrueReference

SCV controlJoystick: AvailableReference

Hydraulics

Pump Rated Output (total)55.6 l/minReference

Steering & Implements flow5.3 gpm (9.4 gpm)Reference

Rear Hitch category (SAE designation)Category 1Reference

Front Hitch category (SAE designation)Category 1Reference

Dimensions & weight

Wheelbase77.4” inchReference

Height Over ROPS95.7” inchReference

Overall Length132.1”Reference

Overall Width70.6” inchReference

Ground Clearance12.8\\Reference

Overall weight1,832.1 kgReference

Steering & brakes

Steering typePower SteeringReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
