Tractor · 1978Unverified

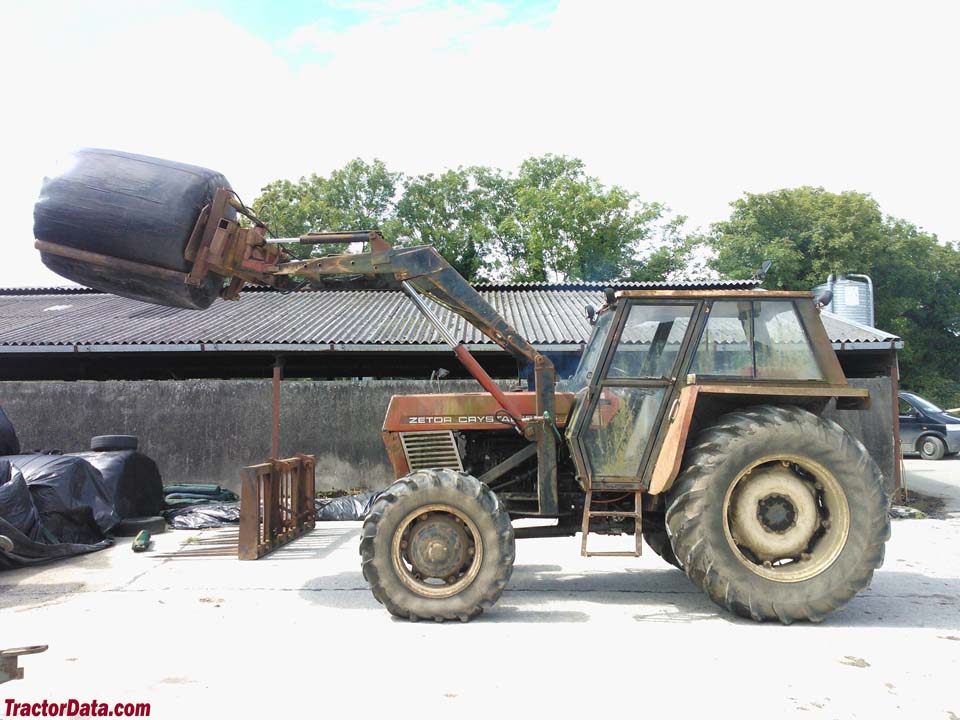

Zetor 10045

Name: Zetor 10045
Brand: Zetor

Zetor 10045 — Crystal UR2 Series · 100 hp. Reference specifications; pending source verification.

The Zetor 10045 is a tractor model rated at approximately 100 hp, a mid-range figure for its class. It was manufactured from 1978 to 1987. It features a 4-cylinder turbocharged diesel liquid-cooled engine, paired with four-wheel drive and a 16-speed gearbox. The tractor has a listed operating weight of 4240 kg, and is suited to operations covering 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

100 hp

Weight

4240 kg

Catalogue coverage

Variants represented

Richest spec table

57 rows

Recorded power

100 hp

Recorded weight

4240 kg

Transmissions

16-speed

Production years

1978-1987

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerZetorReference

Row-Crop tractorReference

Built in Brno, CzechoslovakiaReference

Four-wheel driveReference

Hydraulic dry disc brakesReference

Cab standard.Reference

Variants

100112WDReference

100454WDReference

Engine

Zetor 4.6L 4-cyl dieselReference

Engine74.6 kWReference

Zetor Z 8002Reference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.6 LReference

Bore/Stroke110 x 120 mmReference

Power74.6 kWReference

Fuel systemdirect injectionReference

Rated RPM2200Reference

Fuel TypeDieselReference

No of Cylinders4-cylinderReference

Rated engine speed2,200Reference

Bore and stroke4.33x4.72 inchesReference

Cooling systemliquid-cooledReference

Transmission

16-speedReference

Gears16 forward and 8 reverseReference

Four gears in two ranges with two-speed torque multiplier.Reference

forward and reverse options16 forward and 8 reverseReference

PTO & Hydraulics

Typeopen centerReference

Valves1Reference

Pump flow31.8 lpmReference

Rear TypeIIReference

Controllower-link draft controlReference

Rear lift3400 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Dimensions

Weight4240 kgReference

Front tire11.2-24Reference

Rear tire16.9-34Reference

Ag front11.2-24Reference

Ag rear16.9-34Reference

General

Make & ModelZetorReference

Country of manufacturerOption 1: Row-Crop tractor\\nOption 2: Brno, CzechoslovakiaReference

Capacities

Capacity278.4 ciReference

Power

Rated Power100 hpReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM540/1,000 RPMReference

Steering & brakes

Brakeshydraulic dry discReference

Hydraulics

Hydraulics Typeopen centerReference

Remote Valves1Reference

Rear Hitch category (SAE designation)Category IIReference

Rear Hitch maximum lift capacity3,400.1 kgReference

Rear Hitch Sensing Typelower-link draft controlReference

Wheels & tyres

Rear Wheel TypeAg rear - 16.9-34Reference

Front Wheel TypeAg front - 11.2-24Reference

Operator station

Cab AvailabilityAvailableReference

Cab Air conditioning, temperature differentialCab standard.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
