Tractor · 1985Unverified

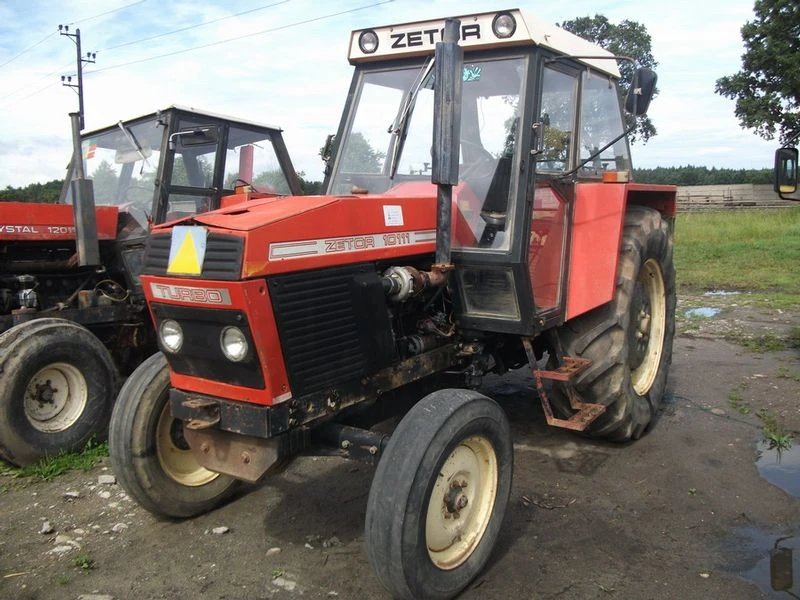

Zetor 10111
Zetor 10111 — Row-Crop tractor · 88 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
88 hp
Weight
3980 kg
Hover a source tag to verify
Overview
ManufacturerZetorReference
Row-Crop tractorReference
Built in Brno, CzechoslovakiaReference
Original price was $19,500 in 1991Reference
Two-wheel driveReference
Power steeringReference
Hydraulic disc brakesReference
Cab standard.Reference
Variants
101112WDReference
101454WDReference
Engine
Zetor 4.6L 4-cyl dieselReference
Fuel tank124.9 LReference
Zetor 8002.1Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.6 LReference
Bore/Stroke110 x 120 mmReference
Rated RPM2200Reference
Starter typeelectricReference
Coolant capacity18.0 LReference
Transmission
16-speed two-speed power shiftReference
Typetwo-speed power shiftReference
Gears16 forward and 8 reverseReference
Clutchdry discReference
Four gears in two ranges, plus reverse range, with two-speed torque multiplier shift.Reference
PTO & Hydraulics
PTO (claimed)65.6 kWReference
Typeopen centerReference
Pressure156.5 barReference
Valves2Reference
Pump flow41.1 lpmReference
Rear TypeIIReference
Rear lift3329 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase238 cmReference
Weight3980 kgReference
Front tire7.50-20Reference
Rear tire18.4-34Reference
Standard tires (ag)Front: 7.50-20. Rear: 18.4-34Reference
Length398 cmReference
Width195 cmReference
Height (cab)264 cmReference
Height (exhaust)262 cmReference
Front tread135 to 180 cmReference
Rear tread150 to 187 cmReference
Speeds
With 16.9-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
