Tractor · 2004Unverified

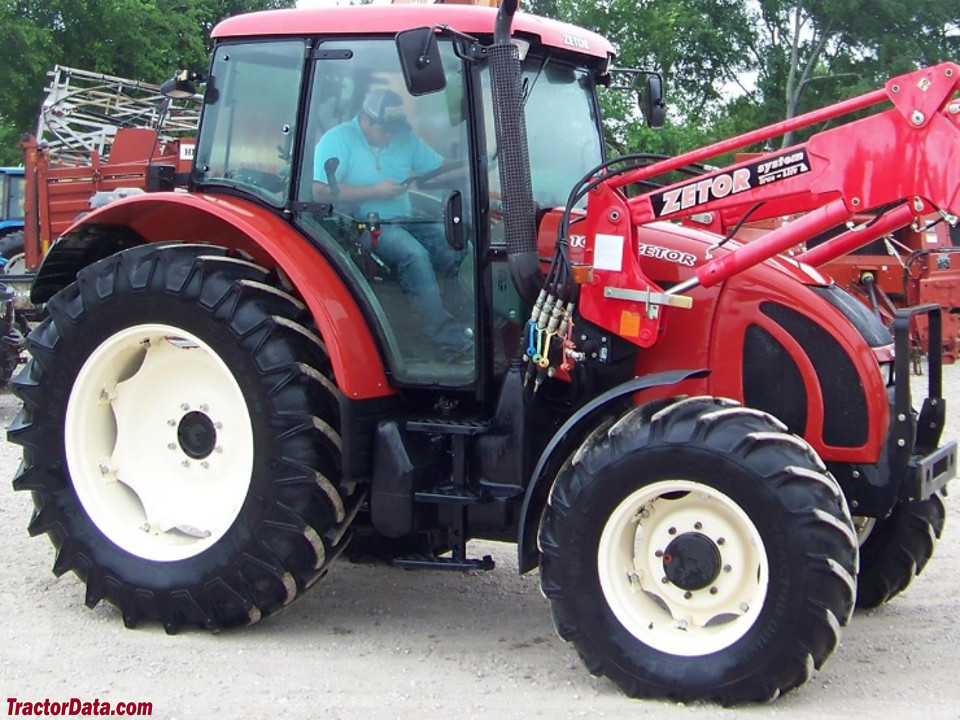

Zetor 10741
Zetor 10741 · 88 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
88 hp
Max power
69.2 kW
Weight
4309 kg
Hover a source tag to verify
Overview
ManufacturerZetorReference
Built in Brno, CzechoslovakiaReference
Four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockelectro-pneumatic rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Zetor 4.2L 4-cyl dieselReference
Fuel tank181.7 LReference
Engine75.3 kWReference
Drawbar (tested)54.2 kWReference
ZetorReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.2 LReference
Bore/Stroke105 x 120 mmReference
Power75.3 kWReference
Pre-heatingglow plugsReference
Pre-heatingblock heaterReference
Compression17.0:1Reference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Max power69.2 kWReference
Power at rated engine speed65.6 kWReference
Max power54.2 kWReference
Transmission
24-speed three-speed power shiftReference
Typethree-speed power shiftReference
Gears24 forward and 18 reverseReference
Clutch330.2mm hydraulic cerametallic discReference
Three power shift gears (1-3) in four gear sets (1-4) with a two-speed (low/high) range selector.Reference
PTO & Hydraulics
PTO (claimed)67.9 kWReference
PTO (tested)69.2 kWReference
Typeopen centerReference
Pressure186.2 barReference
Valves3Reference
Pump flow71.9 lpmReference
Total flow94.6 lpmReference
Steering flow22.7 lpmReference
Rear TypeII/IReference
Rear lift (at ends)4898 kgReference
Rear lift (at 24"/610mm)4218 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Power at rated PTO speed68.1 kWReference
Dimensions
Wheelbase238 cmReference
Weight4309 kgReference
Front tire14.9-24Reference
Rear tire18.4R-38Reference
Ag front14.9-24Reference
Ag rear18.4R-38Reference
Length431 cmReference
Width220 cmReference
Height (cab)276 cmReference
Ground clearance48 cmReference
Front tread171 to 203 cmReference
Rear tread157 to 180 cmReference
Zetor 10741 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps70Reference
Battery CCA800Reference
Battery volts12Reference
Attachment overview
Zetor 202SL loaderReference
Zetor 202SLX loaderReference
Test results
Diesel 24-speed 4WDMarch 1998 - June 1998, Link: OCED Tractor Test 1774 fileReference
PTO performanceReference
Fuel use22.3 l/hourReference
Fuel use22.0 l/hourReference
Fuel use20.8 l/hourReference
Drawbar performanceReference
Max pull3578 kgReference
Speeds
With 18.4R38 rear tires. Reverse speeds are 15% faster than forward.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
