Tractor · 1990Unverified

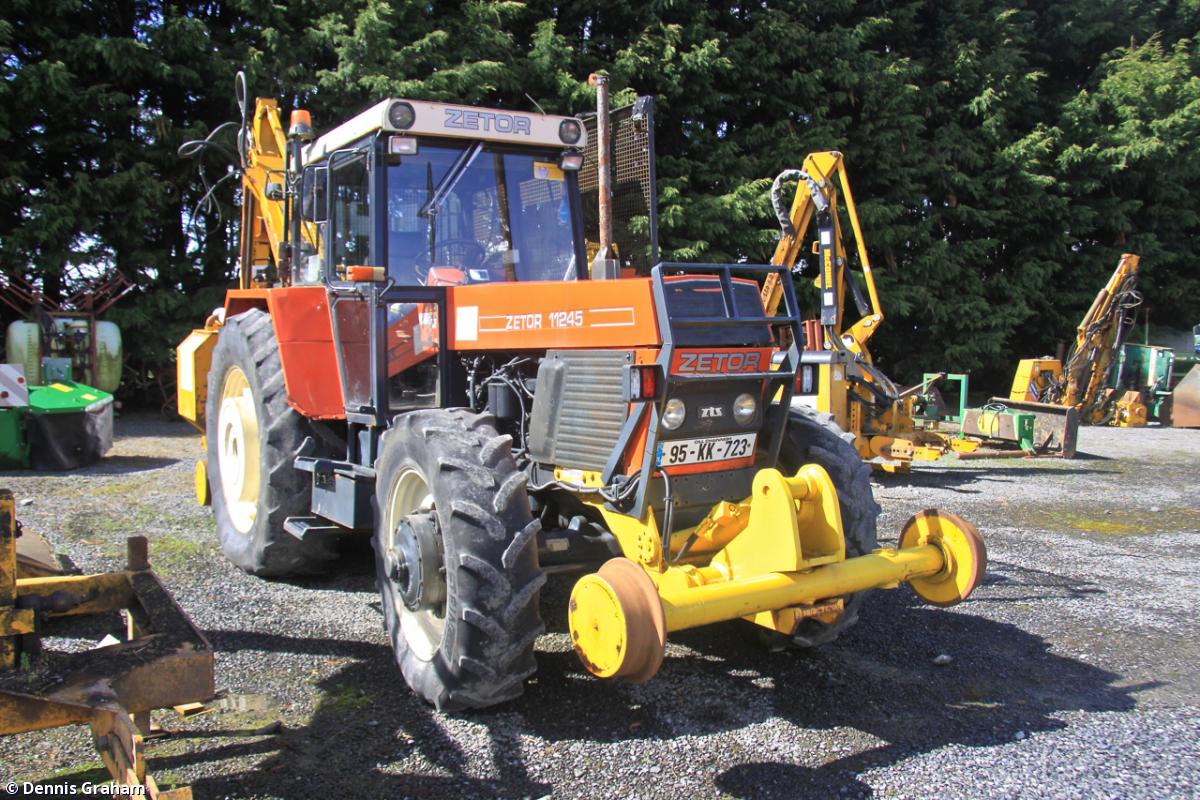

Zetor 11245

Name: Zetor 11245
Brand: Zetor

Zetor 11245 — Row-Crop tractor · 95 hp. Reference specifications; pending source verification.

The Zetor 11245 is a tractor model with a rated output of 95 hp, positioning it in the middle of its class for power. It was manufactured from 1990 to 1997 and features a 6-cylinder diesel liquid-cooled engine, which drives a four-wheel drive system via a 16-speed gearbox. The listed weight of the 11245 is 4819 kg, and it is designed for tasks of approximately 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

95 hp

Weight

4819 kg

Catalogue coverage

Variants represented

Richest spec table

51 rows

Recorded power

95 hp

Recorded weight

4819 kg

Transmissions

16-speed synchromesh

Production years

1990-1997

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerZetorReference

Row-Crop tractorReference

Built in Brno, CzechoslovakiaReference

Four-wheel driveReference

Power steeringReference

Hydraulic dry disc brakesReference

Trailer brakespneumaticReference

Trailer brakeshydraulicReference

Cab standard with heater.Reference

Variants

112112WDReference

112454WDReference

Engine

Zetor 6.8L 6-cyl dieselReference

Fuel tank129.8 LReference

Engine78.3 kWReference

Zetor Z 8701.13Reference

dieselReference

6-cylinderReference

liquid-cooledReference

Displacement6.8 LReference

Bore/Stroke110 x 120 mmReference

Power78.3 kWReference

Fuel systemdirect injectionReference

Rated RPM2200Reference

Starter typeelectricReference

Transmission

16-speed synchromeshReference

TypesynchromeshReference

Gears16 forward and 8 reverseReference

Clutch380mm hydraulic dry discReference

Four gears (1-4) in two ranges (low-high) with direct-drive and torque multiplier.Reference

PTO & Hydraulics

PTO (claimed)70.8 kWReference

Typeopen centerReference

Pressure188.9 barReference

Total flow46.9 lpmReference

Rear TypeIIReference

Rear lift3600 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Dimensions

Weight4819 kgReference

Front tire12.4x24Reference

Rear tire16.9x38Reference

Standard tires (ag)Front: 12.4x24. Rear: 16.9x38Reference

Length439 cmReference

Width195 cmReference

Height (cab)271 cmReference

Height (exhaust)288 cmReference

Ballasted weight5470 kgReference

Ground clearance38 cmReference

Rear tread150 to 187 cmReference

Electrical

Charging systemalternatorReference

Charging amps55Reference

Speeds

With 16.9x38 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
