Tractor · 2002Unverified

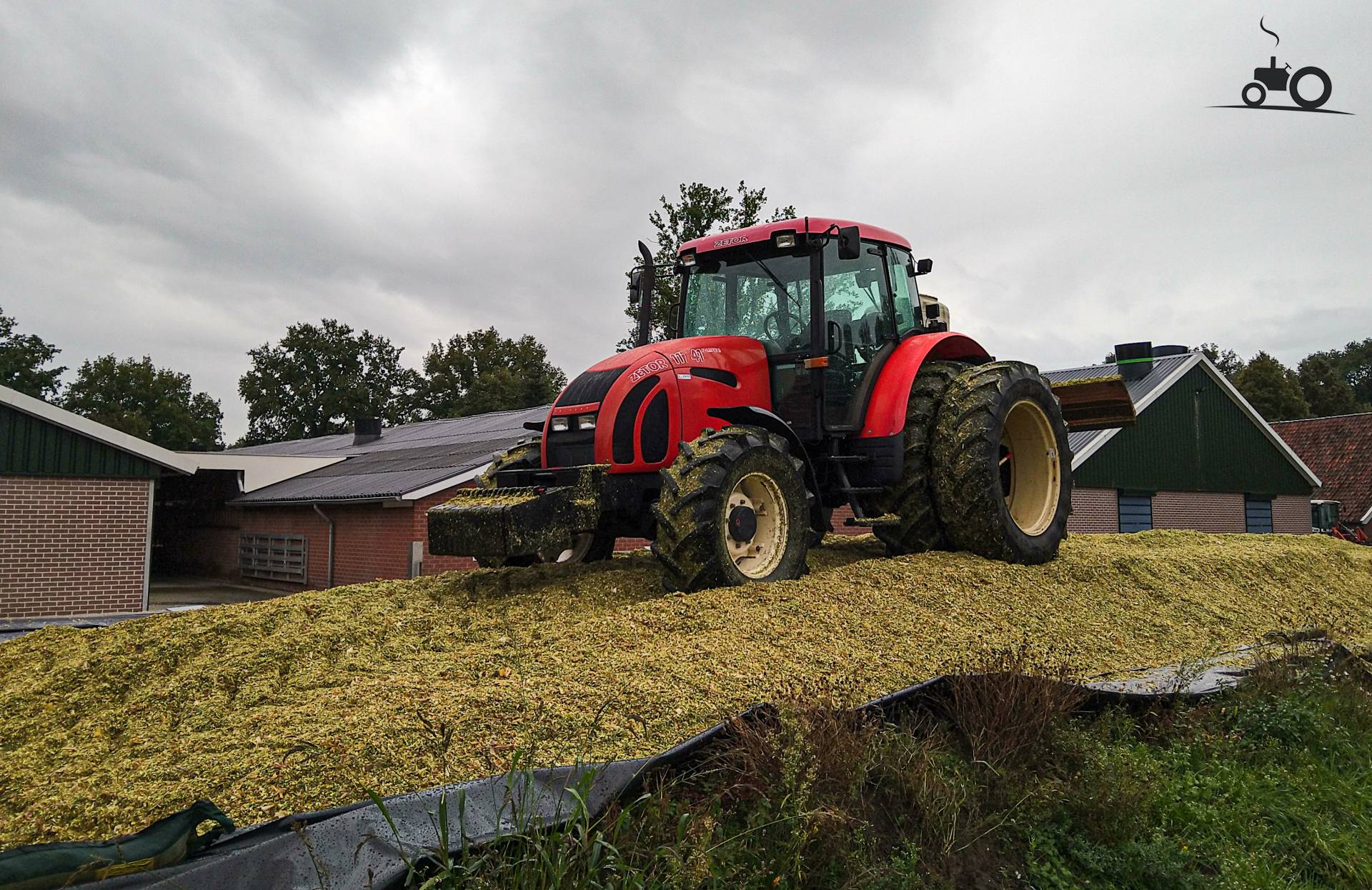

Zetor 11741
Zetor 11741 — Forterra Series · 120 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
120 hp
Weight
4696 kg
Hover a source tag to verify
Overview
ManufacturerZetorReference
Built in Brno, CzechoslovakiaReference
Four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockelectro-pneumatic rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Trailer brakespneumaticReference
Cab standard with available air-conditioning.Reference
Engine
SAME 6.0L 6-cyl dieselReference
Zetor 4.2L 4-cyl dieselReference
Fuel tank180.2 LReference
Engine89.5 kWReference
SAME 1000.6WTReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.0 LReference
Bore/Stroke105 x 116 mmReference
Power89.5 kWReference
Rated RPM2350Reference
Torque480.0 NmReference
Torque RPM1300Reference
StarterelectricReference
Starter volts12Reference
ZetorReference
4-cylinderReference
The 4-cylinder Zetor engine became available in 2004 on the 11741.Reference
Displacement4.2 LReference
Bore/Stroke105 x 120 mmReference
Power87.2 kWReference
Pre-heatingglow plugsReference
Pre-heatingblock heaterReference
Rated RPM2200Reference
Transmission
24-speed three-speed power shiftReference
Typethree-speed power shiftReference
Gears24 forward and 18 reverseReference
Clutchhydraulic dry discReference
Three power shift gears (1-3) in four gear sets (1-4) with a two-speed (low/high) range selector.Reference
PTO & Hydraulics
Typeopen centerReference
Pump flow59.0 lpmReference
Pump flow73.1 lpmReference
Steering flow22.7 lpmReference
Rear TypeII/IReference
Controlposition control and lower-link draft sensingReference
Rear lift5964 kgReference
Rear PTOindependentReference
Clutchwet discReference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
Wheelbase264 cmReference
Weight4696 kgReference
Front tire14.9-24Reference
Rear tire18.4-38Reference
Standard tires (ag)Front: 14.9-24. Rear: 18.4-38Reference
Length523 cmReference
Width219 cmReference
Height282 cmReference
Ground clearance46 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps70Reference
Battery CCA800Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
