Tractor · 1974Unverified

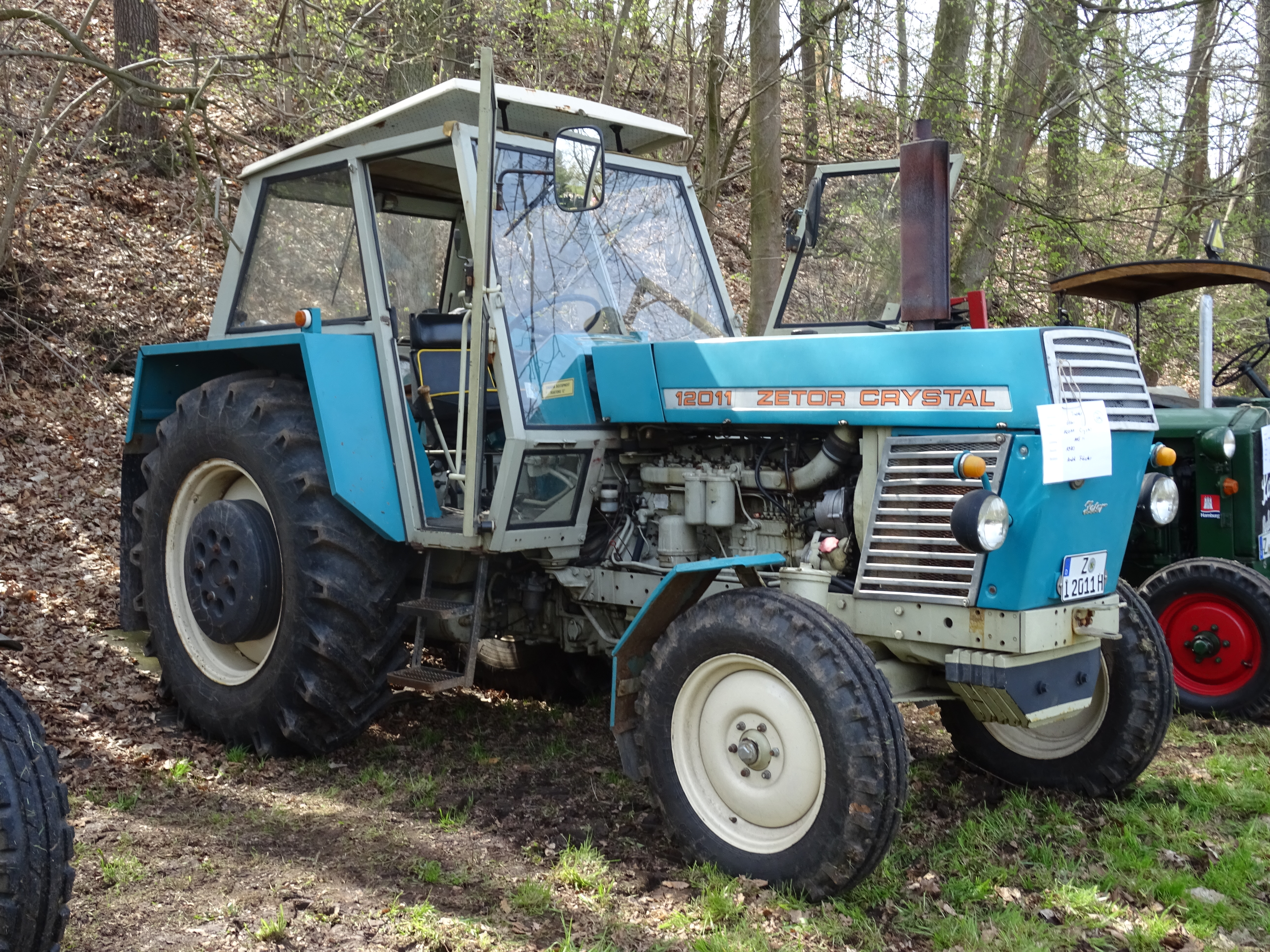

Zetor 12011
Zetor 12011 — Crystal UR2 Series · 120 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
120 hp
Weight
4100 kg
Hover a source tag to verify
Overview
ManufacturerZetorReference
Row-Crop tractorReference
Built in Brno, CzechoslovakiaReference
Two-wheel driveReference
Hydraulic dry disc brakesReference
Cab standard.Reference
Variants
120112WDReference
120454WDReference
Engine
Zetor 6.8L 6-cyl dieselReference
Fuel tank129.8 LReference
Engine89.5 kWReference
Zetor Z 8601Reference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.8 LReference
Bore/Stroke110 x 120 mmReference
Power89.5 kWReference
Fuel systemdirect injectionReference
Rated RPM2200Reference
Transmission
16-speedReference
Transmissionsynchro meshReference
Gears16 forward and 8 reverseReference
Four gears in two ranges with two-speed torque multiplier.Reference
PTO & Hydraulics
Typeopen centerReference
Valves1Reference
Pump flow31.8 lpmReference
Rear TypeIIReference
Controllower-link draft controlReference
Rear lift3400 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
Weight4100 kgReference
Front tire9.00-16Reference
Rear tire18.4-34Reference
Ag front9.00-16Reference
Ag rear18.4-34Reference
Length425 cmReference
Width196 cmReference
Height (cab)250 cmReference
Ballasted weight4907 kgReference
Ground clearance44 cmReference
Front tread135 to 180 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
