Tractor · 1990Unverified
Zetor 12211

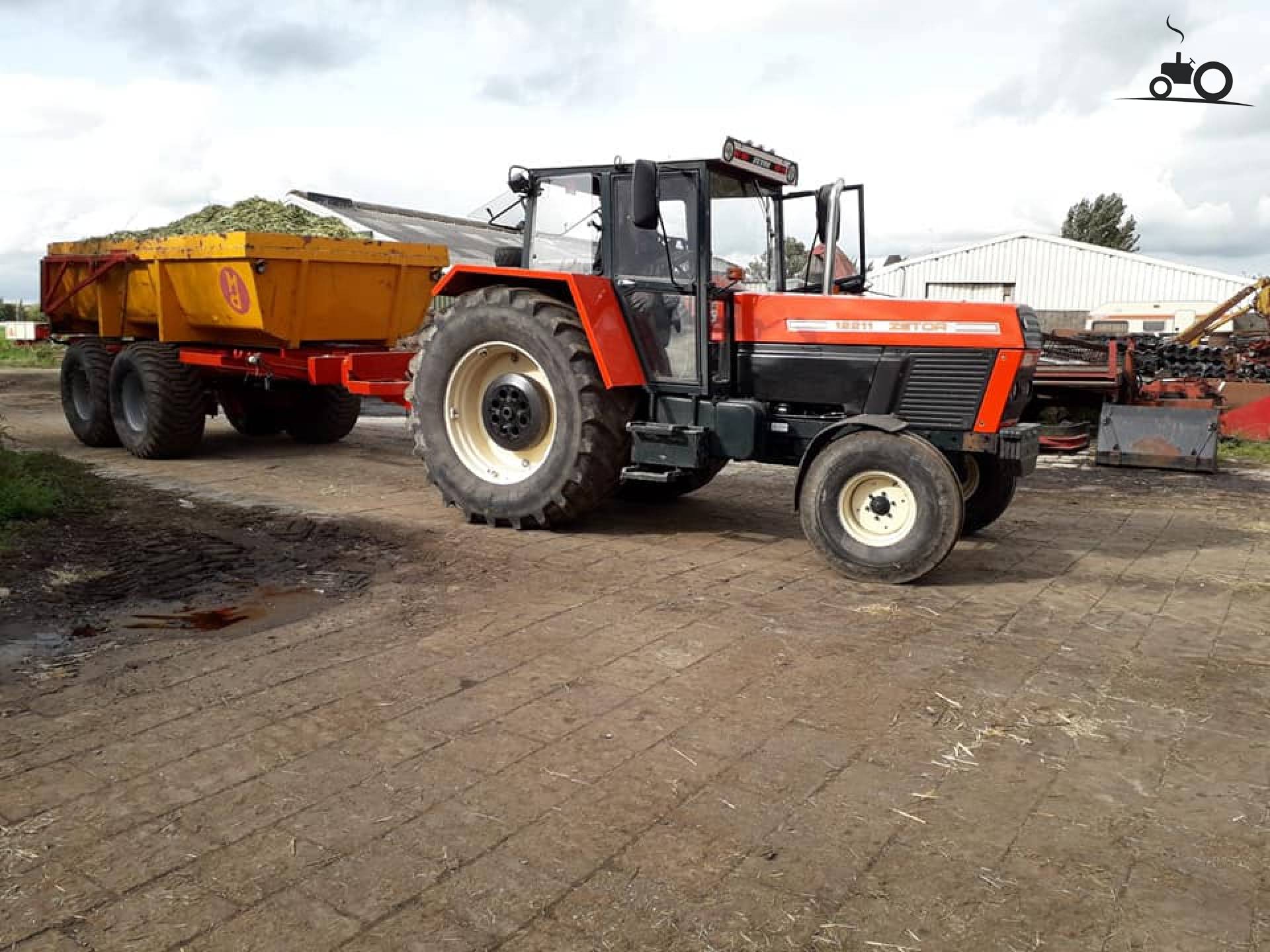

Zetor 12211 — Row-Crop tractor · 105 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
105 hp
Weight
4570 kg
Hover a source tag to verify
Overview
ManufacturerZetorReference
Row-Crop tractorReference
Built in Brno, CzechoslovakiaReference
Original price was $29,000 in 1992Reference
Two-wheel driveReference
Power steeringReference
Hydraulic dry disc brakesReference
Trailer brakespneumaticReference
Trailer brakeshydraulicReference
Cab standard with heater.Reference
Variants
122112WDReference
122454WDReference
Engine
Zetor 6.8L 6-cyl dieselReference
Fuel tank129.8 LReference
Engine89.5 kWReference
Zetor Z 8701.12Reference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.8 LReference
Bore/Stroke110 x 120 mmReference
Power89.5 kWReference
Fuel systemdirect injectionReference
Rated RPM2200Reference
Starter typeelectricReference
Coolant capacity22.7 LReference
Transmission
16-speed synchromeshReference
TypesynchromeshReference
Gears16 forward and 8 reverseReference
Clutch380mm mechanical dry discReference
Four gears (1-4) in two ranges (low-high) with direct-drive and torque multiplier.Reference
PTO & Hydraulics
PTO (claimed)78.3 kWReference
Typeopen centerReference
Pressure193.1 barReference
Valves2Reference
Total flow46.9 lpmReference
Rear TypeIIReference
Rear lift3923 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase269 cmReference
Weight4570 kgReference
Front tire11.5x15Reference
Rear tire18.4x38Reference
Standard tires (ag)Front: 11.5x15. Rear: 18.4x38Reference
Length439 cmReference
Width195 cmReference
Height (cab)271 cmReference
Height (exhaust)283 cmReference
Ballasted weight5220 kgReference
Ground clearance41 cmReference
Front tread135 to 180 cmReference
Rear tread150 to 187 cmReference
Electrical
Charging systemalternatorReference
Charging amps55Reference
Speeds
With 18.4x38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
