Tractor · 1990Unverified

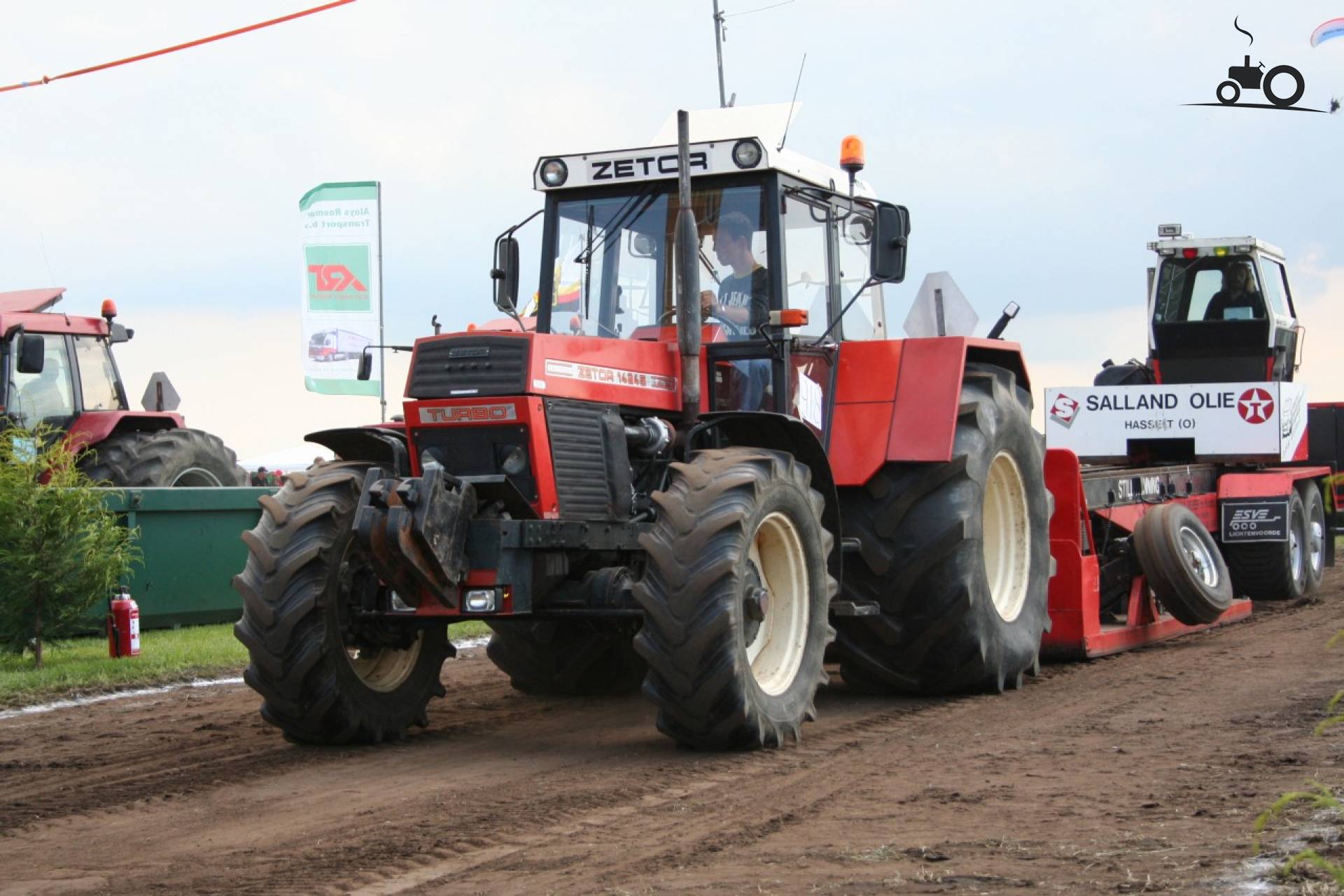

Zetor 14245
Zetor 14245 — Row-Crop tractor · 125 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
125 hp
Weight
5062 kg
Hover a source tag to verify
Overview
ManufacturerZetorReference
Row-Crop tractorReference
Built in Brno, CzechoslovakiaReference
Four-wheel driveReference
Power steeringReference
Hydraulic dry disc brakesReference
Cab standard with heat. Air-conditioning optional.Reference
Engine
Zetor 6.8L 6-cyl dieselReference
Engine104.4 kWReference
Zetor Z 8602.13Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.8 LReference
Bore/Stroke110 x 120 mmReference
Power104.4 kWReference
Rated RPM2200Reference
Starter typeelectricReference
Transmission
16-speed synchromeshReference
TypesynchromeshReference
Gears16 forward and 8 reverseReference
Clutch380mm hydraulic dry discReference
Four gears (1-4) in two ranges (low-high) with direct-drive and torque multiplier.Reference
PTO & Hydraulics
PTO (claimed)93.2 kWReference
Typeopen centerReference
Pressure189.0 barReference
Total flow42.0 lpmReference
Rear TypeIIReference
Rear lift4998 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
Weight5062 kgReference
Front tire14.9x24Reference
Rear tire18.4x38Reference
Standard tires (ag)Front: 14.9x24. Rear: 18.4x38Reference
Length466 cmReference
Width218 cmReference
Height (cab)273 cmReference
Height (exhaust)290 cmReference
Ballasted weight6282 kgReference
Ground clearance38 cmReference
Rear tread150 to 187 cmReference
Electrical
Charging systemalternatorReference
Charging amps55Reference
Speeds
With 18.4x34 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
