Tractor · 1947Unverified

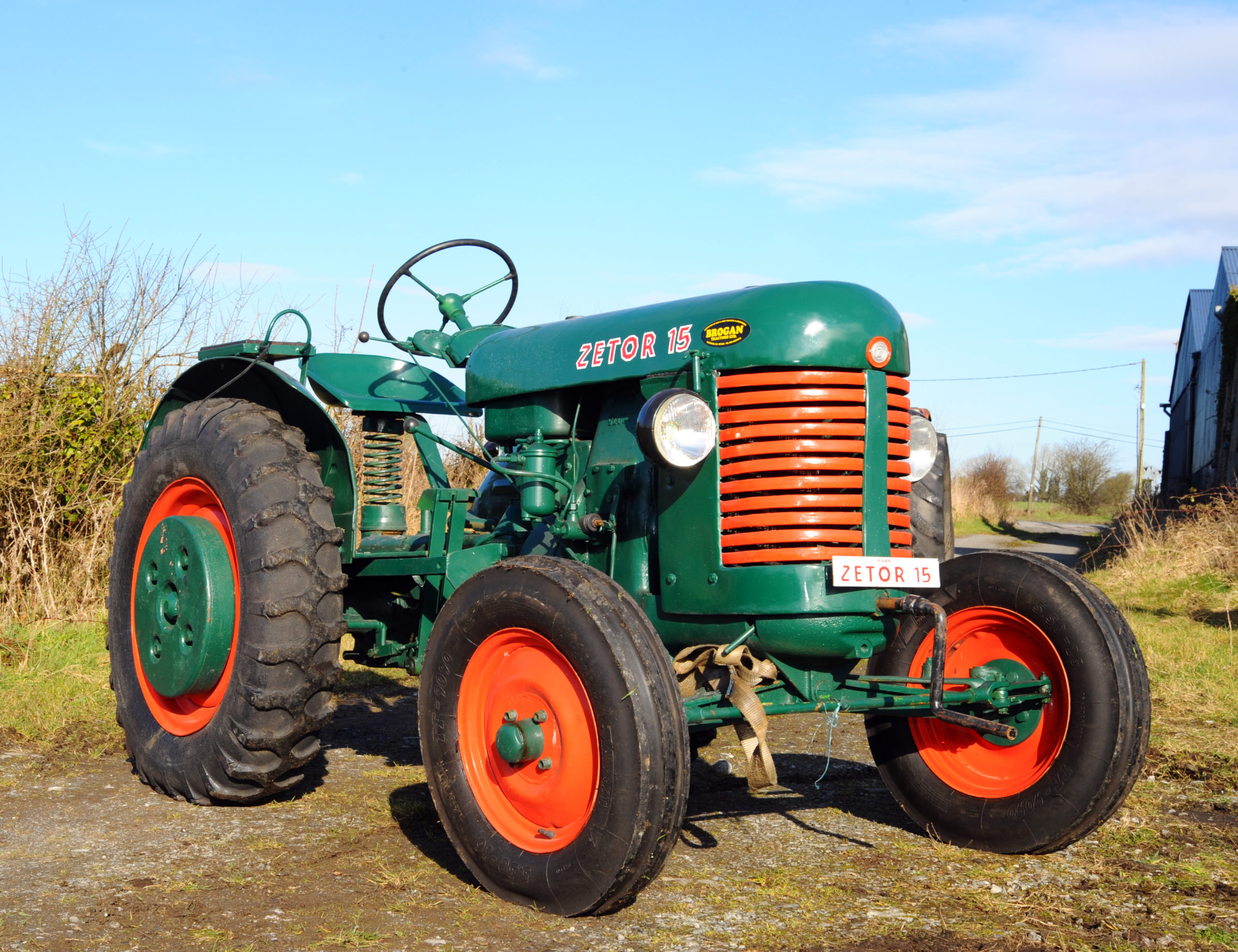

Zetor 15
Zetor 15 · 15 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
15 hp
Weight
1399 kg
Hover a source tag to verify
Overview
ManufacturerZetorReference
Built in Brno, CzechoslovakiaReference
Total built2,215Reference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Engine
Zetor 1.6L 1-cyl dieselReference
Engine11.2 kWReference
ZetorReference
dieselReference
1-cylinderReference
liquid-cooledReference
Displacement1.6 LReference
Bore/Stroke120 x 140 mmReference
Power11.2 kWReference
Rated RPM1500Reference
Starter volts6Reference
Transmission
5-speed gearReference
TypegearReference
Gears5 forward and 1 reverseReference
Clutchdry discReference
PTO & Hydraulics
Rear PTOliveReference
Rear PTO Type540Reference
Dimensions
Wheelbase155 cmReference
Weight1399 kgReference
Front tire5.50-16Reference
Rear tire9-24Reference
Ag front5.50-16Reference
Ag rear9-24Reference
Length270 cmReference
Width151 cmReference
Height (steering wheel)154 cmReference
Front tread127 to 143 cmReference
Rear tread127 to 143 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
